BYD Atto 3 2023 Fuse Box Info

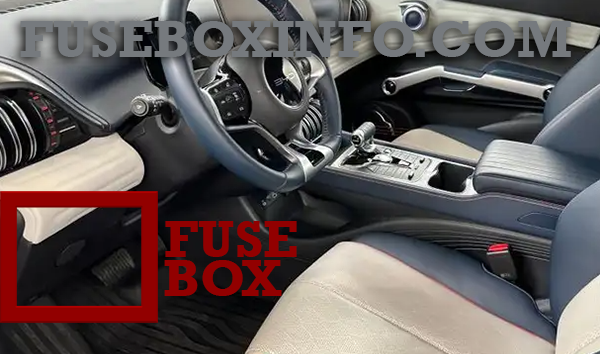

Passenger compartment fuse box location:
The fuse box is located on the left side of the dashboard.

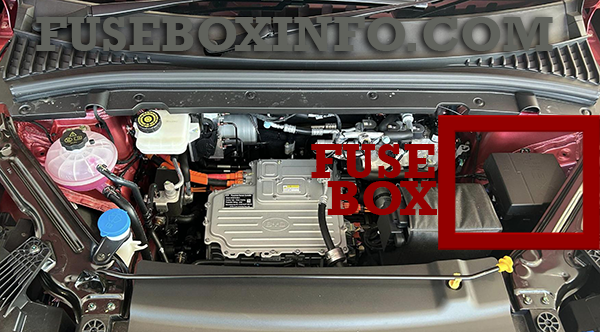

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 30A | Rear body controller |
| 02 | - | - |
| 03 | 7.5A | Thermal management integrated module |
| 04 | 10A | Diagnostic port |
| 05 | 5A | Instrument cluster |
| 06 | 5A | High-frequency receiving module |
| 07 | 5A | Shift panel |
| 08 | 20A | Infotainment system |
| 09 | 15A | External power amplifier |
| 10 | 5A | ADAS |
| 11 | 7.5A | Combination switch |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | 15A | On-board charger |
| 18 | - | - |
| 19 | 30A | Rear body controller |
| 20 | 30A | Rear body controller |
| 21 | 30A | Front left |
| 22 | 30A | Front right |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 60A | PTC3 |
| F2 | - | - |
| F3 | - | - |
| F4 | - | - |
| F5 | - | - |
| F6 | - | - |
| F7 | - | - |
| F8 | - | - |
| F9 | 15A | High-voltage all-in-one |
| F10 | - | - |
| F11 | - | - |
| F12 | 7.5A | Electric compressor |
| F13 | - | - |
| F14 | - | - |
| F15 | 5A | Brake light switch |
| F16 | 60A | PTC2 |
| F17 | - | - |
| F18 | 30A | PTC1 |
| F19 | - | - |
| F20 | 30A | Rear windshield defroster |
| F21 | 30A | Front wipers |
| F22 | - | - |
| F23 | 15A | Auxiliary power outlet |
| F24 | 15A | USB |
| F25 | 10A | USB |
| F26 | - | - |
| F27 | 15A | Auxiliary power outlet |
| F28 | 15A | USB |
| F29 | - | - |
| F30 | 60A | ESC |
| F31 | - | - |
| F32 | - | - |
| F33 | 15A | High-voltage all-in-one |
| F34 | - | - |
| F35 | 5A | Rear body controller |
| F36 | - | - |
| F37 | 7.5A | ETC |
| F38 | 10A | SRS |
| F39 | 5A | ADAS |
| F40 | - | - |
| F41 | 5A | EPS |
| F42 | 5A | ESC |
| F43 | - | - |
| F44 | 60A | ESC |
| F45 | 40A | Blower |
| F46 | - | - |
| F47 | - | - |
| F48 | 10A | Rear wiper |
| F49 | 200A | Batteries |
| F50 | 70A | C-EPS |
| F51 | - | - |
| F52 | - | - |
| F53 | 60A | Electric fan |
