Alfa Romeo Tonale 2024 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the driver’s side lower instrument panel.

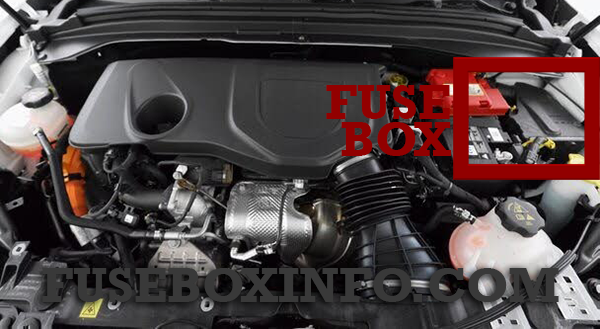

Engine compartment fuse box location:

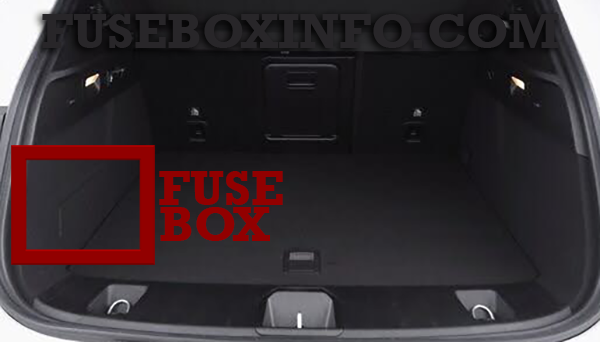

Luggage compartment fuse box location - If Equipped:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 31 | 7.5A | HVAC relay coil / Power Outlet / Seats Movement Relay Coil |
| 33 | 20A | Front Passenger Window Lifter |
| 34 | 20A | Front Driver Window Lifter |
| 36 | 15A | HVAC / VTA / External Mirror /Ceiling Light / CVPM / Radio Mod / USB / AUX/ DCSD / Electric Steering Lock |
| 37 | 10A | Brake Switch / DASM / IPC |
| 38 | 20A | Central Door Lock / Doors Unlock / Decklid / Liftgate |
| 42 | 7.5A | BSM / EPS |
| 43 | 20A | Bi-Directional Washer Pump |
| 47 | 20A | Rear Left Window Lifter |
| 48 | 20A | Rear Right Window Lifter |
| 49 | 7.5A | PAM / RLS / Power Internal Mirror / Heated Seats Relay Coil / USB Charger / WCPM / DTV / ESL / HCPM |
| 50 | 7.5A | Occupant Restraint Controller |
| 51 | 7.5A | HCP / Reverse Gear / Filter Diesel SNSR / A/C Compressor / HVAC / Defrosting / Right Head lamp Leveling / Left Headlamp Leveling / LDW / Alarm Mod / Airbag Psg / PIM / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM / Headlamp Leveling |
| 53 | 7.5A | ALU / EPB / BrakePedalSW NO / EMCM / TBM / DSCM / IPC |
| 94 | 15A | Power Outlet |
Engine compartment fuse box - Gasoline Engine:
| Fuse/Relay N° | Rating | Functions |
| F01 | 70A | BCM1 |
| F02 | 70A | BCM2 / RDU |
| F03 | 20A | BCM3 |
| F04 | 40A | BCM Valves |
| F05 | 40A | PTC 1 |
| F06 | 20A | Front Wiper Motor |
| F07 | 20A | DTCM |
| F08 | 30A | Power Supply F24 - F87 - Fxx |
| F09 | 7.5A | ECM T09 |
| F10 | 15A | Horn |
| F11 | 5A | Engine Secondary Loads |
| F14 | 7.5A | LTR |
| F15 | 40A | BSM Pump |
| F16 | 10A | ECM / TCM / AGSM |
| F17 | 10A | ECM |
| F18 | - | Spare |
| F19 | 7.5A | A/C Compressor |
| F20 | 15A | RR Cargo Power Outlet |
| F21 | 20A | Fuel Pump |
| F22 | 15A | ECM |
| F23 | 5A | USB / Aux Outlet |
| F24 | 10A | DTCM |
| F30 | 5A | AWD DTCM |
| F81 | 30A | Brake Booster Vacuum Pump |
| F82 | - | Spare |
| F83 | 40A | HVAC Fan |
| F84 | 7.5A | Rad Fan Enable |
| F87 | 5A | AGSM |
| F88 | 7.5A | Heated Mirrors & Washer Nozzle |
| F89 | 30A | Rear Window Defrost |
| F90 | 5A | Intelligent Battery Sensor |
| T02 | - | Not Used |
| T03 | 30A | Horn |
| T05 | 30A | A/C Compressor |
| T06 | 30A | Rad Fan Enable |
| T08 | 30A | HVAC Fan |
| T10 | - | Not Used |
| T14 | 30A | RR Cargo Power Outlet |
| T19 | - | Not Used |
| T20 | 30A | Starter Relay R1 |
| T31 | 30A | Fuel Pump |
| T89 | - | Not Used |
| T90 | 30A | Brake Booster Vacuum Pump |
Engine compartment fuse box - Hybrid:
| Fuse/Relay N° | Rating | Functions |
| F01 | 70A | BCM1 |
| F02 | 70A | BCM2 / RDU |
| F03 | 20A | BCM3 |
| F04 | 40A | BCM Valves |
| F05 | 40A | PTC 1 |
| F06 | 20A | Front Wiper Motor |
| F07 | 50A | AUX 1 RDU |
| F08 | 30A | Power Supply F24 - F87 - Fxx |
| F09 | 7.5A | ECM T09 |
| F10 | 15A | Horn |
| F11 | 5A | Engine Secondary Loads |
| F14 | - | Spare |
| F15 | 40A | BSM Pump |
| F16 | 10A | ECM / TCM / AGSM |
| F17 | 10A | GPF - HV Fuel lid - HV Fuel Tank Isolation Valve |
| F18 | - | Spare |
| F19 | 7.5A | A/C Compressor |
| F20 | 15A | RR Cargo Power Outlet |
| F21 | 20A | Fuel Pump |
| F22 | 20A | Engine Primary Loads |
| F23 | 5A | AGS/ USB / Aux Outlet |
| F24 | 10A | TCM |
| F30 | - | Spare |
| F81 | 40A | AUX 2 RDU |
| F82 | 40A | External Oil Pump (AT) |
| F83 | 40A | HVAC Fan |
| F84 | - | Spare |
| F87 | 5A | AGSM |
| F88 | 7.5A | Heated Mirrors & Washer Nozzle |
| F89 | 30A | Rear Window Defrost |
| F90 | 5A | Intelligent Battery Sensor |
| Fxx | 25A | EPT_PIM_Feed_2 |
| T02 | - | Not Used |
| T03 | 30A | Horn |
| T05 | 30A | A/C Compressor |
| T06 | 30A | Rad Fan Enable |
| T07 | 50A | Aux.1 |
| T08 | 30A | HVAC Fan |
| T09 | 30A | Engine Main Relay |
| T10 | - | Not Used |
| T14 | 30A | Rear Cargo Power Outlet |
| T17 | 30A | Rear Window Defrost/Heated Mirrors |
| T19 | 30A | External Oil Pump |
| T20 | 30A | Starter Relay R1 |
| T31 | 30A | Fuel Pump |
| T89 | - | Not Used |
| T90 | 30A | Brake Booster Vacuum Pump |
Supplemental Fuse Box - Hybrid:
| Fuse/Relay N° | Rating | Functions |
| 01 | 5A | Electric Air Heater (EAH) |
| 02 | 7.5A | Electric Air Compressor (EAC) |
| 03 | 5A | Integrated Dual Charge Module (IDCM) |
| 04 | 5A | Charge Port Indicator Module (CPIM) |
| 05 | 15A | Power Electronic Coolant Pump 2 (PECP2) |
| 06 | 15A | Power Electronic Coolant Pump (PECP) |
| 07 | 5A | Aux Heater Pump (AHP) |
| 08 | 5A | PIM Feed 1 |
| 09 | 10A | BPCM Feed 1 |
| 10 | 5A | PIM Feed 3 |
| 11 | 10A | BPCM Feed 2 |
| 12 | 5A | Electronic Pedestrian Protection Module (EPPM) |
Luggage compartment fuse box - If Equipped:
| Fuse/Relay N° | Rating | Functions |
| Fuse Holder No. 1 | ||
| 1 | 20A | Sunroof* |
| 2 | - | - |
| 3 | 30A | Power Liftgate Module (PLGM) |
| 4 | 5A | Driver And Passenger Ventilated Seats (HMSM*) |
| 5 | 25A | Heating And Memory Drive Seat Module 1 |
| 6 | 10A | Heating And Memory Drive Seat Module 2 |
| 7 | 7.5A | Driver And Passenger Lumbar Regulator (Without HMSM) |
| 8 | 20A | Passenger Seat SW (HMSM*) |
| Fuse Holder No. 2 | ||
| 3 | 5A | Hands-Free Power Liftgate (HFRM) |
| 4 | 7.5A | Damping Control Module |
| 5 | 5A | Changeover Valve Feed (ELCM) |
| 8 | 7.5A | Damping Control Module |
| Maxi Fuse | ||
| 01 | 30A | Amplifier* |
* If Equipped
