Proton X50 2022 Fuse Box Info

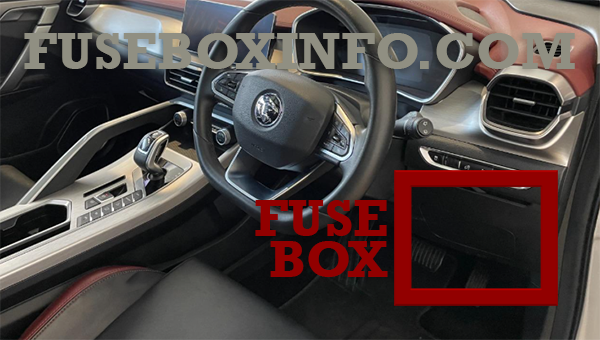

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IF01 | 30A | EXT fuse |
| IF02 | 30A | INT fuse |
| IF03 | 10A | RR WIPER fuse |
| IF04 | 10A | LIGHT/HPS/BCM/IMMO fuse |
| IF05 | 20A | LOCKING fuse |
| IF06 | 10A | OBD fuse |
| IF07 | 10A | FCS/RLS/DVR/SOLAR fuse |
| IF08 | 5A | GW fuse |
| IF09 | 5A | DISPLAY fuse |
| IF10 | 5A | CLOCK SPRING |
| IF11 | 20A | MARITIME (Memory) fuse |
| IF12 | 10A | BLOWER fuse |
| IF13 | 15A | WASHER fuse |
| IF17 | 10A | BCM/MMI/IRVM/DVR/ACC fuse |
| IF18 | 20A | FRONT SPARE BATERY fuse |
| IF20 | 10A | AC/EGSM/GW/BSG/EPB fuse |
| IF21 | 5A | ACU fuse |
| IF22 | 10A | IPK/BCM/T-BOX/TCM fuse |
| IF23 | 10A | UEC fuse |
| IF24 | 10A | FRS fuse |
| IF30 | 10A | IPK/HVAC fuse |
| IF32 | 15A | MMI fuse |
| SB01 | 30A | POWER SEAT fuse |
| SB02 | 30A | SUNROOF fuse |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| MF01 | 80A | EPS fuse |
| MF02 | 150A | ALT fuse |
| SB01 | 60A | IP BOX B+ fuse |
| SB02 | 40A | ESC & EPB VALVE fuse |
| SB03 | 50A | ESC&EPB MODULE fuse |
| SB04 | 30A | 7DCT1 fuse |
| SB05 | 30A | START fuse |
| SB06 | 30A | 7DCT2 fuse |
| SB07 | 60A | IP BOX ALT+ fuse |
| SB08 | 40A | LOW FAN fuse |
| SB10 | 30A | FRONT BLOWER fuse |
| SB11 | 30A | PWR WIN RH&RL fuse |
| SB12 | 50A | HIGH FAN fuse |
| SB13 | 30A | PWR WIN LH&RH |
| SB14 | 30A | REAR DEFOG fuse |
| EF01 | 30A | 7DCT3 fuse |
| EF02 | 30A | 7DCT4 fuse |
| EF03 | 10A | EMS fuse (JLH_3G15T model) |
| EF04 | 5A | BRK SW fuse |
| EF06 | 20A | FUEL PUMP fuse |
| EF07 | 15A | HORN fuse |
| EF08 | 15A | VALVE & SENSOR fuse |
| EF09 | 15A | OXYGEN SENSOR fuse |
| EF10 | 15A | INGITION COIL fuse |
| EF11 | 25A | EMS fuse |
| EF12 | 10A | Fan, compressor, fuel pump, starter relay fuse |
| EF13 | 10A | Start-stop feed back signal fuse |
| EF14 | 10A | Starter relay 2 fuse |
| EF15 | 15A | 1.5T INJECTOR fuse |
| EF18 | 10A | BRK SW&ESC&EPB fuse |
| EF19 | 10A | EMS&TCU fuse |
| EF20 | 10A | EPS fuse |
| EF22 | 10A | Left front low beam fuse |
| EF23 | 10A | Right front low beam fuse |
| EF24 | 10A | Left high beam fuse |
| EF25 | 10A | Right high beam fuse |
| EF26 | 15A | A/C CLUTCH fuse |
| EF27 | 10A | FL FOG LAMP fuse |
| EF28 | 20A | FRONT WIPER fuse |
| EF29 | 10A | EGSM&360 CAMERA&TRUNK LP&EPB LED fuse |
| EF30 | 10A | FR FOG LAMP fuse |
| EF33 | 5A | IBS fuse |
