Abarth Grande Punto 2010 Fuse Box Info

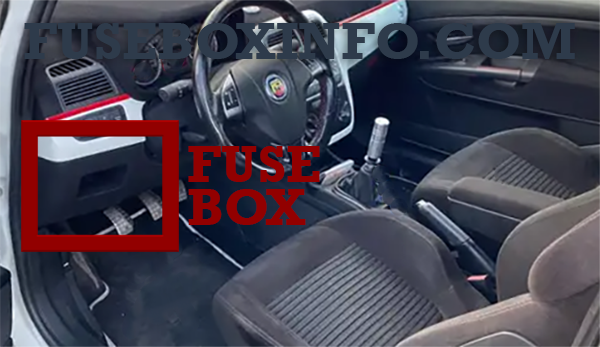

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

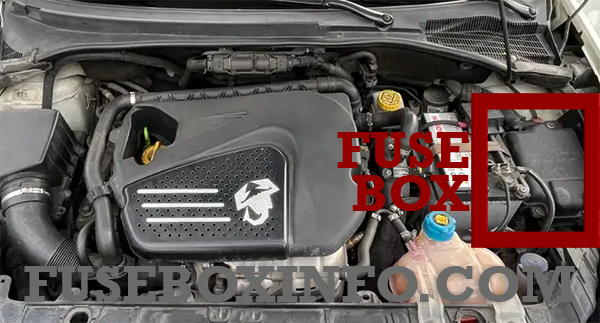

Engine compartment fuse box location:

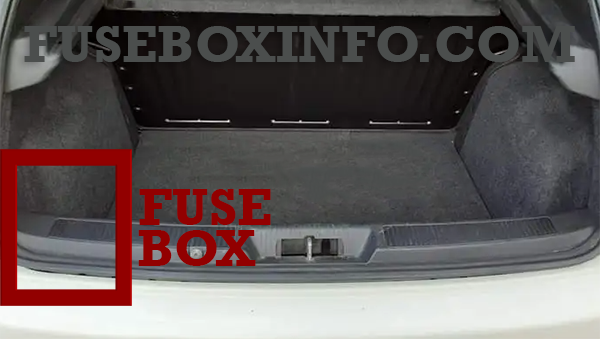

Luggage compartment fuse box location:
Fuse Box Diagram | Layout

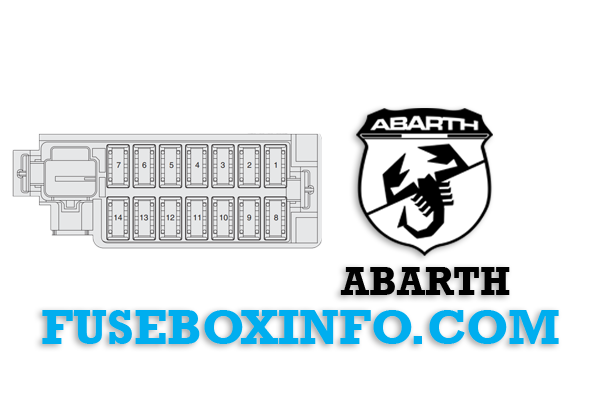

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Right dipped headlamp |
| 2 | 5A | Front courtesy light, lights in visors, luggage compartment light |
| 3 | 5A | Instrument panel |
| 4 | 20A | Door locking/unlocking motors, dead lock activation motors, tailgate unlocking motor |
| 5 | 10A | + battery power supply for EOBD diagnostic socket, automatic climate control system control unit, alarm siren, car radio, convergence control unit, tyre monitoring control unit |
| 6 | 20A | Windscreen/rearscreen washer pump |
| 7 | 20A | Electric window motor on passenger side front door |
| 8 | 7.5A | Left dipped headlamp, headlamp alignment corrector |
| 9 | 7.5A | Air Bag control unit |
| 10 | 5A | INT power supply for switch on brake pedal (NC contact), switch on clutch pedal, interior heater unit, convergence control unit, car radio preparation system |
| 11 | 5A | INT power supply for instrument panel, switch on brake pedal (N.O. contact), third brake light |
| 12 | 5A | INT power supply for control panel lighting, parking control unit, tyre pressure monitoring control unit, electric door mirrors movement, rain sensor, electric roof control unit, by-port infotelematic socket |
| 13 | 5A | INT/A power supply for relay coils in engine fuse junction unit and relay coils in body computer control unit |
| 14 | 20A | Electric window motor on driver’s front door |

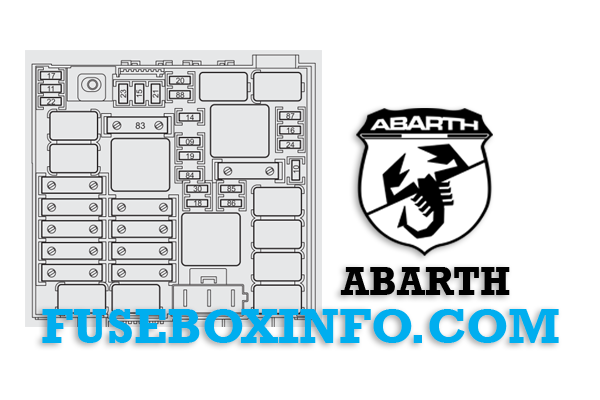

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 09 | 20A | Headlamp washer pump |
| 10 | 10A | Single tone horn |
| 11 | 10A | Engine management system secondary loads |
| 14 | 15A | Left main beam headlamp, right main beam headlamp |
| 15 | 30A | PTC1 additional heater |
| 16 | 5A | Engine management control unit, engine management system management relay |
| 17 | 10A | Engine management control unit (power supply) |
| 18 | 5A | Engine management control unit, engine management system management relay |
| 19 | 7.5A | Air conditioning compressor |
| 20 | 30A | Heated rear windscreen |
| 21 | 15A | Electric fuel pump on tank |
| 22 | 10A | Fire engine control system primary loads (coils and injectors) |
| 23 | 20A | BSM braking system control unit (control unit and solenoid valves) |
| 24 | 5A | ESP electric steering system control unit (+ignition power supply), NFR braking system control unit (+ignition power supply), yaw sensor on tunnel |
| 30 | 15A | Left fog light, right fog light |
| 84 | - | Spare |
| 85 | - | Current socket (preparation) |
| 86 | 15A | Passenger compartment, cigar lighter current socket |
| 87 | 5A | Reversing light, relay coils on engine fuse junction unit |
| 88 | 7.5A | Defroster on driver’s door mirror, defroster on passenger side door mirror |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | - | Spare |
| 04 | 10A | Driver’s front seat electric lumbar movement |
| 05 | 15A | Current socket in luggage compartment |
| 06 | - | Spare |
| 07 | - | Tow hook system (housing for fitting fuse in aftermarket) |
| 08 | 10A | Driver's front seat heater pad |
| 09 | 10A | Passenger side front seat heater pad |
| 10 | - | Spare |
| 11 | - | Spare |
| 13 | 5A | TPMS tyre pressure monitoring system control unit |
| 14 | 7.5A | Alarm system management control unit |
| 15 | 15A | Branded HI FI system audio amplifier control unit |
| 16 | 10A | Subwoofer speaker in rear panel, right side |
| 17 | 20A | Electric sun roof opening system |
