Acura Integra 2000 Fuse Box Info

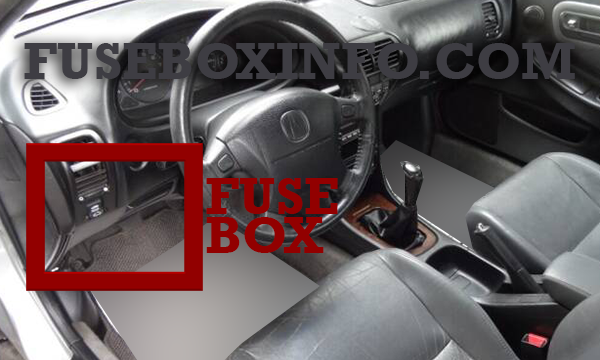

Passenger compartment fuse box location:
The fuse box is located underneath the dashboard on the driver's side, behind the cover.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Inter Lock Unit |
| 2 | 10A | Licence Plate Light, Taillight |
| 3 | 7.5A | Starter Signal |
| 4 | 7.5A | Instrument Panel Light |
| 5 | - | Not Used |
| 6 | 10A | Radio |
| 7 | 10A | Cigarette Lighter |
| 8 | 20A | Front Wiper, Front Washer |
| 9 | 7.5A | Meter |
| 10 | 7.5A | Power Window Relay, Moonroof Relay |
| 11 | 10A | SRS |
| 12 | - | Spare |
| 13 | 10A | Left Headlight Low Beam |
| 14 | 10A | Right Headlight Low Beam |
| 15 | - | Not Used |
| 16 | 7.5A | Back-up Light |
| 17 | - | Not Used |
| 18 | 7.5A | Heater A/C Relay |
| 19 | 7.5A | Rear Defroster Relay |
| 20 | 7.5A | Alternator, Speed Sensor |
| 21 | 7.5A | Cruise Control |
| 22 | 15A | Fuel Pump, SRS Unit |
| 23 | 10A | Turn Signal Light |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | - | Spare |
| 27 | 20A | Front Left Power Window |
| 28 | 20A | Front Right Power Window |
| 29 | 15A | Ignition Coil |
| 30 | 20A | Rear Right Power Window |
| 31 | 20A | Rear Left Power Window |
| 32 | - | Not Used |
| 33 | 10A | Left Headlight High Beam |
| 34 | 10A | Right Headlight High Beam |
| 35 | - | Not Used |
| 36 | - | Not Used |
| 37 | 20A | Power Door Lock |
| 38 | - | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 100A | Battery |
| 2 | 40A | Ignition 1 |
| 3 | - | Not Used |
| 4 | 40A | Power Window |
| 5 | 30A | Headlight |
| 6 | 30A | Door Lock, Moonroof |
| 7 | 40A | Rear Defroster |
| 8 | 40A | Option |
| 9 | 40A | Heater Motor |
| 10 | 7.5A | Interior Light |
| 11 | 15A | FI E/M (ECM) |
| 12 | 7.5A | Back Up, Radio |
| 13 | 15A | Small Light |
| 14 | 20A | Magnetic Clutch (A/C), Condenser Fan (A/C) |
| 15 | 20A | Cooling Fan |
| 16 | 20A | Horn, Stop Light |
| 17 | 10A | Hazard |
Engine compartment fuse box (ABS fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | ABS Motor |
| 2 | 20A | ABS B1 |
| 3 | 15A | ABS B2 |
| 4 | 10A | ABS Unit |
