Aston Martin DBX 2021 Fuse Box Info

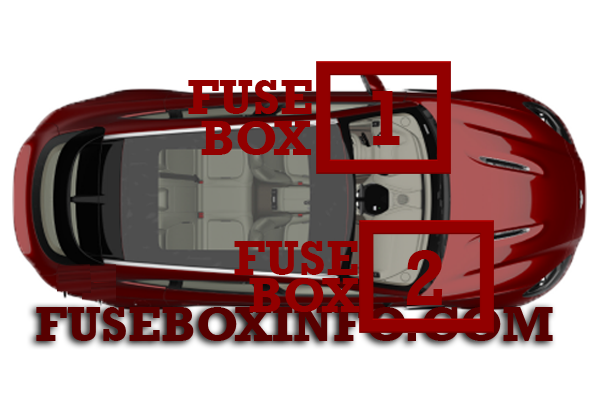

Cabin compartment fuse box location:

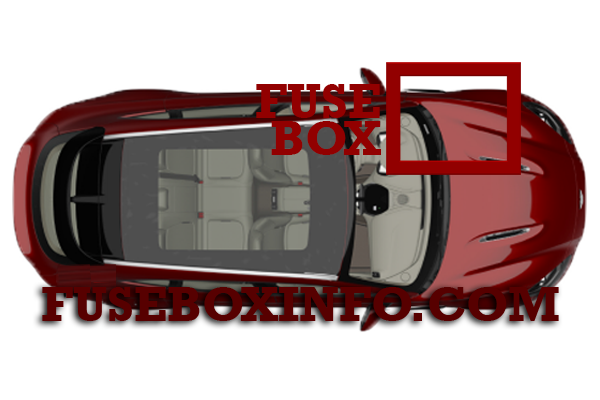

Engine compartment fuse box location:

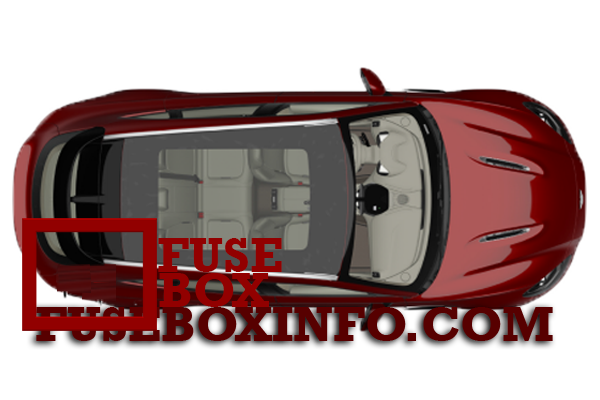

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Cabin compartment fuse box 1 (Fuse panel D):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel D | ||
| 1 | - | - |
| 2 | 15A | Steering Column Control Module SCCM |
| 3 | 5A | - |
| 4 | 7.5A | SCCM |
| 5 | 15A | HVAC |
| 6 | 10A | OBD port |
| 7 | 10A | Rotary Controller / Touchpad |
| 8 | 15A | - |
| 9 | 5A | HVAC Control |
| 10 | 7.5A | Ambient Lighting |
| 11 | 10A | Instrument Cluster |
| 12 | 7.5A | Centre Display |
Cabin compartment fuse box 2 (Fuse panel B, C):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel B | ||
| 1 | 10A | Trickle Charger |
| 2 | 15A | CPC |
| 3 | 7.5A | Instrument Cluster |
| 4 | - | - |
| 5 | 10A | Keyless Go |
| 6 | 15A | Left Side Front Seat Adjust |
| 7 | 5A | RKE Antenna |
| 8 | 5A | Rear HVAC Control Panel |
| 9 | 10A | Keyless Go Antenna |
| 10 | 10A | HVAC Boosters and Diverters |
| 11 | 7.5A | Occupant Restraint Control (ORC) |
| 12 | 5A | Rain Light Sensor |
| 13 | 10A | Electronic Ignition Switch |
| 14 | 7.5A | Multi Purpose Camera |
| 15 | 7.5A | Infotainment Head Unit |
| 16 | 5A | TPMS |
| Fuse panel C | ||
| 1 | 30A | Right Side Front Door Control Module |
| 2 | 40A | BCM-F |
| 3 | 20A | DRVU |
| 4 | 15A | Right Side Front seat Adjust |
| 5 | 30A | Left Side Front Door Control Module |
| 6 | 40A | Body Control Module-Front (BCM-F) |
| 7 | 15A | Ignition Relay |
| 8 | 10A | Body Control Module-Rear (BCM-R) |
| 9 | 30A | Left Side Rear Door Control Module |
| 10 | 30A | Right Side Rear Door Control Module |
| 11 | 15A | Infotainment Head Unit |
| 12 | 7.5A | - |
Engine compartment fuse box (Fuse panel A):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A | ||
| 1 | 15A | Exhaust Flaps/ Coolant Sensor |
| 2 | 15A | Low Temperature Coolant Pump 2 |
| 3 | 15A | Low Temperature Coolant Pump 3 |
| 4 | 20A | Low Temperature Coolant Pump 1 |
| 5 | 20A | Engine Harness |
| 6 | 15A | Engine Harness |
| 7 | 15A | Engine Harness |
| 8 | 15A | Engine Harness |
| 9 | 5A | Common Powertrain Control (CPC) |
| 10 | 5A | Engine Harness |
| 11 | 5A | Electronic Stability Program (ESP) Unit |
| 12 | 20A | BCM-F and OBD |
| 13 | 15A | Horn |
| 14 | 30A | Starter Motor |
| 15 | 5A | - |
| 16 | 5A | - |
| 17 | 5A | Front Active Roll Control (ARC) |
| 18 | - | - |
| 19 | 20A | Left Headlamp |
| 20 | 20A | Right Headlamp |
| 21 | 30A | Left Side Wiper Motor |
| 22 | 30A | Right Side Wiper Motor |
| 23 | 40A | ESP Unit |
| 24 | 60A | ESP Unit |
| 25 | 100A | Fan Motor |
| 26 | 150A | Electrical Power Steering Control Unit |
Luggage compartment fuse box (Fuse panel E, F):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel E | ||
| 1 | 40A | Air Suspension Pump |
| 2 | 50A | Rear Window Heater |
| 3 | 15A | Front 12V Power Socket |
| 4 | 15A | Luggage Compartment 12V Power Socket |
| 5 | 15A | Rear Console 12V Power Socket |
| 6 | 5A | - |
| 7 | 5A | Rear Active Roll Control (ARC) |
| 8 | 5A | Electronic Differential |
| 9 | 5A | Tuner |
| 10 | 5A | - |
| 11 | 5A | 48V Battery |
| 12 | 7.5A | Park Assist Module |
| 13 | 7.5A | - |
| 14 | 10A | Electronic Differential |
| 15 | 10A | Vehicle Alarm |
| 16 | 10A | Electronic Differential |
| 17 | 15A | - |
| 18 | 15A | Air Suspension Module |
| 19 | 15A | Air Suspension Module |
| 20 | 15A | - |
| 21 | 15A | - |
| 22 | 15A | - |
| 23 | 25A | Fuel Pump Contro |
| 24 | 25A | - |
| 25 | 25A | Driver's Seat Module |
| 26 | 25A | Front Passenger Seat module |
| 27 | 30A | - |
| 28 | 30A | - |
| 29 | 30A | - |
| 30 | 30A | - |
| 31 | 30A | Rear Seat Heater Module |
| 32 | 30A | - |
| 33 | 30A | Transfer Box |
| 34 | 30A | Roller Blind Module |
| 35 | 40A | Trailer Module |
| 36 | 40A | Trailer Module |
| 37 | 40A | - |
| 38 | 40A | BCM-R |
| 39 | 40A | BCM-R |
| 40 | 40A | Amplifier |
| 41 | - | - |
| 42 | 40A | Tailgate Module |
| 43 | 40A | HVAC Blower |
| Fuse panel F (Optional) | ||
| 1 | 40A | Inline Trailer Fuse |
| 2 | 40A | Inline Trailer Fuse |
| 3 | 40A | Inline Trailer Fuse |
| 4 | 40A | Inline Trailer Fuse |
Battery fuse box (Fuse panel G):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel G | ||
| 1 | N/A1 | Main Power Feed |
| 2 | 40A | Keep Awake |
| 3 | 250A | Engine Fuse Box |
| 4 | 200A | Rear Fuse Box |
| 5 | 60A | Instrument Panel Fuse box |
| 6 | 60A | Transmission |
| 7 | 60A | Front Cabin Fuse box |
1. Pyrotechnic Battery Disconnect Switch
48V fuse box (Fuse panel H):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel H | ||
| 1 | 40A | Rear Anti-Roll Bar |
| 2 | 40A | Front Anti-Roll Bar |
