Chevrolet Aveo 2004 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

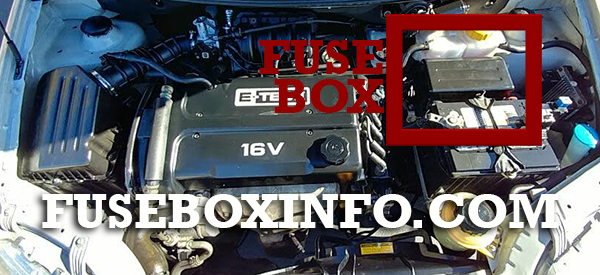

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| CIGAR JACK | Cigar Jack |
| HORN | Horn |
| AUDIO, CLOCK | Audio, Clock |
| STOP LAMP | Stop Lamp |
| T/SIG | Turn Signal |
| METER, HAZARD | Instrument Panel Cluster, Hazard Flasher |
| METER, CLOCK | Instrument Panel Cluster, Clock |
| DOOR LOCK, RKE | Door Lock, Remote Keyless Entry |
| BACK UP LAMP | Back Up Lamp |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| ECM, TCM | Engine Control Module, Transmission Control Module |
| WIPER, WASHER | Wiper, Washer |
| DIS, INJECTOR | Direct Ignition System, Injector |
| ABS, ENG FUSE | Antilock Brake System, Engine Fuse |
| AIRBAG | Air Bag |
| HVAC BLOWER | HVAC Blower |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| CLOCK, AUDIO | Clock, Audio |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| H/L HI RH | Head Lamp High Right Side |
| BLANK | Not Used |
| H/L HI LH | Head Lamp High Left Side |
| BLANK | Not Used |
| H/L LOW RH | Head Lamp Low Right Side |
| ILL RH | Parking Lamp Right Side, Illumination Circuit |
| H/L LOW LH | Head Lamp Low Left Side |
| ILL LH | Parking Lamp Left Side, License Plate Lamp |
| ROOM LAMP | Room Lamp |
| BLANK | Not Used |
| DEFOG | Defogger |
| SUN ROOF | Sunroof |
| ILL LAMP | Illumination Relay |
| HORN | Horn |
| HEAD LAMP | Headlamp |
| FUEL PUMP | Fuel Pump |
| A/C COMP | Air Conditioning Compressor |
| FRT FOG | Front Fog Lamp |
| BLOWER | Blower |
| ABS | Antilock Brake System |
| IP F/BOX | Instrument Panel Fuse Box |
| RAD’ FAN | Radiator Fan |
| IGN 2 | Ignition 2 |
| IGN 1 | Ignition 1 |
| POWER WINDOW | Power Windows |
| FUSE SPARE | Spare Fuse |
| BLANK | Not Used |
| RAD FAN LOW RELAY | Radiator Fan Low Relay |
| HEAD LAMP HIGH RELAY | Head Lamp High Relay |
| HEAD LAMP LOW RELAY | Head Lamp Low Relay |
| PWR WINDOW RELAY | Power Window Relay |
| FOG LAMP RELAY | Fog Lamp Relay |
| MAIN RELAY/FAN CONTROL RELAY | Main Relay/Fan Control Relay |
| FUEL PUMP RELAY | Fuel Pump Relay |
| A/C COMP RELAY | Air Conditioning Relay |
| (OPTION) MAIN RELAY | Main Relay (Option) |
| RAD FAN HI RELAY | Radiator Fan High Relay |
| ILLUMINATION RELAY | Illumination Relay |
| BLANK | Not Used |
