Chevrolet SSR 2003 Fuse Box Info

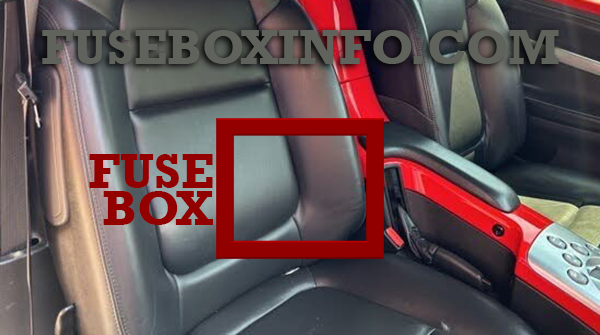

Passenger compartment fuse box location:
The fuse box is located on the center console between the two seats.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 01 | Roof & Door Module |
| 02 | Roof Pump |
| 03 | Rear Window Defogger |
| 04 | Truck Body Controller |
| 05 | Rear Window Defogger |
| 06 | Driver Seat Module |
| 07 | Truck Body Controller |
| 08 | Power Seats |
| 09 | Blank |
| 10 | Driver’s Door Module, Power Mirrors |
| 11 | Amplifier |
| 12 | Blank |
| 13 | Daytime Running Lamps (DRL) |
| 14 | Driver’s Side Rear Parking Lamp |
| 15 | Accessory Power Outlets |
| 16 | Center High-Mounted Stop Lamp |
| 17 | Passenger’s Side Rear Parking Lamp |
| 18 | Locks |
| 19 | Blank |
| 20 | Blank |
| 21 | Locks |
| 22 | Blank |
| 23 | Blank |
| 24 | Unlock |
| 25 | Blank |
| 26 | Blank |
| 27 | HomeLink® System |
| 28 | Roof Door Module |
| 29 | Blank |
| 30 | Parking Lamps |
| 31 | Truck Body Controller |
| 32 | Remote Keyless Entry (RKE) |
| 33 | Windshield Wipers |
| 34 | Stoplamps |
| 35 | Blank |
| 36 | Climate Control System, Driver’s Door Unlock |
| 37 | Front Parking Lamps |
| 38 | Driver’s Side Turn Signal |
| 39 | Climate Control System |
| 40 | Truck Body Controller |
| 41 | Radio |
| 42 | Trailer Parking Lamps |
| 43 | Passenger’s Side Turn Signal |
| 44 | Blank |
| 45 | Rear Window Defogger, Outside Power Heated Mirrors |
| 46 | Accessory Power Outlets |
| 47 | Ignition |
| 48 | Blank |
| 49 | Blank |
| 50 | Truck Body Controller, Ignition |
| 51 | Brakes |
| 52 | Blank |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Air Conditioning |
| 2 | Automatic Transmission Shift Lock Control System |
| 3 | Canister, Fuel System |
| 4 | Ignition |
| 5 | Starter |
| 6 | Ignition |
| 7 | Driver’s Side High Beam Headlamp |
| 8 | Passenger’s Side High Beam Headlamp |
| 9 | Ignition |
| 10 | Instrument Panel Cluster, Driver Information Center (DIC) |
| 11 | Driver’s Side Low Beam Headlamp |
| 12 | Passenger’s Side Low Beam Headlamp |
| 13 | Powertrain Control Module (PCM) |
| 14 | Air Bag System |
| 15 | Truck Body Controller |
| 16 | Truck Body Control, Ignition |
| 17 | Driver’s Side Stoplamp/Turn Signals |
| 18 | Passenger’s Side Stoplamp/Turn Signals |
| 19 | Back-up Lamps |
| 20 | Throttle Actuator Control (TAC) |
| 21 | Fog Lamps |
| 22 | Horn |
| 23 | Injector A |
| 24 | Injector B |
| 25 | Oxygen Sensor A |
| 26 | Oxygen Sensor B |
| 27 | Windshield Washer |
| 28 | Cigarette Lighter |
| 29 | Powertrain Control Module (PCM) |
| 30 | Blank |
| 31 | Cargo Cover Release |
| 32 | Hazard Warning Flashers |
| 33 | Stoplamps |
| 34 | Air Conditioning |
| 35 | Fuel Pump |
| 36 | Fog Lamps |
| 37 | High Beam Headlamps |
| 38 | Cargo Cover Release |
| 39 | Horn |
| 40 | Windshield Washer |
| 41 | Headlamp Driver Module |
| 42 | Ignition |
| 43 | Starter |
| 44 | Engine Cooling Fan |
| 45 | Climate Control Fan |
| 46 | Ignition A |
| 47 | Ignition B |
| 48 | Anti-lock Brake System (ABS) |
| 49 | Body Fuse |
Relay box is located in the area where the convertible top is stored when it is open.
| Fuse/Relay N° | Functions |
| - | Driver’s Door Lock |
| - | Passenger’s Side Daytime Running Lamps (DRL) |
| - | Driver’s Side Daytime Running Lamps (DRL) |
| - | Rear Window Defogger |
