Citroën C1 2018, 2019, 2020 Fuse Box Diagram
Fuse box location:
The fusebox is located below the dashboard.
Engine compartment fusebox:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout
Dashboard fuses:
| Fuse N° | Rating | Functions |
| 1 | 5 A | Reversing lamp – Fuel injection system – Audio system – VSC system |
| 2 | 15 A | Front and rear screenwash |
| 3 | 5 A | Main supply unit – Instrument panel – Display screen – Air conditioning – Heated rear window and door mirrors – Heated seats – Electric fabric roof – Audio system |
| 4 | 5 A | Electrical power steering – Stop & Start |
| 5 | 15 A | Rear wiper |
| 6 | 5 A | Fan assembly – ABS system – VSC system |
| 7 | 25 A | Windscreen wipers |
| 8 | 10 A | Heated door mirrors |
| 9 | 15 A | 12 V socket (max 120W) |
| 10 | 7.5 A | Door mirrors – Audio system – Stop & Start – Instrument panel – Display screen |
| 11 | 5 A | Steering lock – Fuel injection system – ETG gearbox |
| 12 | 7.5 A | Airbags |
| 13 | 5 A | Instrument panel – Display screen -Stop & Start |
| 14 | 15 A | Steering – Fuel injection system – Brake lamps |
| 15 | 7.5 A | Fuel injection system – Stop & Start |
| 16 | 7.5 A | Engine self-diagnosis |
| 17 | 10 A | Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – ETG gearbox – "Keyless Entry and Starting" system |
| 18 | 10 A | Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer |
| 19 | 40 A | Air conditioning |
| 20 | 40 A | Air conditioning – Engine self-diagnosis – Sidelamps – License plate lamps – Rear foglamps – Rear lamps – Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – ETG gearbox – "Keyless Entry and Starting" system – Electric windows |
| 21 | 30 A | Fuel injection system – Stop & Start – Main supply unit |
| 22 | 7.5 A | Fuel injection system |
| 23 | 20 A | Fuel injection system – Stop & Start |
| 24 | 25 A | Main supply unit |
| 25 | 30 A | Electric windows |
| 26 | 25 A | Electric windows |
| 27 | 10 A | Air conditioning |
| 28 | 5 A | Rear foglamp |

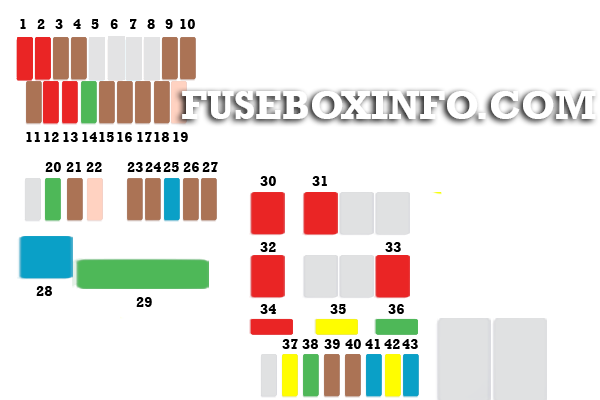

Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 10 A | Right dipped beam headlamp |
| 2 | 10 A | Left dipped beam headlamp – Headlamp adjustment |
| 3 | 7.5 A | Right main beam headlamp |
| 4 | 7.5 A | Left main beam headlamp – Instrument panel – Display screen |
| 9 | 7.5 A | Air conditioning |
| 10 | 7.5 A | Fuel injection system – Brake lamps – Third brake lamp |
| 11 | 5 A | Courtesy lamp – Boot lighting |
| 12 | 10 A | Flashing indicators – Hazard warning lamps – Instrument panel – Display screen |
| 13 | 10 A | Horn |
| 14 | 30 A | Supply units |
| 15 | 7.5 A | ETG gearbox |
| 16 | 7.5 A | Fuel injection system |
| 17 | 7.5 A | "Keyless Entry and Starting" system |
| 18 | 7.5 A | Battery |
| 19 | 25 A | Fuel injection system – Fan assembly |
| 20 | 30 A | Starter |
| 21 | 7.5 A | Steering lock |
| 22 | 25 A | Front lamps |
| 23 | 7.5 A | Fuel injection system |
| 24 | 7.5 A | Fuel injection system – Starter – ETG Gearbox – Stop & Start |
| 25 | 15 A | Audio system – "Keyless Entry and Starting" system |
| 26 | 7.5 A | Instrument panel – Display screen |
| 27 | 7.5 A | VSC system |
| 28 | 60 A | Fusebox, passenger compartment |
| 29 | 125 A * | Demisting of the rear screen and door mirrors – Heated seats – Electric roof – ABS system – VSC system – Fan assembly – Front foglamps – LED Daytime running lamps |
| 30 |
50 A 40 A |
ETG gearbox Stop & Start |
| 31 | 50 A | Power steering |
| 32 |
30 A 40 A |
Fan assembly |
| 33 | 50 A | ABS System – VSC system |
| 37 | 20 A | Demisting of the rear screen and door mirrors |
| 38 | 30 A | ABS System – VSC system |
| 39 | 7.5 A | Front foglamps – Instrument panel – Display screen |
| 40 | 7.5 A | LED daytime running lamps |
| 41 | 15 A | Right heated seat |
| 42 | 20 A | Electric fabric roof |
| 43 | 15 A | Left heated seat |
* This fuse must be replaced only by a CITROËN dealer or by a qualified workshop.
