Citroën C4 SpaceTourer 2018 Fuse Box Info

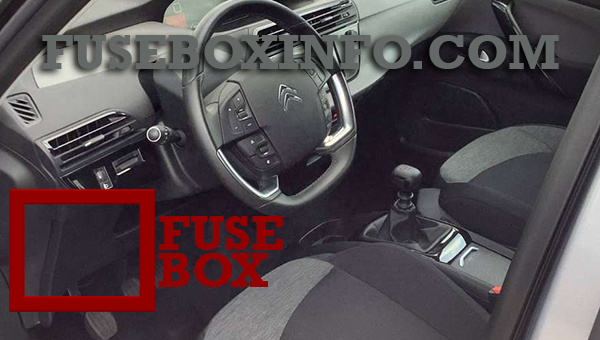

Passenger compartment fuse box location:
The 2 fuse boxes are located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box 1):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Heated rear screen |
| 2 | 20A | Electric door mirrors |
| 5 | 30A | Panoramic sunroof blind |
| 6 | 20A | 12 V, rear multimedia sockets |
| 7 | 20A | 230 V socket |
| 9 | 25A | Heated seats |
| 10 | 20A | Trailer interface unit |
| 11 | 20A | Air conditioning blower |
| 12 | 30A | Electric window motors |
Passenger compartment fuse box (Fuse box 2):
| Fuse/Relay N° | Rating | Functions |
| 7 | 10A | 12 V boot socket, rear multimedia |
| 8 | 20A | Rear windscreen wiper |
| 10 | 30A | Locks |
| 17 | 5A | Instrument panel |
| 18 | 5A | Automatic gearbox gear selector |
| 21 | 3A | START/STOP button |
| 22 | 3A | Rain and sunshine sensor, windscreen camera |
| 24 | 5A | Parking aid, panoramic visual aid |
| 27 | 5A | Automatic gearbox |
| 29 | 20A | Audio and telematic systems |
| 32 | 15A | 12 V sockets |
| 35 | 5A | Headlamp beam height adjustment, heated rear screen, radar |
| 36 | 5A | Lighting: glove box, central storage, reading lamps, courtesy lamps |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 16 | 20A | Headlamp wash |
| 18 | 10A | Right-hand main beam headlamp |
| 19 | 10A | Left-hand main beam headlamp |
| 29 | 40A | Wipers |
