Dodge Charger 2007 Fuse Box Info
Fuse box location:
The interior fuse box is located in the rear compartment under the spare tire access panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | Ignition Off Draw (IOD) |
| 2 | 40A | Battery |
| 3 | - | - |
| 4 | 40A | Battery |
| 5 | 40A | Heated Seats - if equipped |
| 6 | 20A | Fuel Pump |
| 7 | 20A | Amplifier — Subwoofer |
| 8 | 15A | Ignition Switch/Airbag Control Module (ACM) |
| 9 | 20A | Console Power Outlet |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | 10A | AC Heater Control/Cluster/ Sentry Key Remote Keyless Entry |
| 15 | - | - |
| 16 | - | - |
| 17 | 20A | Cluster |
| 18 | 20A | Selectable Power Outlet |
| 19 | 10A | Stop Lights |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | 10A | Airbag/Airbag Control Module (ACM) |
| 28 | 10A | Curtain Airbag - if equipped |
| 29 | 5A | Anti-lock Brakes Module/Cluster/Front Control Module (FCM)/ Powertrain Control Module (PCM)/Sentry Key Remote Keyless Entry/Stop Lights |
| 30 | 10A | Door Modules/Power Mirrors - if equipped/Steering Control Module |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | 5A | Amplifier - if equipped/ Antenna/Ignition Delay/Overhead Console/Passenger Door Lock & Express Power Window Switch - if equipped/Power Mirrors - if equipped/Rear Defrost |
| 36 | 20A | Hands Free Phone - if equipped/Media System Monitor DVD - if equipped/ Radio/Satellite Receiver - if equipped |
| 37 | 15A | Transmission - NAG1 |
| 38 | 5A | Cargo Light/Overhead Console |
| 39 | 10A | Heated Mirrors - if equipped |
| 40 | 10A | Heated Seats - if equipped/Inside Rearview Mirro |
| 41 | 10A | Tire Pressure Monitoring - if equipped |
| 42 | 30A | Front Blower Motor |
| 43 | 30A | Amplifier - if equipped/ Antenna/Rear Defrost |
| 44 | 20A | Amplifier - if equipped/Front Control Module (FCM)/ Sunroof - if equipped |

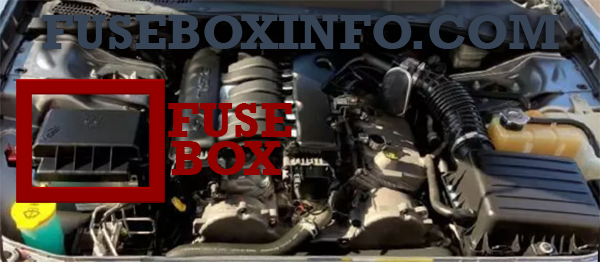

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | 15A | Adjustable Pedals - if equipped |
| 4 | 20A | AC Clutch/Horn |
| 5 | - | - |
| 6 | 15A | Front Control Module (FCM) |
| 7 | 20A | Fog Lights |
| 8 | 15A | Lights – License, Park, Side Marker, Stop, Turn |
| 9 | 15A | Front Control Module (FCM) |
| 10 | 5A | Powertrain Control Module (PCM)/Starter |
| 11 | 20A | Auto Shutdown/Powertrain Control Module (PCM) |
| 12 | - | - |
| 13 | - | - |
| 14 | 25A | Powertrain Control Module (PCM) |
| 15 | 25A | Injectors, Ignition Coils |
| 16 | - | - |
| 17 | 30A | Anti-lock Brakes System (ABS) Valves/Powertrain Control Module (PCM) |
| 18 | 30A | Windshield Wiper/Washer |
| 19 | 50A | Radiator Fan |
| 20 | 20A | Starter |
| 21 | 50A | Anti-lock Brakes System (ABS) Pump Motor |
| 22 | 40A | AC Clutch/Radiator Fan High — Low |
| 23 | - | - |
| 24 | 60A | Radiator Fan |
| 25 | 30A | Front Control Module (FCM) |
| 26 | - | - |
| 27 | 30A | Front Control Module (FCM) |
