Fiat Tipo 2019 Fuse Box Info

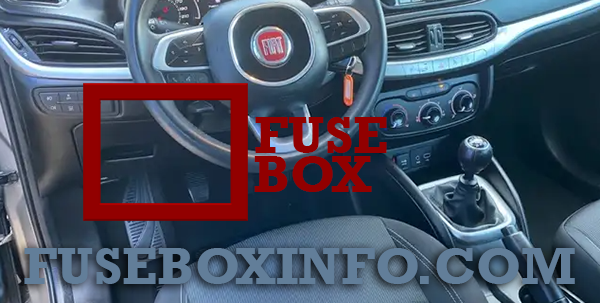

Passenger compartment fuse box location:
The fuse box is located on the driver's side under the instrument panel.

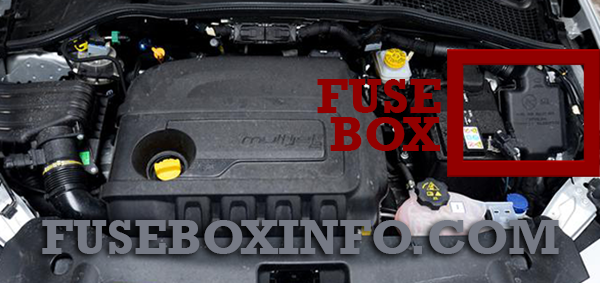

Engine compartment fuse box location:

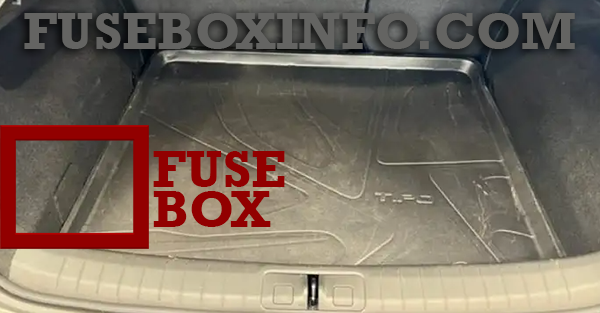

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 47 | 25A | Front electric window (driver side) |
| 48 | 25A | Front electric window (passenger side) |
| 36 | 15A | Supply for Uconnect™ system, Climate Control system, EOBD system, USB/AUX port, steering wheel controls |
| 38 | 20A | Dead Lock device (Driver side door unlocking for versions/markets, where provided)/Door unlocking/Central locking/Electric rear flap unlocking |
| 43 | 20A | Windscreen washer pump |
| 33 | 25A | Rear left electric window |
| 34 | 25A | Rear right electric window |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 10 | 15A | Two-tone horn |
| 85 | 10A | Driver's seat lumbar adjustment |
| 88 | 7.5A | Heater mirrors |
| 20 | 30A | Heated rear window |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 97 | 15A | Rear 12 V socket |
| 99 | 10A | Driver's front seat heater |
| 92 | 10A | Passenger side front seat heater |
| 90 | 10A | Driver's front seat lumbar adjustment |
