Fiat Idea 2007 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located on the left side of the dashboard.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

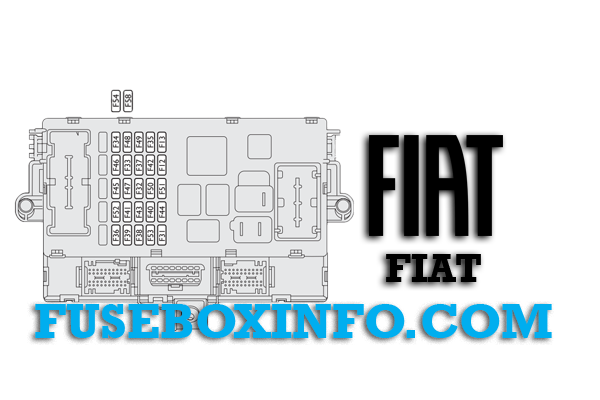

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F12 | 15A | Right-hand dipped beam headlight |
| F13 | 15A | Left-hand dipped beam headlight / headlight aiming device |
| F31 | 7.5A | Reversing lights / engine compartment control box relay coils / body computer |
| F32 | 15A | +30 Driver’s / passenger’s door control units (*) |
| F33 | 20A | Left rear power window |
| F34 | 20A | Right rear power window |
| F35 | 7.5A | +15 Cruise control, signal from switch on brake pedal for control units (*) |
| F36 | 20A | +30 Presetting for trailer control unit, rear locks front locks with single door control unit (*) |
| F37 | 10A | +15 Third brake light, instrument panel, brake lights (*) |
| F38 | 15A | Boot unlocking |
| F39 | 10A | +30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*) |
| F40 | 30A | Rear heated screen |
| F41 | 7.5A | Heated door electric mirrors |
| F42 | 7.5A | +15 ABS / ESP control unit (*) |
| F43 | 30A | Windscreen wiper/washer |
| F44 | 20A | Cigar lighter / current socket on tunnel |
| F45 | 15A | Heated seats |
| F46 | 20A | Boot current socket |
| F47 | 20A | Driver’s door control unit power supply (power window, lock) |
| F48 | 20A | Passenger’s door control unit power supply (power window, lock) |
| F49 | 7.5A | +15 utilities (left and central dashboard control lights, electric mirrors, heated seat control lighting, presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit, sunroof control lighting) (*) |
| F50 | 7.5A | Airbag control unit |
| F51 | 7.5A | +15 Tyre pressure control unit, ECO / Sport control (*) |
| F52 | 15A | Rear screen wiper/washer |
| F53 | 10A | +30 Direction indicators, hazard lights, instrument panel (*) |
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 70A | Dashboard control unit 1 |
| F2 | 70A | Power steering control unit |
| F3 | 20A | Ignition switch |
| F4 | 50A | Dashboard control unit 2 |
| F5 | 60A | ABS / ESP control unit |
| F6 | 30A | Radiator electric fan (low speed) (all versions) |
| F7 | 40A | Radiator electric fan (high speed) (all versions excluded 1.2 16V, 1.4 16V heated) |
| F8 | 30A | Climate control electric fan |
| F9 | 20A | Headlight washer |
| F10 | 15A | Horn |
| F11 | 15A | Electronic injection secondary services |
| F14 | 10A | Right main beam headlight |
| F15 | 10A | Left main beam headlight |
| F16 | 7.5A | +15 Electronic injection system / Dualogic gearbox (*) |
| F17 | 10A | Electronic injection primary services |
| F18 | 7.5A | +30 Engine control unit / Radiator electric fan remote control switch (1.9 Multijet) (*) |
| F19 | 7.5A | Compressor |
| F20 | 30A | Heated diesel oil filter (Multijet) |
| F21 | 15A | Fuel pump |
| F22 | 15A | Electronic injection primary services (1.2 16V, 1.4 16V) |
| F22 | 20A | Electronic injection primary services (Multijet) |
| F23 | 15A | +30 Dualogic gearbox (*) |
| F24 | 7.5A | +15 Electric power steering (*) |
| F30 | 15A | Front fog lights |
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
Optional fusebox (on auxiliary bracket):
| Fuse/Relay N° | Rating | Functions |
| F54 | 15A | +30 Outside radio amplifier (*) |
| F58 | 20A | +30 Sunroof (*) |
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
Fuses external to engine compartment fusebox:
| Fuse/Relay N° | Rating | Functions |
| P01 | 30A | Dualogic gearbox pump |
| P04 | 50A | Glow plug warming (Multijet) |
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
