Ford Thunderbird 2005 Fuse Box Info

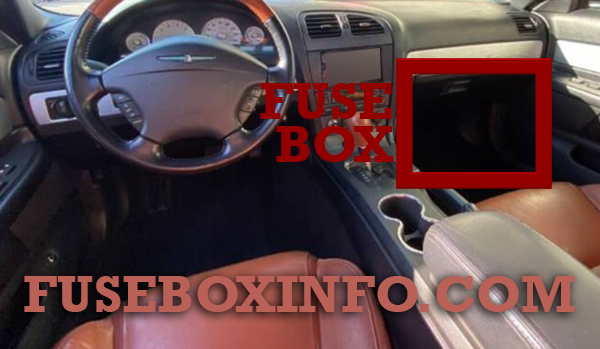

Passenger compartment fuse box location:
The fuse box is located on the right-hand side kick panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:
The rear fuse box is located in the luggage compartment under the spare tire well cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Starter Relay Coil |
| 2 | 5A | Radio Start Signal |
| 3 | 5A | Anti-lock Brake System (ABS) module |
| 4 | 5A | Cluster, Powertrain Control Module (PCM) relay coil, Inertia switch, Transmission park switch |
| 5 | 5A | Traction control switch, Cruise deactivation brake switch and transmission mode switch |
| 6 | 10A | OBD II connector |
| 7 | 5A | PCM, Remote Keyless Entry (RKE), Anti-theft indicator |
| 8 | 5A | Right-hand turn/park lamp and side marker |
| 9 | 15A | Right-hand headlamp |
| 10 | 5A | Left-hand turn/park lamp and side marker |
| 11 | 15A | Left-hand headlamp |
| 12 | 10A | Passenger air bag on/off switch indicator |
| 13 | 5A | Cluster |
| 14 | 10A | Air bag module |
| 15 | 5A | Not Used (Spare) |
| 16 | 5A | Driver and passenger heated seat modules |
| 17 | 5A | Cluster |
| 18 | 20A | Radio, Central imaging amplifier |
| 19 | 20A | Tilt/Tele Motors |
| 20 | 10A | Front Electronics Module (FEM), Dual Automatic Temperature Control (DATC), Cluster |
| 21 | 10A | Not used (Spare) |
| 22 | 10A | Not used (Spare) |
| 23 | 10A | Not used (Spare) |
| 24 | 5A | Passive anti-theft transceiver |
| 25 | 10A | Not used (spare) |
| 26 | 3A | Windshield Wiper Relay |
| 27 | 10A | Radio |
| 28 | 10A | Not used (Spare) |
| 29 | 5A | DATC |
| 30 | 5A | FEM |
| 31 | 10A | Glove box and foot well lamps |
| 32 | 20A | Cigar Lighter |
| 33 | 10A | FEM (Dimmer control lamps) |
| 34 | 5A | Outside mirror |
| 35 | 5A | Brake pedal switch |
| Relay 1 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | A/C Clutch |
| 2 | - | Not used |
| 3 | 10A | Park Lamp |
| 4 | 15A | Horn |
| 5 | 20A | Fuel Injectors |
| 6 | 15A | Transmission Solenoids |
| 7 | - | Not Used |
| 8 | 20A | Power Point |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | 15A | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 12 | 10A | Coil On Plug |
| 13 | - | Not used |
| 14 | 30A | ABS Module Power |
| 15 | - | Not Used |
| 16 | 30A | Blower Motor |
| 17 | - | Not used |
| 18 | 40A | PCM |
| 19 | - | Not Used |
| 20 | - | Not Used |
| 21 | 30A | Starter Solenoid |
| 22 | 30A | ABS Motor |
| 23 | - | Not Used (Fuse Plug) |
| 24 | 30A | Wiper module |
| Relay 01 | - | Not Used |
| Relay 02 | - | Not Used |
| Relay 03 | - | Coil on Plug and HEGOs |
| Relay 04 | - | Not Used |
| Relay 05 | - | Auxiliary Coolant Pump |
| Relay 06 | - | Horn |
| Relay 07 | - | Not Used |
| Relay 08 | - | A/C Clutch |
| Relay 09 | 60A | Cooling fan motor |
| Relay 10 | - | Blower Motor |
| Relay 11 | - | Not Used |
| Relay 12 | - | Not Used |
| Relay 13 | - | Not Used |
| Relay 14 | - | PCM |
| Relay 15 | - | Starter Motor |
| Diode | - | PCM relay coil |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear Electronics Module (REM) |
| 2 | 5A | License plate lamp and rear side markers |
| 3 | 10A | Left rear stop/turn/tail lamp |
| 4 | 10A | Luggage compartment lamp, Map/courtesy overhead lamp, Homelink transmitter |
| 5 | 5A | REM - Hard top sense |
| 6 | 10A | Back-up Lamps |
| 7 | 10A | Right rear stop/turn/tail lamp |
| 8 | 5A | Center high-mounted stop lamp |
| 9 | - | Not used |
| 10 | 15A | Passenger heated set |
| 11 | 15A | Driver heated seat |
| 12 | 5A | REM |
| 13 | - | Not Used |
| 14 | 5A | Convertible top relay coil |
| 15 | 5A | Alternator Sense |
| 16 | - | Not used |
| 17 | 15A | Fuel Pump |
| 18 | 20A | Subwoofer Amplifier |
| 19 | 30A | Driver power seat |
| 20 | 30A | FEM - Left front window |
| 21 | - | Not used |
| 22 | 20A | Ignition Switch |
| 23 | 30A | SSP4 |
| 24 | 30A | SSP3 |
| 25 | 40A | Passenger compartment fuse panel |
| 26 | 30A | Passenger power seat |
| 27 | 30A | SSP1 |
| 28 | 30A | REM -Right front window |
| 29 | 30A | Rear Defroster |
| 30 | - | Not used |
| 31 | 40A | Convertible top motor |
| 32 | 30A | SSP2 |
| Relay 001 | - | SSP1 |
| Relay 002 | - | SSP4 |
| Relay 003 | - | Rear Defroster |
| Relay 004 | - | SSP3 |
| Relay 005 | - | SSP2 |
| Relay 006 | - | Not Used |
| Relay 007 | - | Fuel Pump |
| Diode 01 | - | Not Used |
| Diode 02 | 1A | Fuel pump relay coil |
