Ford Fusion Hybrid/Energi 2018 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering column.

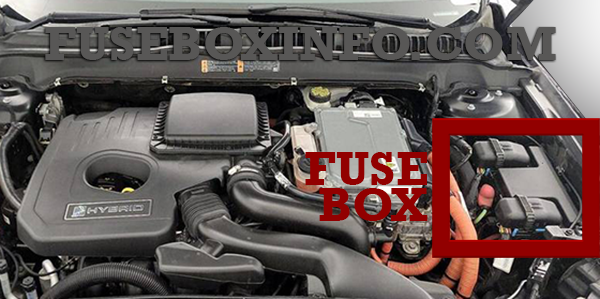

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Lighting (ambient, glovebox, vanity, dome, trunk) |
| 2 | 7.5A | Lumbar |
| 3 | 20A | Driver door unlock |
| 4 | 5A | Not used (spare) |
| 5 | 20A | Subwoofer amplifier |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Not used (spare) |
| 10 | 5A | Keypad, Cell phone passport module |
| 11 | 5A | Not used (spare) |
| 12 | 7.5A | Climate control, Gear shift |
| 13 | 7.5A | Steering wheel column, Instrument cluster, Datalink logic |
| 14 | 10A | Extended power module |
| 15 | 10A | Datalink/Gateway module |
| 16 | 15A | Child lock, Decklid release |
| 17 | 5A | Not used (spare) |
| 18 | 5A | Push button start stop switch |
| 19 | 7.5A | Extended power module |
| 20 | 7.5A | Adaptive headlamps |
| 21 | 5A | Humidity and in–car temperature sensor |
| 22 | 5A | Spare |
| 23 | 10A | Delayed accessory (power inverter logic, moonroof logic, driver master switch) |
| 24 | 30A | Central lock/unlock |
| 25 | 30A | Driver's door (window, mirror) |
| 26 | 30A | Front passenger's door (window, mirror) |
| 27 | 30A | Moonroof |
| 28 | 20A | Amplifier |
| 29 | 30A | Rear driver's side door (window) |
| 30 | 30A | Rear passenger's side door (window) |
| 31 | 15A | Not used (spare) |
| 32 | 10A | GPS, Voice control, Display, Radio frequency receiver |
| 33 | 20A | Radio, Active noise control |
| 34 | 30A | Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A | Not used (spare) |
| 36 | 15A | Auto-dimming rear view mirror |
| 37 | 20A | Heated steering wheel |
| 38 | 30A | Not used (spare) |
Engine compartment fuse box - Top:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Wiper motor 2 |
| 2 | - | Not used |
| 3 | 15A | Rain sensor |
| 4 | - | Blower motor relay |
| 5 | 20A | Power point 3 - Back of console |
| 6 | - | Not used |
| 7 | 20A | Powertrain control module - vehicle power 1, Powertrain control module power |
| 8 | 20A | Powertrain control module - vehicle power 2, Emission components |
| 9 | - | Powertrain control module relay |
| 10 | 20A | Power point 1 - driver front |
| 11 | 15A | Powertrain control module - vehicle power 4, Ignition coils |
| 12 | 15A | Powertrain control module - vehicle power 3, Non-emission components |
| 13 | 10A | Not used (spare) |
| 14 | 10A | Not used (spare) |
| 15 | - | Run/start relay |
| 16 | 20A | Power point 2 - console |
| 17 | 20A | Not used (spare) |
| 18 | 10A | Powertrain and hybrid powertrain control module keep alive power, Battery module |
| 19 | 10A | Run/start electronic power assist steering |
| 20 | 10A | Adaptive cruise control |
| 21 | 15A | Run-start transmission switch, HEV inverter |
| 22 | 5A | Not used (spare) |
| 23 | 15A | Run/start: blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter |
| 24 | 10A | PHEV Run-start transmission oil pump |
| 25 | 10A | Run/start anti-lock brake system |
| 26 | 10A | Run/start powertrain control module |
| 27 | 10A | Fuel door solenoid |
| 28 | 20A | Not used (spare) |
| 29 | 20A | Not used (spare) |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | HEV/PHEV pulse width modulated fan relay |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | 15A | Charger fan |
| 36 | 15A | HEV battery electronic control module fan |
| 37 | - | Not used |
| 38 | - | Vacuum pump #1 relay |
| 39 | - | Vacuum pump #2 relay |
| 40 | - | Fuel pump relay |
| 41 | - | Horn relay |
| 42 | - | Not used |
| 43 | 10A | Not used (spare) |
| 44 | - | Not used |
| 45 | 5A | Vacuum pump monitor |
| 46 | 10A | Charge port light ring |
| 47 | 10A | Brake on/off switch |
| 48 | 20A | Horn |
| 49 | 5A | Air flow monitor |
| 50 | 15A | Hybrid content vehicle power 5, Battery energy control module fan |
| 51 | 15A | Hybrid content vehicle power 1, Hybrid powertrain control module |
| 52 | 15A | Hybrid content vehicle power 2, Battery energy control module |
| 53 | 10A | Not used (spare) |
| 54 | 10A | Hybrid content vehicle power 3, Coolant pump |
| 55 | 10A | Hybrid content vehicle power 4, Air conditioning compressor, Positive temperature coefficient heater (PHEV), Humidity sensor (PHEV) |
Engine compartment fuse box - Bottom:
| Fuse/Relay N° | Rating | Functions |
| 56 | 30A | Fuel pump feed |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | 40A | Vacuum pump relay |
| 60 | 40A | Pulse width modulated fan |
| 61 | - | Not used |
| 62 | 50A | Body control module 1 |
| 63 | - | Not used |
| 64 | 40A | PHEV charger |
| 65 | 20A | Front heated seat |
| 66 | - | Not used |
| 67 | 50A | Body control module 2 |
| 68 | 40A | Heated rear window |
| 69 | 30A | Anti-lock brake system valves |
| 70 | 30A | Passenger seat |
| 71 | - | Not used |
| 72 | 30A | Panoramic roof #1 |
| 73 | - | Not used |
| 74 | 30A | Driver seat module |
| 75 | 20A | Transmission oil pump (PHEV) |
| 76 | 20A | e-Shifter (transmission range control module) |
| 77 | 30A | Front climate controlled seats |
| 78 | - | Not used |
| 79 | 40A | Blower motor |
| 80 | - | Not used |
| 81 | 40A | Inverter |
| 82 | 60A | Anti-lock brake system pump |
| 83 | 25A | Wiper motor 1 |
| 84 | - | Not used |
| 85 | - | Not used |
