Ford Mustang 2024 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located in the right-hand side of the passenger footwell behind a trim panel.

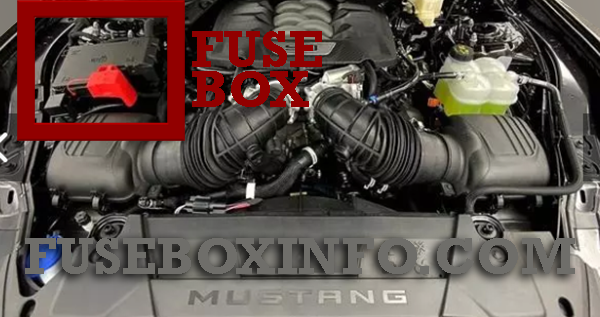

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 10 A | Power windows |
| 3 | 7.5A | Not used (spare) |
| 4 | 20A | Amplifier |
| 5 | - | Not used |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Auxiliary body module |
| 8 | 5A | Telematics control unit module |
| 9 | 5A | Intrusion sensor module, Performance electric parking brake |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 7.5A | Climate control module |
| 13 | 7.5A | Steering column control module, Instrument cluster display |
| 14 | 15A | Not used |
| 15 | 15A | SYNC |
| 16 | - | Not used (spare) |
| 17 | 7.5A | Not used (spare) |
| 18 | 7.5A | Not used (spare) |
| 19 | 5A | Headlamp switch |
| 20 | 5A | Push button ignition switch |
| 21 | 5A | Not used |
| 22 | 5A | Vehicle dynamics module |
| 23 | 30A | Driver door module, Driver door window |
| 24 | 30A | Vehicle dynamics module |
| 25 | 20A | Amplifier |
| 26 | 30A | Passenger door module, Passenger door window |
| 27 | 30A | Left-hand rear window power (convertible) |
| 28 | 30A | Right-hand rear window power (convertible) |
| 29 | 15A | Instrument cluster module |
| 30 | 5A | Not used (spare) |
| 31 | 10A | SYNC display screen, Integrated control panel, Gateway module, Remote keyless entry |
| 32 | 20A | Audio unit |
| 33 | - | Not used |
| 34 | 30A | Run/start relay |
| 35 | 5A | Auxiliary body module |
| 36 | 15A | Not used (spare) |
| 37 | 20A | Auto-dimming interior mirror, Heated steering wheel |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Body control module 1 |
| 2 | 30A | Not used (spare) |
| 3 | 30A | Body control module 2 |
| 4 | 40A | Fuel pump |
| 5 | 5A | Not used (spare) |
| 6 | 15A | Vehicle power 1 |
| 7 | 30A | Vehicle power 2 |
| 8 | 15A | Vehicle power 3 |
| 9 | 20A | Vehicle power 4 |
| 11 | 30A | Starter motor |
| 13 | 40A | Blower motor |
| 14 | 5A | Not used (spare) |
| 16 | 10A | Decklid release |
| 17 | 5A | Not used (spare) |
| 21 | 10A | Not used (spare) |
| 22 | 5A | Not used (spare) |
| 23 | 10A | Automatic brake system module |
| 24 | 10A | Powertrain control module, Electronic power assist steering |
| 25 | 10A | Not used (spare) |
| 26 | 10A | Not used (spare) |
| 27 | 5A | Not used (spare) |
| 28 | 40A | Automatic brake system valve |
| 29 | 60A | Automatic brake system pump |
| 30 | 40A | Driver power seat, Driver seat module |
| 31 | 30A | Passenger power seat |
| 32 | 20A | Power point 1 |
| 33 | 20A | Power point 2 |
| 34 | 20A | Not used (spare) |
| 35 | 30A | Not used (spare) |
| 37 | 20A | Convertible top motor - left-hand side |
| 38 | 30A | Climate controlled seat |
| 39 | 20A | Not used (spare) |
| 41 | 20A | Convertible top motor - right-hand side |
| 44 | 10A | Not used (spare) |
| 50 | 40A | Heated rear window |
| 51 | 10A | Heated exterior mirror |
| 61 | 30A | Not used (spare) |
| 62 | 10A | Not used (spare) |
| 68 | 20A | Electronic steering column lock |
| 69 | 30A | Wiper motor |
| 71 | 20A | Not used (spare) |
| 83 | 15A | Not used (spare) |
| 84A | 60A | Not used (spare) |
| 84B | 30A | Not used (spare) |
| 85 | 40A | Not used (spare) |
| 87 | 15A | Not used (spare) |
| 93 | 10A | Not used (spare) |
| 95 | 10A | Not used (spare) |
| 96 | 10A | Not used (spare) |
| 97 | 20A | Not used (spare) |
| 99 | 10A | Not used (spare) |
| 100 | 15A | Left-hand headlamps |
| 101 | 15A | Right-hand headlamps |
| 120 | 15A | Fuel injectors |
| 124 | 5A | Rain sensor |
| 125 | 5A | Not used (spare) |
| 130 | 20A | Differential pump |
| 132 | 15A | Not used (spare) |
| 137 | 10A | Advanced driver assistance module |
| 139 | 5A | USB charge port 2 |
| 140 | 5A | Not used (spare) |
| 146 | 5A | Not used (spare) |
| 148 | 5A | Left-hand tail lamp |
| 149 | 5A | Right-hand tail lamp |
| 158 | 20A | Transmission fluid pump |
| 159 | 5A | Not used (spare) |
| 160 | 10A | On-board diagnostic connector, Gateway module |
| 169 | 10A | Not used (spare) |
| 170 | 10A | Not used (spare) |
| 171 | 10A | Not used (spare) |
| 181 | 5A | Headlamp control module |
| 182 | 30A | Body control module |
| 183 | 30A | Not used (spare) |
| 184 | 7.5A | Wireless accessory charging module |
