Ford F-150 2024 Fuse Box Info

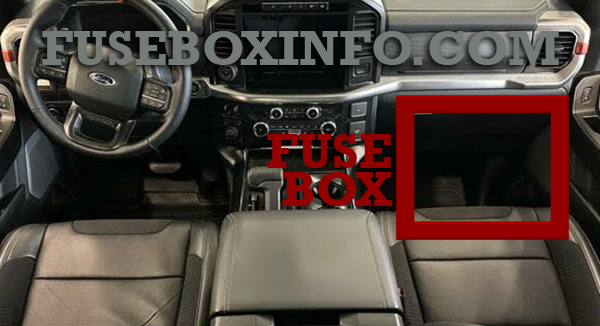

Passenger compartment fuse box location:
The fuse box is in the right-hand side of the passenger footwell behind a trim panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 3 | 7.5A | Wireless charger |
| 6 | 10A | Driver power window switch |
| 7 | 10A | Gear shift module |
| 8 | 7.5A | Cell phone passport module |
| 9 | 5A | Overhead console combined sensing module |
| 10 | 25A | Multi-contour seat module |
| 12 | 5A | Climate control |
| 13 | 7.5A | Steering column control module |
| 19 | 5A | Head up display |
| 20 | 5A | Ignition switch |
| 23 | 30A | Driver door control module |
| 24 | 30A | Moonroof |
| 26 | 30A | Passenger door control module |
| 30 | 10A | USB charging port 1 |
| 31 | 10A | Terrain management switch |
| 32 | 20A | Audio control module |
| 33 | 5A | Instrument cluster display |
| 35 | 5A | Electronic toll collection |
| 36 | 5A | Interior temperature sensor |
| 37 | 15A | Adjustable pedals |
| 38 | 5A | Exterior mirrors |
| 39 | 5A | Driver monitor |
| 40 | 30A | Amplifier |
| 41 | 10A | Navigation |
| 42 | 15A | Voice control module |
| 43 | 30A | Tailgate |
| 44 | 40A | Driver seat |
| 45 | 30A | Passenger seat |
| 52 | 5A | Tailgate brake lamp |
| 53 | 5A | Climate controlled rear seats |
| 55 | 5A | Electrochromatic rear view mirror |
| 60 | 10A | Rear sliding window, Moonroof, Driver power window |
| 61 | 30A | Rear power window switch |
| 70 | 20A | Adaptive driver assistance systems |
| 71 | 5A | High mounted camera |
| 72 | 15A | Towing trailer connector |
| 80 | 15A | Steering column control, Heated steering wheel |
| 101 | 10A | USB charge port 3 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Body control module - battery power in feed 1 |
| 2 | 30A | Body control module - battery power in feed 2 |
| 3 | 30A | Body control module - power feed 3 |
| 4 | 50A | Electric brake booster |
| 5 | 50A | Customer interface module 1 |
| 6 | 40A | Climate control module |
| 7 | 50A | Electric brake booster |
| 8 | 30A | Trailer tow 1 |
| 9 | 50A | Customer interface module 2 |
| 10 | 30A | Trailer tow braking |
| 13 | 40A | All wheel drive module |
| 14 | 10A | Hybrid powertrain control module, Powertrain control module |
| 15 | 25A | Powertrain control module |
| 16 | 20A | Vehicle power 2 |
| 17 | 10A | Vehicle power 3 |
| 18 | 20A | Vehicle power 4 |
| 19 | 20A | Transmission |
| 22 | 15A | Right headlamp |
| 23 | 15A | Left headlamp |
| 24 | 30A | Starter |
| 26 | 30A | Fuel pump |
| 27 | 20A | Power outlet 1 |
| 28 | 20A | Power outlet 2 |
| 29 | 20A | Power outlet 3 |
| 31 | 30A | Front wiper motor |
| 32 | 5A | Rain switch |
| 34 | 15A | Multi access tailgate switch |
| 36 | 30A | Body control module - power feed 4 |
| 42 | 20A | Trailer brake control module |
| 43 | 30A | Interior power distribution box - run/start power |
| 46 | 20A | Rear seat climate control |
| 47 | 15A | Spotlight |
| 49 | 5A | Electric brake booster |
| 50 | 5A | Powertrain control module |
| 53 | 10A | Air quality/Oxides of nitrogen sensor |
| 54 | 40A | Rear heated windshield |
| 59 | 25A | Horn |
| 60 | 30A | Trailer tow park lamps |
| 61 | 15A | Upfitter 2 relay (Raptor, Tremor, Raptor R) |
| 62 | 40A | Blower motor |
| 63 | 10A | Trailer tow connector |
| 66 | 25A | Rear sliding window |
| 69 | 5A | Power steering module |
| 70 | 10A | Diagnostic connector |
| 75 | 50A | Electric fan 1 |
| 76 | 50A | Electric fan 2 |
| 79 | 5A | Adaptive front light |
| 82 | 5A | Hybrid powertrain control module |
| 84 | 15A | Fuel injectors |
| 95 | 15A | Hybrid powertrain control module |
| 98 | 10A | Engine cooling valve |
| 146 | 10A | Traction battery control module |
| 159 | 5A | DC/DC power |
| 168 | 15A | Traction battery control |
| 169 | 10A | Motor electric coolant pump |
| 170 | 10A | Auxiliary water pump |
| 172 | 30A | Fuel pump 2 |
| 173 | 15A | Upfitter 1 |
| 174 | 15A | Upfitter 2 |
| 175 | 10A | Upfitter 3 |
| 176 | 10A | Upfitter 4 |
| 177 | 5A | Upfitter 5 |
| 178 | 5A | Upfitter 6 |
| 179 | 15A | Charge air pump |
| 181 | 40A | Intercooler fan |
| R04 | - | Electronic fan relay 1 |
| R06 | - | Electronic fan relay 3 |
| R35 | - | Not used |
| R36 | - | Not used |
