Ford Bronco Sport 2025 Fuse Box Info
Passenger compartment fuse box location:

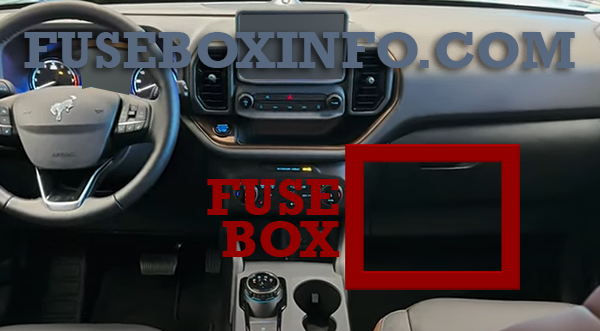

The fuse box is below the glove compartment, behind the cover.

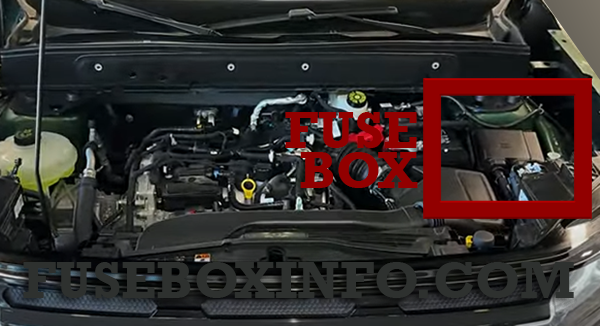

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not used (spare) |
| 2 | 5A | Not used (spare) |
| 3 | 10A | Not used (spare) |
| 4 | 10A | Integrated control panel, Media display, Enhanced gateway |
| 5 | 20A | Lock, Unlock |
| 6 | 10A | Delayed accessories - glass roof, 400W Inverter |
| 7 | 30A | Passenger door module |
| 8 | 5A | Not used (spare) |
| 9 | 5A | Auto-dimming interior mirror, Passenger airbag deactivation indicator |
| 10 | 10A | Extended power module |
| 11 | 5A | Telematics control unit, Remote transceiver module |
| 12 | 5A | Not used (spare) |
| 13 | 15A | Driver door unlock |
| 14 | 30A | Driver door module |
| 15 | 15A | Run/Start Extended power module |
| 16 | 15A | Not used (spare) |
| 17 | 15A | SYNC |
| 18 | 7.5A | Wireless accessory charging module, All terrain control module |
| 19 | 7.5A | Not used (spare) |
| 20 | 10A | Not used (spare) |
| 21 | 7.5A | Climate control module, Gear shift module, Ignition switch |
| 22 | 7.5A | Instrument cluster, Steering column controls module |
| 23 | 20A | Audio head unit |
| 24 | 20A | Not used (spare) |
| 25 | 30A | Window switches |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Body control module/Vehicle battery 2 |
| 2 | 30A | Body control module - Run/start relay |
| 4 | 20A | Fuel pump 1 |
| 6 | 15A | Powertrain control module power supply 1 |
| 7 | 15A | Powertrain control module power supply 2 |
| 8 | 15A | Powertrain control module power supply 3 |
| 9 | 15A | Powertrain control module power supply 4 |
| 11 | 30A | Starter motor |
| 12 | 10A | A/C clutch |
| 13 | 40A | Blower motor |
| 14 | 10A | Not used |
| 15 | 20A | Horn |
| 16 | 20A | Rear window washer pump |
| 21 | 10A | Auxiliary accessory overhead switch pack |
| 22 | 5A | Power steering module |
| 23 | 10A | Anti-lock brake system |
| 24 | 10A | Powertrain control module |
| 25 | 20A | Advanced driver assistance system - driver assist module |
| 27 | 10A | All wheel drive module power supply #2 |
| 28 | 40A | Anti-lock brake system valves |
| 29 | 60A | Anti-lock brake system pump |
| 30 | 30A | Driver seat module, Driver power seat |
| 31 | 30A | Passenger power seat |
| 32 | 20A | Media bin power point |
| 33 | 20A | Center console power point |
| 34 | 20A | Rear cargo power point |
| 36 | 40A | Not used |
| 36B | 60A | 400W power inverter |
| 37 | 30A | Glass roof |
| 39 | 20A | Heated seats |
| 44 | 10A | Not used |
| 47 | 60A | Cooling fan |
| 50 | 30A | Rear defrost |
| 51 | 10A | Heated mirrors |
| 54 | 40A | All wheel drive module |
| 62 | 10A | Upfitter relay #4 |
| 63 | 10A | Upfitter relay #3 |
| 68 | 10A | Upfitter relay #2 |
| 69 | 30A | Wiper motor |
| 71 | 20A | Right rear wiper |
| 77 | 10A | Not used |
| 79 | 20A | Not used |
| 83 | 40A | Positive temperature coefficient heater bank #1 |
| 84 | 60A | Positive temperature coefficient heater bank #2 |
| 85 | 40A | Positive temperature coefficient heater bank #3 |
| 86 | 5A | Floodlight |
| 91 | 40A | Trailer tow |
| 93 | 5A | Headlamp switch |
| 120 | 15A | Port fuel injectors |
| 124 | 5A | Rain sensors |
| 125 | 5A | Smart USB charger |
| 134 | 30A | Not used |
| 136 | 20A | Amplifier #1 |
| 137 | 20A | Amplifier #2 |
| 139 | 10A | Center rear console USB charger |
| 146 | 10A | Not used |
| 157 | 25A | Driver side headlamp |
| 158 | 25A | Passenger side headlamp |
| 160 | 15A | Heated steering wheel |
| 183 | 15A | Liftgate glass release |
| 186 | 10A | On-board diagnostic connector 2 |
| 200 | 30A | Upfitter relay #1 |
