Honda Pilot 2025 Fuse Box Info

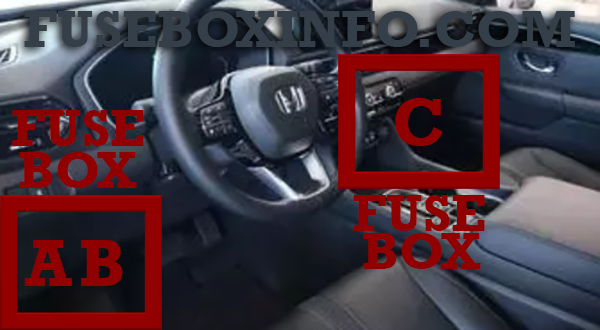

Passenger compartment fuse box location:
The interior fuse box A, and fuse box B is located under the dashboard. The interior fuse box C is located on the lower side panel.

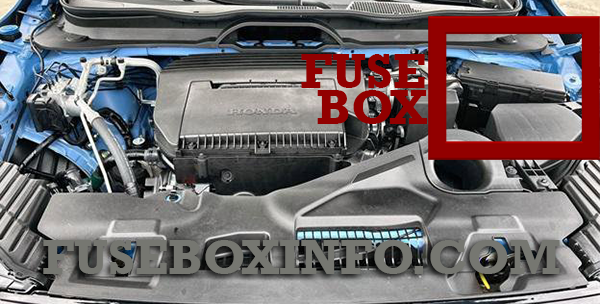

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Driver’s Power Window |
| 2 | 30A | Front Passenger’s Power Window |
| 3 | 30A | Rear Right Side Power Window |
| 4 | 30A | Rear Left Side Power Window |
| 5 | 10A | Option |
| 6 | 10A | SRS |
| 7 | (10A) | Tailgate Motor* |
| 8 | - | - |
| 9 | (20A) | Rear Accessory Power Socket* |
| 10 | 20A | Door Lock Main |
| 11 | 10A | Meter |
| 12 | 10A | Transmission |
| 13 | 10A | Rear Wiper |
| 14 | - | - |
| 15 | (10A) | Driver’s Door Unlock |
| 16 | (20A) | Panoramic Roof* |
| 17 | - | - |
| 18 | (20A) | HAC ACCESSORY* |
| 19 | (10A) | AWD* |
| 20 | - | - |
| 21 | - | - |
| 22 | 10A | Keyless Access System |
| 23 | (10A) | Driver’s Door Lock |
| 24 | - | - |
| 25 | 10A | Shifter |
| 26 | 10A | SRS |
| 27 | 15A | ACG |
| 28 | 10A | ABS/VSA |
| 29 | 20A | FUEL PUMP |
| 30 | 10A | Left Side Door Unlock |
| 31 | 10A | Right Side Door Unlock |
| 32 | (20A) | Sunshade* |
| 33 | 10A | IMG |
| 34 | - | - |
| 35 | 10A | USB Charger |
| 36 | - | - |
| 37 | (10A) | Audio Amp* |
| 38 | 20A | Rear Seat Act |
| 39 | 10A | Right Side Door Lock |
| 40 | (20A) | Driver’s Power Seat Slide* |
| 41 | (20A) | Driver’s Power Seat Recline* |
| 42 | 10A | Starter |
| 43 | 10A | AIRCON |
| 44 | 10A | DRL |
| 45 | 10A | Accessory |
| 46 | - | - |
| 47 | 10A | Left Side Door Lock |
| 48 | - | - |
| 49 | (20A) | Front Passenger’s Power Seat Slide |
| 50 | (10A) | Driver’s Power Seat Lumbar* |
| 51 | - | - |
| 52 | - | - |
| 53 | (20A) | Front Passenger’s Power Seat Recline* |
| 54 | - | - |
| 55 | (30A) | Audio Amp* |
| 56 | - | - |
Passenger compartment fuse box (Fuse box B):
| Fuse/Relay Name | Rating | Functions |
| A | (10A) | Option |
| B | (10A) | Accessory |
| C | (15A) | Audio |
| D | (10A) | Surround View Camera System* |
| E | (20A) | Audio |
| F | - | - |
| G | (15A) | Meter |
| H | (10A) | MICU |
Passenger compartment fuse box (Fuse box C):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 10A | A/C Compressor |
| 3 | (10A) | Heated Steering Wheel* |
| 4 | (15A) | Heated Windshield* |
| 5 | (10A) | Fog Lights* |
| 6 | 15A | FI Sub |
| 7 | 20A | Front Seat Heaters* |
| 8 | - | - |
| 9 | - | - |
| 10 | (20A) | Second Row Seat Heaters* |
| 11 | - | - |
| 12 | 20A | Front Accessory Power Socket |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 225A | BATTERY |
| 2 |
(30A) (30A) 80A 70A 60A 60A 30A |
Idle Stop 1 Idle Stop 2 EPS FET Main 1 Fuse Box Main 1 Fuse Box Option 1 Rear Blower |
| 3 |
30A 30A 30A 40A (40A) 40A 60A |
ACM Starter Cut Sub Fan Motor Heater Motor Accessory Power Socket Main* Rear Defogger Fuse Box Option 2 |
| 4 |
(30A) 40A (40A) 40A 60A 30A 60A |
AC Power Outlet* EBB Power Tailgate* ABS/VSA FSR - Wiper Motor Fuse Box Main 2 |
| 5 |
30A 40A 30A 30A 30A (30A) 30A |
FET Main 2 ABS/VSA Motor IG Main 2 SRM 2 SRM 1 AWD* IG Main 1 |
| 6 | 30A | Condenser Fan |
| 7 | (30A) | Trailer Main* |
| 8 | (20A) | Power Tailgate* |
| 9 | (15A) | Back Up Audio* |
| 10 | - | - |
| 11 | 10A | Back Up |
| 12 | (20A) | Trailer Charge* |
| 13 | (20A) | Trailer Brake* |
| 14 | 15A | Horn |
| 15 | - | - |
| 16 | 10A | VBU |
| 17 | - | - |
| 18 | - | - |
| 19 | 20A | FI Main |
| 20 | 20A | Injector |
| 21 | 15A | TCU 1 |
| 22 | 15A | IG Coil |
| 23 | 15A | Hazard |
| 24 | 15A | Right H/L |
| 25 | 5A | Stop |
| 26 | 15A | Left H/L |
| 27 | 10A | TCU 3 |
| 28 | 10A | TCU 2 |
| 29 | - | - |
| 30 | - | - |
| 31 | 15A | Front Washer |
| 32 | 10A | Battery Sensor |
| 33 | 10A | Shutter Grille |
| 34 | 5A | IG1 START |
| 35 | 5A | Battery Fan |
| 36 | 5A | FI ECU |
| 37 | - | - |
| 38 | 5A | IG1 PCS |
| 39 | 10A | IGPS RAD |
| 40 | (10A) | IGPS VSSV* |
| 41 | - | - |
* Not available on all models
