Honda Passport 2026 Fuse Box Info
Passenger compartment fuse box location:

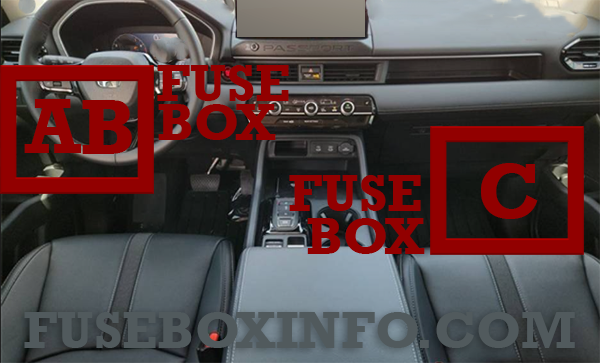

The interior fuse boxes A and B are located under the dashboard on the driver’s side. The interior fuse box C is located on the lower side panel.

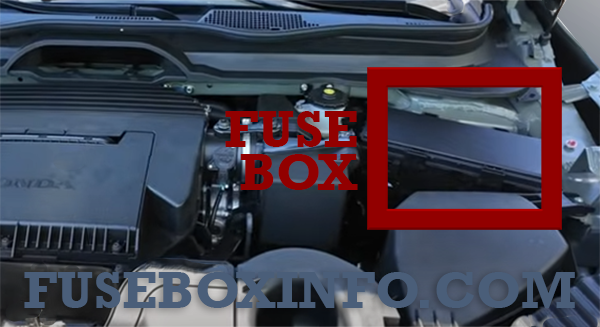

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | DRIVER POWER WINDOW |
| 2 | 30A | PASSENGER POWER WINDOW |
| 3 | 30A | REAR R POWER WINDOW |
| 4 | 30A | REAR L POWER WINDOW |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | - | - |
| 8 | - | - |
| 9 | (20A) | REAR ACCESSORY* |
| 10 | 20A | DOOR LOCK MAIN |
| 11 | 10A | METER |
| 12 | 10A | TRANSMISSION |
| 13 | 10A | REAR WIPER |
| 14 | - | - |
| 15 | 10A | DRIVER DOOR UNLOCK |
| 16 | (20A) | SUNROOF* |
| 17 | - | - |
| 18 | (20A) | HAC ACCESSORY* |
| 19 | 10A | ALL WHEEL DRIVE |
| 20 | 10A | DISPLAY |
| 21 | - | - |
| 22 | 10A | SMART ENTRY |
| 23 | 10A | DRIVER DOOR LOCK |
| 24 | - | - |
| 25 | 10A | SHIFTER |
| 26 | 10A | SRS |
| 27 | 15A | ACG |
| 28 | 10A | VSA/ABS |
| 29 | 20A | FUEL PUMP |
| 30 | 10A | LEFT DOOR UNLOCK |
| 31 | 10A | RIGHT DOOR UNLOCK |
| 32 | (20A) | SUNSHADE* |
| 33 | 10A | CGW |
| 34 | - | - |
| 35 | 10A | FRONT USB CHARGE |
| 36 | 10A | REAR USB CHARGE |
| 37 | - | - |
| 38 | - | - |
| 39 | 10A | RIGHT DOOR LOCK |
| 40 | 20A | DRIVER SEAT SLIDE |
| 41 | 20A | DRIVER SEAT RECLINE |
| 42 | 10A | STARTER |
| 43 | 10A | AIRCON |
| 44 | 10A | DRL |
| 45 | 10A | ACCESSORY |
| 46 | - | - |
| 47 | 10A | LEFT DOOR LOCK |
| 48 | - | - |
| 49 | 20A | PASSENGER SEAT SLIDE |
| 50 | 10A | DRIVER SEAT LUMBAR |
| 51 | - | - |
| 52 | - | - |
| 53 | 20A | PASSENGER SEAT RECLINE |
| 54 | - | - |
| 55 | (30A) | AUDIO AMP* |
| 56 | - | - |
* Not available on all models
Passenger compartment fuse box (Fuse box B):
| Fuse/Relay N° | Rating | Functions |
| A | 10A | OPTION |
| B | 10A | ACCESSORY |
| C | 15A | AUDIO |
| D | (10A) | MVC* |
| E | 20A | AUDIO |
| F | - | - |
| G | 15A | METER |
| H | 10A | MICU |
* Not available on all models
Passenger compartment fuse box (Fuse box C):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 10A | A/C COMPRESSOR |
| 3 | (10A) | HEATED STEERING WHEEL* |
| 4 | (15A) | FR DEICER* |
| 5 | (10A) | FRONT FOG LIGHTS* |
| 6 | 15A | FI SUB |
| 7 | 20A | FRONT HEATED SEAT |
| 8 | - | - |
| 9 | - | - |
| 10 | (20A) | REAR HEATED SEAT* |
| 11 | - | - |
| 12 | 20A | FRONT ACC SOCKET |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 225A | BATTERY |
| 2 |
30A 30A 80A 70A 60A 60A 30A |
IDLE STOP 1 IDLE STOP 2 EPS FET MAIN 1 FUSE BOX MAIN 1 FUSE BOX OP 1 RR BLOWER |
| 3 |
30A 30A - 40A 40A 40A 60A |
ACM STARTER CUT - RAD FAN 1 ACC SOCKET MAIN RR DEF FUSE BOX OP 2 |
| 4 |
40A 40A - 40A 40A (30A) 60A |
EBB PTG - HEATER MTR ABS/VSA FSR AC INVERT* FUSE BOX MAIN 2 |
| 5 |
30A 40A 30A 30A 30A 30A 30A |
FET MAIN 2 ABS/VSA MOTOR IG MAIN 2 SRM 2 SRM 1 4WD IG MAIN 1 |
| 6 | 40A | RAD FAN 2 |
| 7 | 30A | WIPER MOTOR |
| 8 | 20A | PTG |
| 9 | (20A) | ICB SUB* |
| 10 | 10A | RFC RELAY |
| 11 | 10A | BACK UP |
| 12 | (20A) | Trailer Battery* |
| 13 | (20A) | Trailer Electric Brake* |
| 14 | 15A | HORN |
| 15 | (10A) | Trailer Backup Lamps* |
| 16 | 10A | VBU |
| 17 | - | - |
| 18 | (30A) | Trailer Parking Lamps* |
| 19 | 20A | FI MAIN |
| 20 | 20A | INJ |
| 21 | 15A | TCU 1 |
| 22 | 15A | IG COIL |
| 23 | 10A | HAZARD |
| 24 | 15A | R H/L |
| 25 | 5A | STOP |
| 26 | 15A | L H/L |
| 27 | 10A | TCU 3 |
| 28 | 10A | TCU 2 |
| 29 | - | - |
| 30 | (10A) | Trailer Stop/Turn Lamps* |
| 31 | 15A | FR WASHER |
| 32 | 10A | BATT SNSR |
| 33 | 10A | SHUTTER GRILLE |
| 34 | 5A | IG1 START |
| 35 | 5A | BATT FAN |
| 36 | 5A | FI ECU |
| 37 | - | - |
| 38 | 5A | IG1 PCS |
| 39 | 10A | IGPS VSSV |
| 40 | - | - |
| 41 | - | - |
* Not available on all models
