Hyundai Verna 2024 Fuse Box Info

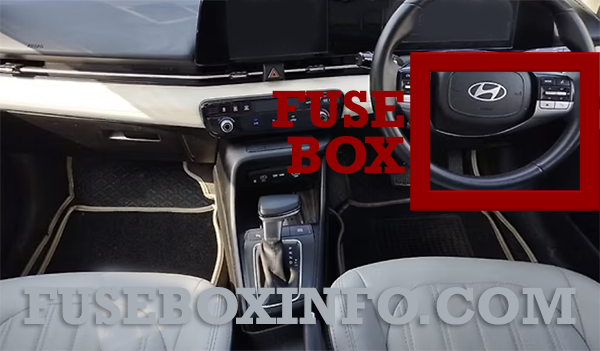

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

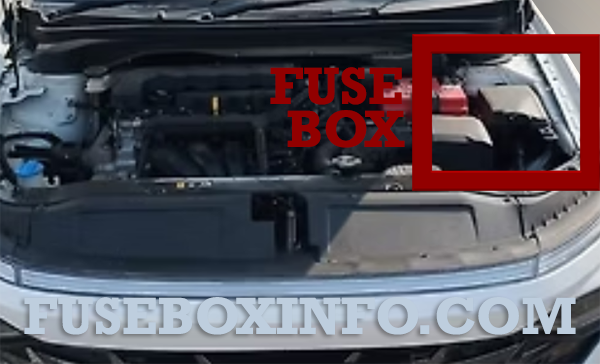

Engine compartment fuse box location:

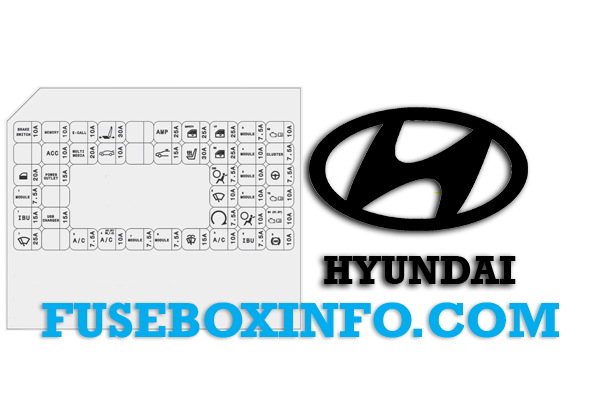

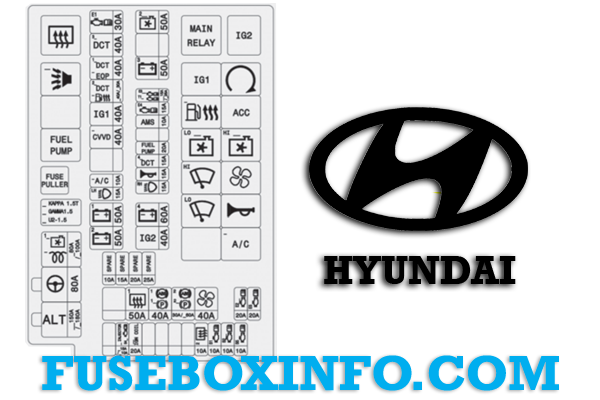

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU |
| MEMORY | 10A | Outside Mirror Folding/Unfolding Realy, Cluster Unit, DC-DC Converter, A/C Control Module |
| E-CALL | 10A | E-Call Unit |
| POWER SEAT | 30A | Driver Power Seat Unit |
| AMP | 25A | AMP, DC-DC Converter |
| SAFETY P/ WINDOW DRV |
25A | Driver Safety Power Window Module |
| P/WINDOW LH | 25A | Driver Power Window Switch, Passenger Power Window Switch (RHD) |
| MODULE3 | 7.5A | Stop Lamp Switch (G4FL/G4LH) |
| ECU6 | 10A | ECM/PCM |
| ACC | 10A | Outside Mirror Switch, AMP, A/V & Navigation Head Unit, Audio, DC-DC Converter, E-Call Unit, IBU, Front USB Charger |
| MULTI MEDIA | 20A | A/V & Navigation Head Unit, Audio, DC-DC Converter |
| TRUNK OPEN | 10A | Trunk Release Relay |
| SUNROOF | 15A | Sunroof Motor |
| SEAT HEATER | 30A | Front Seat Unit, Front Seat Heater Unit |
| P/WINDOW RH | 25A | Driver Power Window Switch, Passenger Power Window Switch (LHD) |
| MODULE4 | 10A | Front Radar(G4FL/G4LH), EPB Switch, Front View Camera, BSD Unit LH/RH, Crash Pad Switch, IBU |
| CLUSTER | 7.5A | Cluster Unit |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| POWER OUTLET |
15A | Front USB Charger (India) |
| POWER OUTLET |
20A | Front USB Charger (India Except) |
| A/BAG IND | 7.5A | Cluster Unit, Rear Seat Belt Indicator |
| MODULE2 | 10A | Rear Seat Belt Indicator |
| MDPS | 7.5A | MDPS Unit |
| MODULE1 | 7.5A | Data Link Connector, TSG Lever, Hazard Switch |
| WIPER FRT2 | 10A | Front Wiper Motor, E/R Junction Block (RLY.7) |
| MODULE5 | 10A | A/C Control Module, DC-DC Converter, Crash Pad Switch, Smartphone Wireless Charger Unit, Electro Chromic Mirror, Data Link Connector, A/V & Navigation Head Unit, Audio, Head Lamp LH/RH, Front Seat Unit, Front Seat Heater Unit, Front Air Ventilation Seat Unit, AMP |
| TCU2 | 10A | Electronic Oil Pump(G4FL), TCM(G4LH/D4FA), Transaxle Range Switch, TSG Lever(G4LH) |
| IBU1 | 15A | IBU |
| USB CHARGER | 10A | Rear USB Charger |
| START | 7.5A | Transaxle Range Switch, IBU, ECM, Ignition Lock & Clutch Switch (D4FA) |
| AIRBAG | 10A | SRS Control Module |
| SENSOR4 | 10A | CVVVD Actuator(G4LH), Fuel Filter Warning Sensor (D4FA), Glow Relay Unit (D4FA) |
| WIPER FRT1 | 25A | Front Wiper Motor, E/R Junction Block (RLY.7) |
| A/C2 | 7.5A | Air Quality Sensor, A/C Compressor |
| A/C4 | 10A | Air Quality Sensor, A/C Compressor |
| MODULE7 | 7.5A | Front Seat Unit, Front Seat Heater Unit, Front Air Ventilation Seat Unit |
| MODULE6 | 7.5A | IBU |
| WASHER | 15A | Multifunction Switch |
| A/C3 | 7.5A | A/C Blower Motor, E/R Junction Block (RLY.12) |
| IBU2 | 7.5A | IBU |
| ABS3 | 10A | ABS Control Module, ESP Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Main Relay Relay (RLY.1) | ||
| RR HTD Relay (RLY.15) | ||
| IG2 Relay (RLY.2) | ||
| IG1 Relay (RLY.3) | ||
| Fuel Heater Relay (RLY.4) | ||
| C/FAN-LO Relay (RLY.5) | ||
| Wiper-HI Relay (RLY.6) | ||
| Wiper-LO Relay (RLY.7) | ||
| Start Relay (RLY.9) | ||
| ACC Relay (RLY.10) | ||
| C/FAN-HI Relay (RLY.11) | ||
| Blower Relay (RLY.12) | ||
| Horn Relay (RLY.13) | ||
| A/C Relay (RLY.14) | ||
| B/Alarm Relay (RLY.16) | ||
| Fuel Pump Relay (RLY.18) | ||
| ALT |
150A 180A(D4FA) |
Battery, (Fuse : F3A, F3C, F4, F5, F6A, F6B, F7A, F7C, F8, F9A, F11, F12, F13BC, F15, F16, F17, F23C, F24, F25AB, F25C, F26, F27, F29, F30A, F31, F32) |
| MDPS | 80A | MDPS Unit |
| C/FAN1 | 80A | G4LH : Cooling Fan Motor |
| GLOW | 100A | D4FA : Glower Relay Unit |
| ECU1 | 30A | RLY.1 |
| DCT3 | 40A | G4LH : Smart Gear Actuator |
| DCT1 | 40A | G4LH : DCT |
| EOP1 | 40A | G4FL : Electronic Oil Pump (With Smart Key) |
| DCT2 | 40A | G4LH : DCT |
| F/HTR | 30A | D4FA : RLY.4 |
| IG1 | 30A |
With Smart Key : RLY3, RLY.10 W/O Smart Key : Ignition Switch |
| CVVD | 40A | G4LH : CVVD Actuator |
| BATT1 | 50A | ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6) |
| BATT2 | 50A | ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| C/FAN2 | 50A | G4FL/G4LH : RLY.11 |
| BATT3 | 50A | ICU Junction Block (Long Term Load Latch Relay, Fuse (F1, F21, F26, F31)) |
| BATT4 | 60A | ICU Junction Block (Power Window Relay, Fuse (F4, F6, F7, F14, F16, F17)) |
| IG2 | 40A |
With Smart Key : RLY.9, RLY2 W/O Smart Key : RLY.9, Ignition Switch |
| RR HTD1 | 50A | RLY.15 |
| ABS1 | 40A | ABS/ESP Control Module (W/O EPB) |
| EPS1 | 40A | G4LH : ESP Control Module (With EPB) |
| ABS2 | 30A | ABS/ESP Control Module (W/O EPB) |
| EPS2 | 60A | G4LH : ESP Control Module (With EPB) |
| BLOWER | 40A | RLY.12 |
| A/C | 10A | D4FA : RLY.14 |
| H/LP LH | 15A | Head Lamp LH (LED) |
| ECU3 | 15A | G4FL : PCM/ECM / G4LH : ECM |
| TCU1 | 25A | D4FA : TCM |
| ECU4 | 15A | PCM/ECM |
| AMS | 10A | Battery Sensor |
| F/PUMP | 20A | RLY.18 |
| DCT4 | 15A | G4LH : DCT |
| HORN | 15A | RlY.13, G4FL/D4FA : RLY.15 (India Except) |
| H/LP RH | 15A | Head Lamp RH LED) |
| ECU2 | 20A | G4FL : PCM/ECM / G4LH : ECM |
| ECU5 | 20A | PCM/ECM |
| INJECTOR | 15A | G4FL : Injector #1~#4 |
| SENSOR4 | 10A | D4FA : Mass Air Flow Sensor, EGR Cooling Bypass Solenoid, Electronic VGT Actuator |
| IGN COIL | 20A | G4FL / G4LH : Ignition Coil #1~#4 |
| RR HTD2 | 10A | ECM/PCM, A/C Control Module, Driver/Passenger Outside Mirror |
| SENSOR1 | 10A |
G4FL : RLY.18 G4LH : RLY.18, Cooling Fan Motor D4FA : Inlet Metering Valve |
| SENSOR2 | 10A | G4FL / G4LH : Oxygen Sensor (Up/Down) |
| SENSOR5 | 10A |
G4FL : RLY.5, RLY.11, Oil Control Valve #1~#2, Purge Control Solenoid, Variable Intake Solenoid Valve G4LH : Oil Control Valve #1~#2, RCV Control Solenoid Valve, Purge Control Solenoid, Variable Oil Pump D4FA : RLY.4, RLY.5, RLY11, RLY14, Camshaft Position Sensor, Stop Lamp Switch |
