Jeep Wrangler 2005 Fuse Box Info

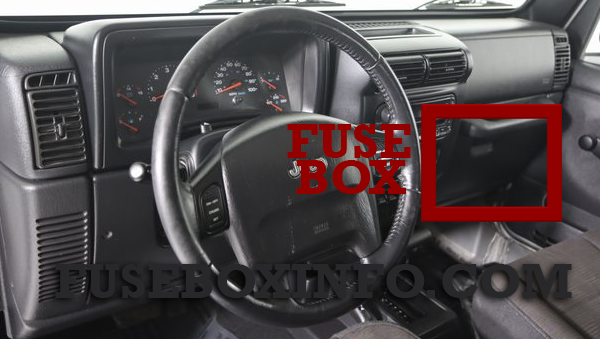

Fuse box location:
The fuse box is located behind the glove box.

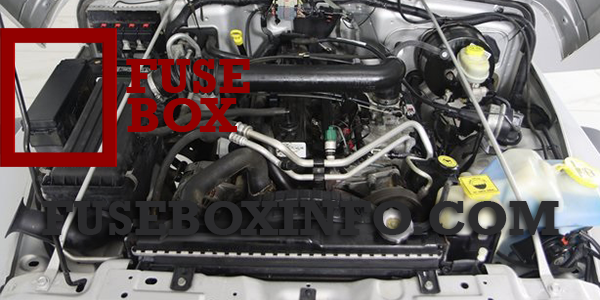

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Park Lights, Skim (Sentry Key) |
| 2 | 20A | Stop Lights |
| 3 | 20A | Subwoofer System |
| 4 | 10A | Door Switch Defeat |
| 5 | 10A | Airbag |
| 6 | 20A | Rear Wiper |
| 7 | 10A | Back-Up Lights, Rear Window Defroster Relay, ABS |
| 8 | 10A | HEVAC |
| 9 | 10A | Airbag |
| 10 | 10A | Instrument Cluster |
| 11 | 10A | Solenoids, DRL |
| 12 | 10A | Power Distribution Relays, Skim (Sentry Key) |
| 13 | 10A | Turn Signals |
| 14 | 10A | Radio |
| 15 | 10A | HBL (Rear Window Defroster) Switch |
| 16 | 10A | Headlamp Aim (Export Only) |
| 17 | 25A | Front Wiper |
| 18 | 20A | Cigar Lighter |
| 19 | 20A | Spare |
| 20 | 20A | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | HEVAC |
| 2 | 40A | HBL (Rear Window Defroster |
| 3 | 40A | Exterior Lighting |
| 4 | 40A | Radiator Fan |
| 5 | 20A | Transmission |
| 6 | 30A | Starter |
| 7 | Open | |
| 8 | 40A | ABS Motor |
| 9 | 20A | ASD |
| 10 | 40A | HD/LP |
| 11 | Open | IOD Storage |
| 12 | 30A | ABS Valve |
| 13 | 40A | Accessories |
| 14 | Open | |
| 15 | 50A | IOD |
| 16 | Open | |
| 17 | 20A | Power |
| 18 | 20A | Horn |
| 19 | 20A | Fog Lights |
| 20 | 15A | Radio |
| 21 | 10A | A/C Clutch |
| 22 | 25A | Ignition Switch |
| 23 | 20A | Fuel |
| 24 | 20A | Off Road |
| 25 | Open | |
| 26 | 10A | Accessories |
| 27 | 20A | MFSW |
| 28 | 10A | Clutch Override |
| 29 | - | ASD |
| 30 | - | A/C Clutch |
| 31 | - | Transmission |
| 32 | - | Starter |
| 33 | - | ABS |
| 34 | Open | |
| 35 | - | Fog Lamp |
| 36 | - | Horn |
| 37 | - | Fuel Pump |
| 38 | - | HBL (Rear Window Defroster) |
| 39 | - | Front Differential Locker (Rubicon) or High Speed Fan (2.4L Engines) |
| 40 | - | Rear Differential Locker (Rubicon) or Low Speed Fan (2.4L Engines) |
