Kia Sorento 2003 Fuse Box Info

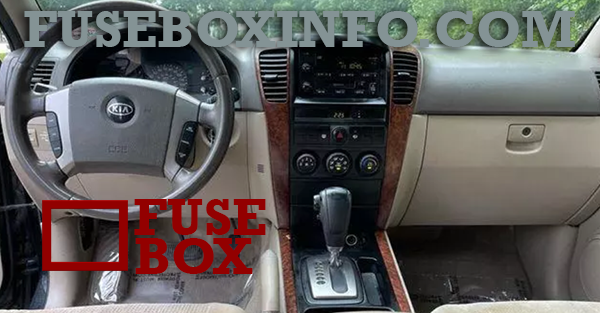

Passenger fuse box location:
The fuse box is located on the driver’s side of the vehicle under the instrument panel.

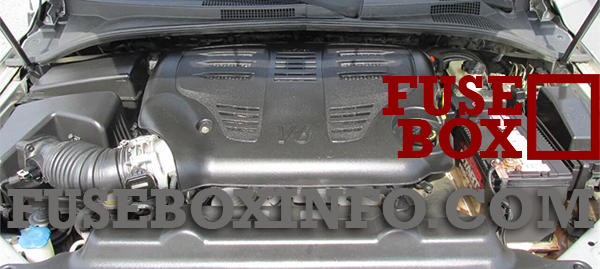

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| 1. W/SHD | 15A | Defroster |
| 2. S/ROOF | 20A | Sunroof |
| 3. START | 10A | Starting system, PCM, ACC |
| 4. HAZARD | 15A | Turn & Hazard flasher unit |
| 5. P/SCK(FRT) | 15A | Front power socket |
| 6. CIGAR | 15A | Cigar lighter |
| 7. DRL/OBD-II | 10A | Check connector |
| 8. WIPER (FRT) | 20A | Wiper & Washer, Head light, Front heater & Aircon, Cooling system, Defroster |
| 9. P/SCK (RR) | 30A | Rear power socket |
| 10. RELAY COIL | 10A | Relay coil |
| 11. WIPER (RR) | 10A | Wiper & Washer, ETWIS, Heater & Aircon, Trip computer, sunroof |
| 12. ACC | 10A | Power mirror, Cigar lighter, Power Socket, Clock, Keyless entry, Audio |
| 13. TCCS | 20A | Transfer case control unit |
| 14. FOG (RR) | 15A | Rear fog lamp |
| 15. O/S MIRROR | 10A | Electric remote control mirror |
| 16. ROOM LAMP | 10A | Instrument cluster, ETWIS, Head light, DRL, Keyless entry, Room lamp, Sunvior lamp, Clock |
| 17. S/WARMER | 20A | Seat warmer |
| 18. PREMIUM AUDIO | 30A | Audio |
| 19. STOP LAMP | 20A | Stop light |
| 20. TURN LAMP | 10A | Turn & Hazard flasher unit |
| 21. A/BAG | 10A | Airbag |
| 22. METER | 10A | PCM, ACC, Trip computer, Stop light ,DRL, ETWIS, Instrument cluster, Front heater & Aircon |
| 23. TRAILER | 15A | Trailer accessory |
| 24. ENGINE | 10A | PCM, Cooling, Speed sensor, Diagnosis connector, ACC, Instrument cluster, ABS |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| HORN | 15A | Horn |
| P/TRN | 10A | PCM, Main relay |
| INJECTOR | 15A | PCM |
| AUDIO | 20A | Audio |
| HEAD (HI) | 15A | Head Light |
| ILLUMI | 10A | Key hole illumination |
| O2 (DN) | 15A | PCM |
| HEAD (LO) | 15A | Head light |
| EXT | 15A | DRL, License lamp, Tail lamp, Position lamp, Turn lamp |
| P/W (LH) | 25A | Power window |
| O2 (UP) | 15A | PCM |
| DEF | 25A | Defroster |
| FUEL | 15A | Fuel pump relay |
| P/W (RH) | 25A | Power window |
| ECU | 10A | PCM, Cooling |
| MEMORY | 10A | Front heater & aircon, Etwis, Keyless entry system |
| F/FOG | 15A | Front fog lamp |
| IGN 2 | 30A | Ignition switch |
| BTN 3 | 40A | Turn & Hazard flasher unit, Power door lock |
| ABS 1 | 40A | ABS |
| C/FAN (1) | 40A | Cooling system |
| F/BLW | 30A | Front heater & Aircon |
| C/FAN (2) | 30A | Cooling system |
| BTN 1 | 40A | Cigar lighter, Power socket |
| IGN 1 | 40A | Ignition switch |
| BTN 2 | 30A | Power seat, PCM |
