Kia Seltos 2025 Fuse Box Info

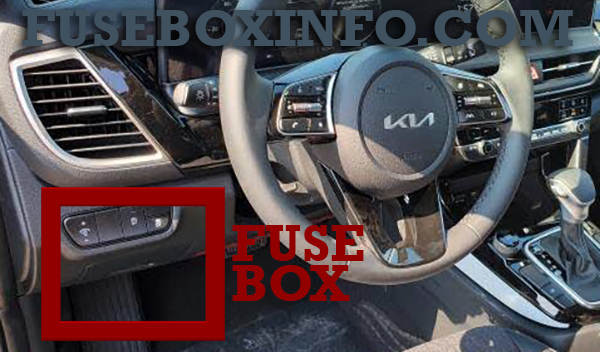

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

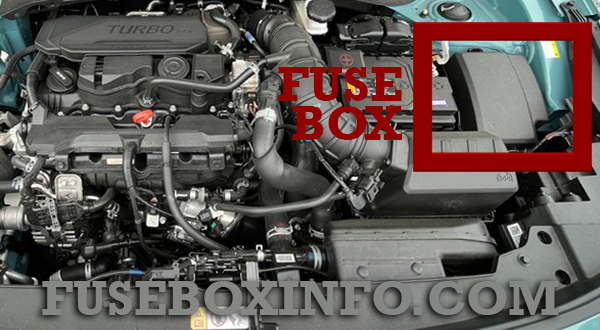

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | IMS (Driver’s memory seat) Control Module, Driver Seat Manual Switch |
| AMP | 25A | Low DC-DC Converter (AMP (Amplifier)) |
| P/WDW RH | 25A | Power Window Right Handle Side Relay |
| P/WDW LH | 25A | Power Window Left Handle Side Relay, Driver Safety Power Window Module |
| WIPER RR | 15A | Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay) |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module |
| SUNROOF | 20A | Sunroof Unit |
| TAILGATE OPEN | 10A | Tailgate (Liftgate) Relay |
| S/HEATER RR | 15A | Rear Seat Warmer Control Module |
| MODULE 1 | 7.5A | Hazard Switch, Data Link Connector, Passenger Power Window Switch, Power Window Main Switch, Power Liftgate Module, IMS (Driver’s memory seat) Control Module, Key Interlock |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU (Integrated Body Control Unit) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM (Integrated Circuit Module) Relay Box (Two Turn Unlock Relay) |
| IBU 1 | 15A | IBU (Integrated Body Control Unit) |
| START | 7.5A | ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay) [Smartstream G1.6 T-GDi] Transmission Range Switch [(Gasoline) 2.0 MPI] Position Switch |
| IAU | 10A | IAU (Identity Authentication Unit), Driver/Passenger_Handle_NFC Module |
| WIPER FRT 1 | 10A | IBU (Integrated Body Control Unit) |
| AIR BAG 2 | 10A | SRS (Supplemental Restraint System) Control Module |
| MEMORY 2 | 10A | Air Conditioner Control Module, Crash Pad Switch, Mood Lamp Unit |
| MULTIMEDIA | 15A | Low DC-DC Converter |
| MODULE 8 | 10A | IAU (Identity Authentication Unit) |
| IG1 | 25A | PCB Block (Fuse Name - ABS 3/EPB 3, ECU 5, TCU3) |
| MODULE 4 | 7.5A | Front Radar, IBU (Integrated Body Control Unit), Crash Pad Switch, AWD ECM (Engine Control Module), Front View Camera |
| HAETED MIRROR | 10A | ECM (Engine Control Module), Air Conditioner Control Module, Driver/Passenger Power Outside Mirror |
| ISG | 15A | Sound Mood Lamp, Driver/Passenger Door Mood Lamp, Low DC-DC Converter (AMP (Amplifier)), Rear Corner Radar LH/RH, Infotainment System Head Unit/Audio, Air Conditioner Control Module, Instrument Cluster, Wireless Charger |
| IBU2 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 5 | 10A | Electro Chromic Mirror, Wireless Charger, Automatic Transmission Shift Lever Indicator, Console Switch Left Handle Side Relay, Audio/Infotainment System Head Unit, Air Conditioner Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Data Link Connector, IMS (Driver’s memory seat) Control Module, Low DC-DC Converter |
| MODULE 3 | 7.5A | Stop Lamp Switch, Automatic Transmission Shift Lever |
| AIR BAG 1 | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| FRT WIPER2 | 25A | PCB Block (Front Wiper (Low) Relay), Front Wiper Motor |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| A/BAG IND | 7.5A | Overhead Console Lamp, Instrument Cluster |
| CLUSTER | 7.5A | Instrument Cluster |
| A/C 1 | 7.5A | Engine Room Junction Block (Blower Relay, PTC Heater #1/#2 Relay), Air Conditioner Control Module |
| POWER OUTLET | 20A | Front Power Outlet #2 (USB) |
| MODULE 2 | 10A | IBU (Integrated Body Control Unit), Front Power Outlet #2 (USB), Power Outside Mirror Switch, ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay), Low DC-DC Converter, Rear USB Charger |
| MODULE 6 | 7.5A | IBU (Integrated Body Control Unit) |
| A/C 2 | 10A | [Auto Air Conditioner] Blower Motor, Engine Room Junction Block (Blower Relay) [Manual Air Conditioner] Blower Resistor, Air Conditioner Control Module |
| MODULE 7 | 7.5A | Front Deicer Box (Front Deicer Left Handle Side/Right Handle Side Relay) |
| WASHER | 15A | Multifunction Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT |
150A 200A |
Alternator, Engine Room Junction Block (Fuse Name - EPB 1, ABS 1/EPB 2, ABS 2, POWER TAILGATE, 4WD) |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| B+3 | 60A | Instrument Panel Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS20) |
| B+4 | 60A | Instrument Panel Junction Block (Fuse Name - P/SEAT (DRV/PASS), AMP, P/WINDOW RH, P/WINDOW LH, S/HEATER FRT, SUNROOF, TAILGATE OPEN) |
| B+2 | 50A | Instrument Panel Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12) |
| B+5 | 50A | PCB Block (Main Relay, Fuse Name - A/C, B/ALARM HORN, ECU3, ECU4, HORN) |
| IG1 | 40A | [With Smart Key] Engine Room Junction Block (IG1 Relay, ACC Relay) [Without Smart Key] Ignition Switch |
| BLOWER | 40A | Engine Room Junction Block (Blower Relay) |
| IG2 | 40A | [With Smart Key] Engine Room Junction Block (Start Relay, IG2 Relay) [Without Smart Key] Engine Room Junction Block (Start Relay), Ignition Switch |
| COOLING FAN 1 |
80A | [Smartstream G1.6 T-GDi] Cooling Fan Motor |
| PTC HEATER 1 | 50A | Engine Room Junction Block (PTC Heater 1 Relay) |
| PTC HEATER 2 | 50A | Engine Room Junction Block (PTC Heater 2 Relay) |
| POWER OUTLET | 25A | ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay) |
| TCU 2 | 15A | [Smartstream G1.6 T-GDi] TCM (Transmission Control Module) |
| HEAD LAMP LH | 15A | Head Lamp Left Handle Side |
| HEAD LAMP RH | 15A | Head Lamp Right Handle Side |
| B+1 | 50A | Instrument Panel Junction Block (Long Term Load Auto Cut Relay, Fuse Name - S/HEATER RR, MODULE 1, BRAKE SWITCH, DOOR LOCK, IBU1, IAU, AIR BAG 2) |
| REAR HEATED | 30A | Engine Room Junction Block (Rear Heated Relay) |
| CVVD/EOP | 40A | [Smartstream G1.6 T-GDi] CVVD (Continous Variable Valve Duration) Actuator [(Gasoline) 2.0 MPI] Electronic Oil Pump Module (ISG) |
| COOLING FAN 2 |
40A | Engine Room Junction Block (Cooling Fan 1 Relay, Cooling Fan 2 Relay) |
| FUEL PUMP | 20A | Engine Room Junction Block (Fuel Pump Relay) |
| TCU 1 | 15A | PCM (Power train Control Module)/TCM (Transmission Control Module) |
| EPB 1 | 60A | [With EPB (Electronic parking brake)] ESC (Electronic Stability Control) Module |
| POWER TAILGATE | 60A | Power Tailgate (Liftgate) Module |
| ABS 1/EPB 2 | 40A | [ABS] ESC (Electronic Stability Control) Module (Without EPB (Electronic parking brake) [EPB] ESC (Electronic Stability Control) Module (With EPB (Electronic parking brake) |
| ABS 2 | 30A | [Without EPB (Electronic parking brake)] ESC (Electronic Stability Control) Module |
| 4WD | 20A | AWD ECM (Engine Control Module) |
| ECU1 | 20A | [Smartstream G1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU2 | 10A | [Smartstream G1.6 T-GDi] ECM (Engine Control Module) |
| O2 SENSOR | 15A | Oxygen Sensor (Up/Down) |
| SENSOR1 | 15A | [All] Oil Control Valve #1, Oil Control Valve #2, Air Conditioner Relay, Purge Control Solenoid Valve, Canister Close Valve [Smartstream G1.6 T-GDi] Cooling Fan Motor, RCV (Recirculation Valve Control) Control Solenoid Valve, Variable Oil Pump Valve, Oil Level Sensor [(Gasoline) 2.0 MPI] Variable Intake Solenoid Valve, Oil Control Valve #3, Engine Room Junction Block (Cooling Fan 2 Relay, Cooling Fan 1 Relay) |
| SENSOR2 | 10A | Engine Room Junction Block (Fuel Pump Relay) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| A/C | 10A | Air Conditioner Relay |
| B/ALARM HORN | 10A | Burglar Alarm Horn Relay |
| INJECTOR | 15A | [(Gasoline) 2.0 MPI] Injector #1~#4 |
| ECU5 | 10A | PCM (Power train Control Module) |
| ABS3 | 10A | [Without EPB (Electronic parking brake)] ESC (Electronic Stability Control) Module |
| EPB 3 | 10A | [With EPB (Electronic parking brake)] ESC (Electronic Stability Control) Module |
| TCU3 | 15A | [Smartstream G1.6 T-GDi] TCM (Transmission Control Module) [(Gasoline) 2.0 MPI] Electric Oil Pump (ISG) |
| ECU 5 | 10A | [Smartstream G1.6 T-GDi] ECM (Engine Control Module), CVVD (Continous Variable Valve Duration) Actuator [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU3 | 15A | [Smartstream G1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU4 | 15A | [Smartstream G1.6 T-GDi] ECM (Engine Control Module) |
| HORN | 15A | Horn Relay |
| E61 | - | IG1 Relay |
| E62 | - | BLOWER Relay |
| E63 | - | FUEL PUMP Relay |
| E64 | - | COOLING FAN 2 Relay |
| E65 | - | START Relay |
| E66 | - | IG2 Relay |
| E67 | - | ACC Relay |
| E69 | - | COOLING FAN 1 Relay |
| E70 | - | REAR HEATED Relay |
| E71 | - | PTC HEATER 1 Relay |
| E72 | - | PTC HEATER 2 Relay |
