Kia PV5 2026 Fuse Box

Kia Hits: 33

Kia PV5 2026 Fuse Box Info

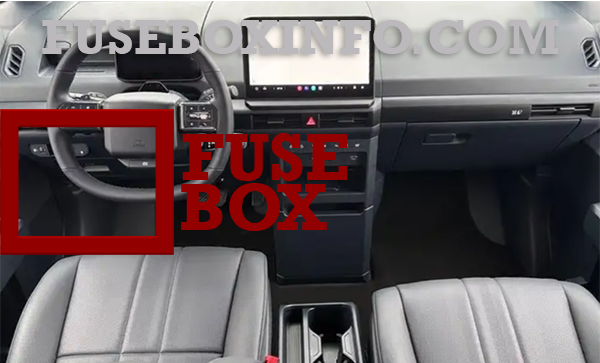

Passenger compartment fuse box location:

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

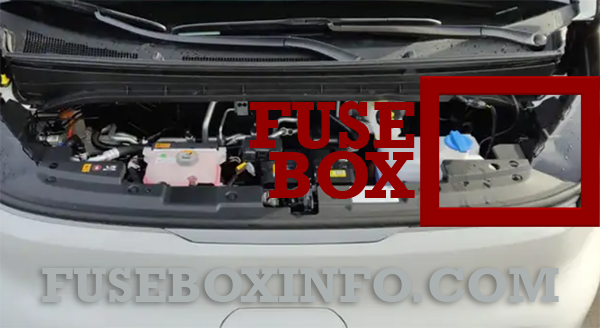

Under hood compartment fuse box location:

Fuse Box Diagram | Layout

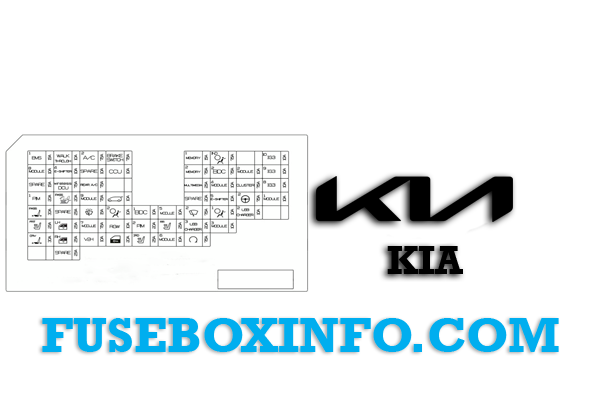

Passenger compartment fuse box:

Fuse/Relay Name	Rating	Position
BMS	15A	FS01
WALK THROUGH	10A	FS02
SPARE	10A	FS02
A/C	7.5A	FS03
BRAKE SWITCH	7.5A	FS04
MEMORY	15A	FS05
A/BAG IND	7.5A	FS06
RESERVE		FS07
IG3	10A	FS08
MODULE	10A	FS09
E-SHIFTER	10A	FS10
IG2	10A	FS11
SPARE	10A	FS11
CCU	10A	FS12
MEMORY	7.5A	FS13
BDC	7.5A	FS14
MODULE	10A	FS15
IG3	10A	FS16
B+	15A	FS17
SPARE	15A	FS17
Wireless DCU	7.5A	FS18
REAR A/C	7.5A	FS19
RESERVE		FS20
MULTIMEDIA	25A	FS21
MODULE	10A	FS22
CLUSTER	7.5A	FS23
IG3	10A	FS24
PIM	20A	FS25
SPARE	20A	FS25
SEAT FOLDING PASS	20A	FS26
SPARE	20A	FS26
MODULE	7.5A	FS27
SPARE	7.5A	FS27
TAILGATE OPEN	10A	FS28
SUNROOF	20A	FS29
SPARE	20A	FS29
E-SHIFTER	10A	FS30
MDPS	7.5A	FS31 MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)
MODULE	10A	FS32
P/SEAT PASS	30A	FS33
S/HEATER RR LH	25A	FS34
SPARE	25A	FS34
WASHER	15A	FS35
AIR BAG	10A	FS36
BDC	10A	FS37
MODULE	10A	FS38
WIPER FRT	7.5A	FS39
AIR BAG	10A	FS40
USB CHARGER	10A	FS41
RESERVE		FS42
S/HEATER FRT	25A	FS43
P/WINDOW LH	25A	FS44
MODULE	7.5A	FS45
RGW	10A	FS46
SPARE	10A	FS46
PIM	20A	FS47
SPARE	20A	FS47
S/HEATER RR	25A	FS48
USB CHARGER	20A	FS49
MODULE	10A	FS50
P/SEAT DRV	30A	FS51
P/WINDOW RH	25A	FS52
SPARE	10A	FS53
V2H	10A	FS53
DOOR LOCK	25A	FS54
3rd_S/HEATER	25A	FS55
MODULE	10A	FS56
START	7.5A	FS57
RESERVE		FS58
S/HEATER RR RH	25A	FS59
SPARE	25A	FS59
LongTermLoadLatchRelay		RLY1
DOOR LOCK		RLY2
DOOR UNLOCK		RLY3
RESERVE		RLY4
RESERVE		RLY5
START INHIBIT RLY		RLY6
TWO TURN UNLOCK / CHARGE DR UNLOCK		RLY7
TAILGATE OPEN		RLY8

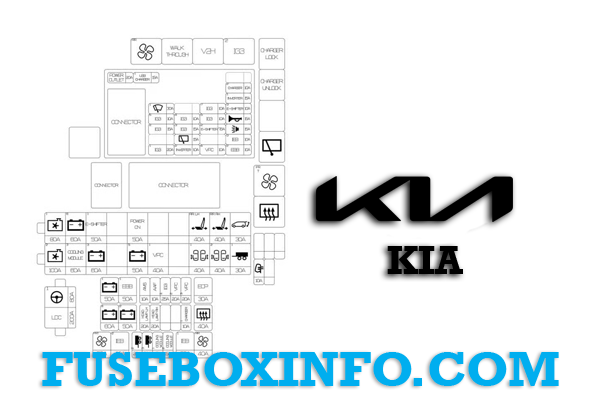

Under hood compartment fuse box:

Fuse/Relay Name	Rating	Position
POWER OUTLET	20A	F01
USB CHARGER	15A	F02
WIPER FRT	30A	F03
IG3	10A	F04
IG3	15A	F05
RESERVE	20A	F06
IG3	20A	F07
RESERVE		F08
IG3	10A	F09
IG3	15A	F10
WIPER RR	15A	F11
INVERTER	10A	F12
IG3	10A	F13
IG3	10A	F14
E-SHIFTER	7.5A	F15
RESERVE		F16
VPC	10A	F17
RESERVE		F18
CHARGER	10A	F19
INVERTER	15A	F20
E-SHIFTER	10A	F21
HORN	15A	F22
B/ALARM HORN	15A	F23
IEB	10A	F24
EBB	10A	F25
COOLING FAN	80A	F26
B+	60A	F27
E-SHIFTER	50A	F28
SPARE	50A	F29
POWER ON	50A	F30
SPARE	50A	F31
SPARE	40A	F32
P/SEAT RR LH	40A	F33
P/SEAT RR RH	40A	F34
POWER TAILGATE	30A	F35
COOLING FAN	100A	F36
COOLING MODULE	60A	F37
B+	60A	F38
SPARE	60A	F39
B+	50A	F40
VPC	40A	F41
SPARE	40A	F42
PSD	40A	F43
PSD	40A	F44
TRAILER	30A	F45
RESERVE		F46
RESERVE		F47
RESERVE		F48
B+	50A	F49
EBB	50A	F50
AMS	10A	F51
AAF	10A	F52
IG3	25A	F53
VPC	20A	F54
VPC	20A	F55
EOP	30A	F56
HEATED MIRROR	10A	F57
RESERVE		F58
MDPS	80A	F59 MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)
B+	60A	F60
B+	50A	F61
HEAD LAMP LH	20A	F62
HEAD LAMP RH	20A	F63
RESERVE		F64
RESERVE		F65
CHARGER	10A	F66
REAR HEATED	40A	F67
LDC	200A	F68
BLOWER	50A	F69
IEB	40A	F70
TRAILER	20A	F71
TRAILER	20A	F72
COOLING MODULE	15A	F73
COOLING MODULE	15A	F74
IEB	60A	F75
BLOWER RR	40A	F76
BLOWER		RLY1
WALK THROUGH		RLY2
V2H		RLY3
IG3		RLY4
CHARGER LOCK		RLY5
CHARGER UNLOCK		RLY6
RESERVE		RLY7
WIPER RR		RLY8
BLOWER		RLY9
REAR HEATED		RLY10
RESERVE		RLY11

Under hood compartment fuse box (PCB Relay):
