Land Rover Discovery Sport 2026 Fuse Box Info

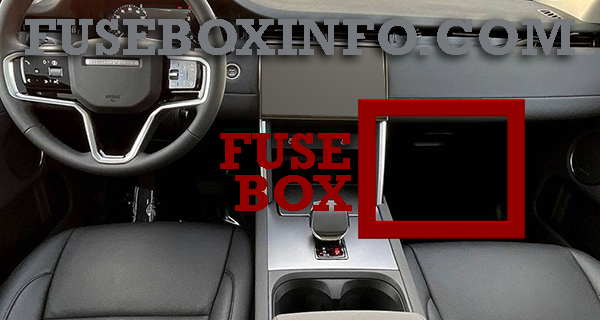

Passenger compartment fuse box location:
The fuse panel is located on the right side, under the glove box, behind the lower access panel.

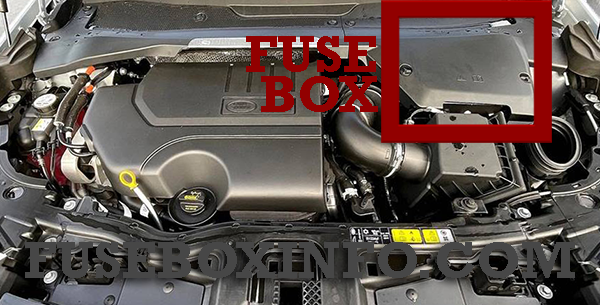

Engine compartment fuse box location:

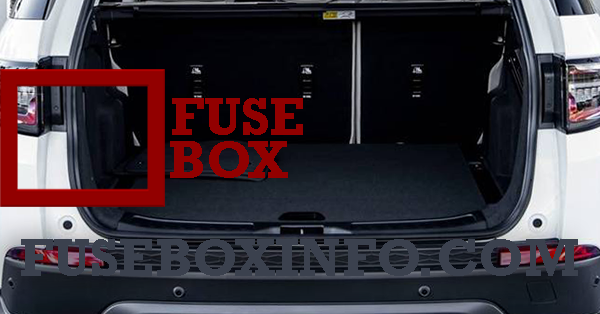

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Front left-side seat |
| 2 | 30A | Front right-side seat |
| 3 | 25A | Front passenger's door module |
| 4 | 25A | Driver's door module |
| 5 | 5A | Keyless entry |
| 6 | - | - |
| 7 | - | - |
| 8 | 5A | Hybrid system |
| 9 | 5A | Radio Frequency (RF) receiver, Tire Pressure Monitoring System (TPMS) |
| 10 | 5A | Battery back-up sounder |
| 11 | 5A | Instrument panel |
| 12 | 20A | Auxiliary heater |
| 13 | 5A | Diagnostic socket |
| 14 | 5A | Vehicle immobilizer |
| 15 | 5A | Steering wheel switches |
| 16 | 20A | Passive entry |
| 17 | - | - |
| 18 | 20A | Front blind |
| 19 | 20A | Left-side front heated and climate seat |
| 20 | 5A | Clearsight rear-view mirror, Camera |
| 21 | 5A | Blind spot monitor |
| 22 | - | - |
| 23 | - | - |
| 24 | 10A | Head-Up Display (HUD) |
| 25 | 10A | Instrument panel |
| 26 | 20A | Auxiliary power socket, Front USB sockets |
| 27 | - | - |
| 28 | 10A | Head-Up Display (HUD), Cooling fan |
| 29 | 5A | Adaptive cruise control |
| 30 | 20A | Right-side front heated and climate seat |
| 31 | 5A | Hill Descent Control (HDC), Ionizer |
| 32 | 5A | Occupancy sensor, Gesture tailgate |
| 33 | 10A | Portable audio interface |
| 34 | - | - |
| 35 | 15A | Infotainment system |
| 36 | 10A | Audio video output |
| 37 | 15A | Seat switches and memory |
| 38 | 20A | Auxiliary power socket |
| 39 | 5A | Clearsight rear-view mirror |
| 40 | - | - |
| 41 | 10A | Heated steering wheel |
| 42 | - | - |
| 43 | 20A | Heating and ventilation system, Body control module |
| 44 | - | - |
| 45 | 40A | Body control module |
| 46 | 2A | Singapore vehicles only: Electronic toll road pricing |
| 47 | 40A | Body control module |
| 48 | - | - |
| 49 | 40A | Infotainment system amplifier |
| 50 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 15A | Charge air cooler |
| 3 | 10A | Engine management system |
| 4 | - | - |
| 5 | 15A | Petrol vehicles (Engine management system), Diesel vehicles (Emissions systems) |
| 6 | 15A | Transmission |
| 7 | 10A | Spare |
| 8 | 10A | Hybrid system |
| 9 | 15A | Hybrid cooling system |
| 10 | 15A | Hybrid system |
| 11 | 5A | Steering wheel switches |
| 12 | 5A | Engine START/STOP |
| 13 | 20A | Spare |
| 14 | - | - |
| 15 | 15A | Petrol vehicles (Engine management system), Diesel vehicles (Spare) |
| 16 | 20A | Spare |
| 17 | 15A | Emissions systems |
| 18 | 30A | Glow plugs |
| 19 | 40A | Engine control module |
| 20 | 40A | Braking systems |
| 21 | 30A | Glow plugs |
| 22 | 40A | Blower motor |
| 23 | 10A | Front fog lights |
| 24 | 10A | Engine cooling |
| 25 | - | - |
| 26 | 10A | Petrol vehicles (Emissions systems), Diesel vehicles (Spare) |
| 27 | 10A | Engine management system |
| 28 | 25A | Fuel pump |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | 10A | Steering wheel switches |
| 34 | 25A | Right-side headlight |
| 35 | 25A | Left-side headlight |
| 36 | 10A | Driver assistance systems |
| 37 | 15A | Horn |
| 38 | 10A | Hybrid system |
| 39 | 20A | 4WD |
| 40 | 25A | Spare |
| 41 | 5A | Acoustic vehicle alerting system |
| 42 | 15A | Hybrid system |
| 43 | 40A | Spare |
| 44 | 40A | Heated windshield - right side |
| 45 | 40A | Hybrid system |
| 46 | - | - |
| 47 | 40A | Heated windshield - left-side |
| 48 | 40A | Diesel vehicles (Starter motor) |
| 49 | 30A | Trailer socket |
| 50 | - | - |
| 51 | 40A | Diesel vehicles (Starter motor) |
| 52 | 30A | Windshield wiper motor |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear wiper |
| 2 | - | - |
| 3 | 5A | Telematics |
| 4 | 5A | Auxiliary heater |
| 5 | 10A | Driving aids, Collision avoidance systems |
| 6 | 30A | Gesture tailgate |
| 7 | 5A | Rear climate control |
| 8 | 5A | Spare |
| 9 | 5A | Spare |
| 10 | - | - |
| 11 | 25A | Right-side rear door module |
| 12 | 20A | Trailer socket |
| 13 | - | - |
| 14 | 25A | Left-side rear door module |
| 15 | 10A | Parking aid sensors |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | 30A | Driveline control module |
| 20 | - | - |
| 21 | 20A | Loadspace accessory socket |
| 22 | 5A | Diagnostics |
| 23 | 20A | Sunroof |
| 24 | 5A | USB socket |
| 25 | 5A | Mild hybrid system |
| 26 | 20A | Left-side rear heated seat |
| 27 | - | - |
| 28 | 5A | Signal compensator |
| 29 | 10A | Wireless charger |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | 20A | Trailer socket |
| 34 | 10A | Chassis control module |
| 35 | 30A | Driveline control module |
| 36 | - | - |
| 37 | - | - |
| 38 | 15A | Rear USB socket |
| 39 | 20A | Rear climate and comfort systems |
| 40 | 10A | Rear USB socket |
| 41 | 20A | Right-side heated rear seat |
| 42 | 20A | Rear console accessory socket |
| 43 | - | - |
| 44 | 30A | Heated rear window |
| 45 | 30A | Hybrid system |
| 46 | - | - |
| 47 | 30A | Trailer lights |
| 48 | 30A | Deployable tow bar |
| 49 | - | - |
| 50 | 25A | Diesel Exhaust Fluid (DEF) |
