Mazda2 2011 Fuse Box Info
Fuse box location:
The fuse box is on the vehicle's left side.
Engine compartment fuse box:
Fuse arrangement in engine compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. TCM | ||
| 2. ILLUMI | 7.5A | Dashboard illumination |
| 3. CIGAR | 15A | Accessory Socket |
| 4. MIRROR | 7.5A | Power control mirror |
| 5. M.DEF | 7.5A | Mirror defroster* |
| 6. S.WARM | ||
| 7. A/C | 7.5A | Air conditioner |
| 8. F.WIP | 20A | Front window wiper and washer |
| 9. R.WIP | 10A | Rear window wiper and washer |
| 10. STARTER | ||
| 11. METER 2 | ||
| 12. ENG | 10A | Engine control system |
| 13. METER | 10A | Instrument cluster |
| 14. SAS | 10A | Air bag, DSC |
| 15. AUDIO 3 | ||
| 16. P/W | 30A | Power windows |
*Some models

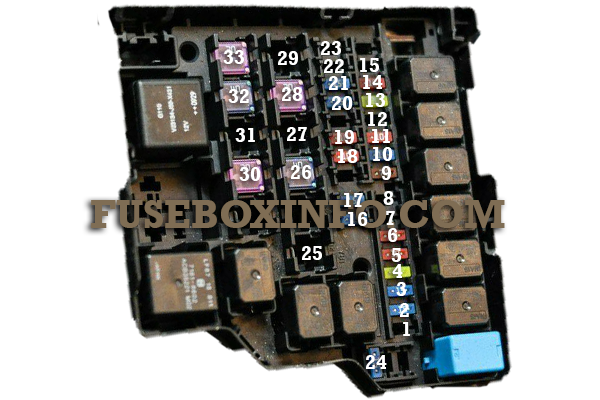

Engine compartment fuse box:
| Fuse | Rating | Functions |
| 1. | ||
| 2. FUEL PUMP | 15A | Fuel pump |
| 3. F.FOG | 15A | Fog lights* |
| 4. P/W | 20A | Power windows |
| 5. HORN | 10A | Horn |
| 6. EGI | 10A | Engine control system |
| 7. DSC-P | 30A | DSC |
| 8. DSC-V | 20A | DSC |
| 9. MAG | 7.5A | Air conditioner |
| 10. TAIL | 15A | Taillights, Parking lights, License plate lights |
| 11. STOP | 10A | Brake lights |
| 12. SWS | 7.5A | Air bag |
| 13. R.DEF | 20A | Rear window defroster |
| 14. HAZARD | 10A | Hazard warning flashers, Turn signal lights |
| 15. D/L | 20A | Power door locks |
| 16. ENG BAR | 15A | Air flow sensor, Engine control system |
| 17. ENG INJ | 15A | Engine control system |
| 18. | ||
| 19. | ||
| 20. H/L LO RH | 15A | Headlight (RH) |
| 21. H/L LO LH | 15A | Headlight (LH) |
| 22. | ||
| 23. | ||
| 24. ROOM | 15A | Overhead light |
| 25. | ||
| 26. IG KEY 1 | 40A | For protection of various circuits |
| 27. | ||
| 28. FAN 2 | 30A | Cooling fan |
| 29. | ||
| 30. IG KEY 2 | 30A | For protection of various circuits |
| 31. | ||
| 32. | ||
| 33. BLOWER | 30A | Blower motor |
*Some models
