Opel/Vauxhall Corsa 2017 Fuse Box Info
Passenger compartment fuse box location:
In left-hand drive vehicles, the fuse box is behind the the light switch. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox.
Engine compartment fuse box location:
The fuse box is in the front left of the engine compartment.
Fuse Box Diagram | Layout

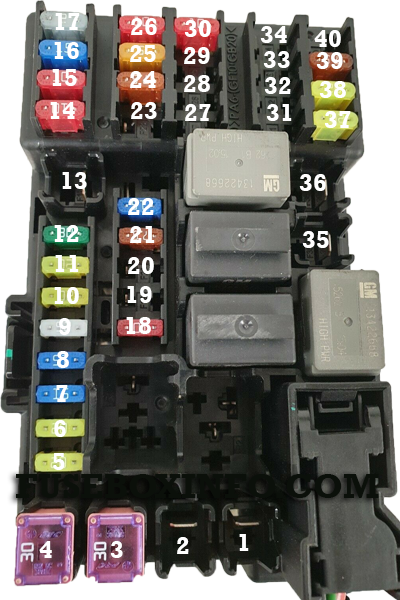

Passenger compartment fuse box:
| Fuse N° | Functions |
| 1 | - |
| 2 | - |
| 3 | Power windows |
| 4 | Voltage transformer |
| 5 | Body control module 1 |
| 6 | Body control module 2 |
| 7 | Body control module 3 |
| 8 | Body control module 4 |
| 9 | Body control module 5 |
| 10 | Body control module 6 |
| 11 | Body control module 7 |
| 12 | Body control module 8 |
| 13 | - |
| 14 | Tailgate |
| 15 | Airbag system |
| 16 | Data link connection |
| 17 | Ignition |
| 18 | Air conditioning system |
| 19 | Sunroof |
| 20 | Parking assist/Rain sensor/ Front camera |
| 21 | Brake switch |
| 22 | Audio system |
| 23 | Display |
| 24 | - |
| 25 | Auxiliary jack |
| 26 | Instrument panel |
| 27 | Seat heating, driver |
| 28 | - |
| 29 | - |
| 30 | Instrument panel/Seat heating/ FlexDock |
| 31 | Horn |
| 32 | Seat heating, passenger |
| 33 | Heated steering wheel |
| 34 | - |
| 35 | Tyre repair kit |
| 36 | - |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | Power windows/Sunroof/Auto‐ matic transmission display |
| 40 | - |

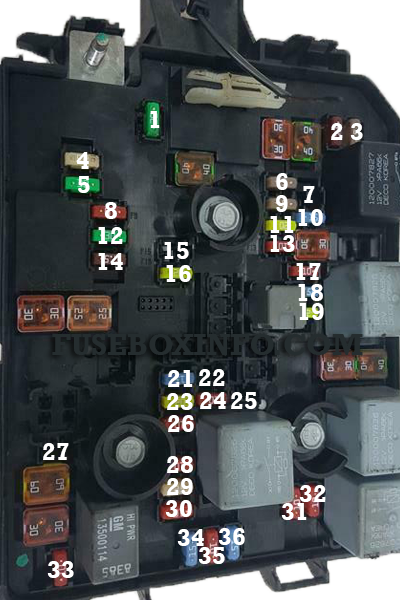

Engine compartment fuse box:
| Fuse N° | Functions |
| 1 | Trailer interface module, rear carrier system |
| 2 | - |
| 3 | Battery sensor |
| 4 | Chassis control module fuel pump |
| 5 | ABS |
| 6 | Low beam and Daytime running light left, Xenon high beam shutter left and right |
| 7 | - |
| 8 | MTA Transmission control module, LPG control module |
| 9 | Body control module voltage detection |
| 10 | Headlamp levelling |
| 11 | Rear wiper |
| 12 | Heated rear window |
| 13 | Low beam and Daytime running light right |
| 14 | Heated exterior mirror |
| 15 | - |
| 16 | Brake booster kit |
| 17 | Ignition, crank power supply |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | - |
| 21 | Engine solenoids, engine sensors |
| 22 | - |
| 23 | Injection system |
| 24 | Washer system |
| 25 | - |
| 26 | Engine sensors |
| 27 | Heater shut off valve |
| 28 | Engine control module |
| 29 | Engine control module |
| 30 | Engine control module |
| 31 | High beam left, Xenon low beam left |
| 32 | High beam right, Xenon low beam right |
| 33 | Engine control module |
| 34 | Horn |
| 35 | Air condition compressor clutch |
| 36 | Front fog lights |

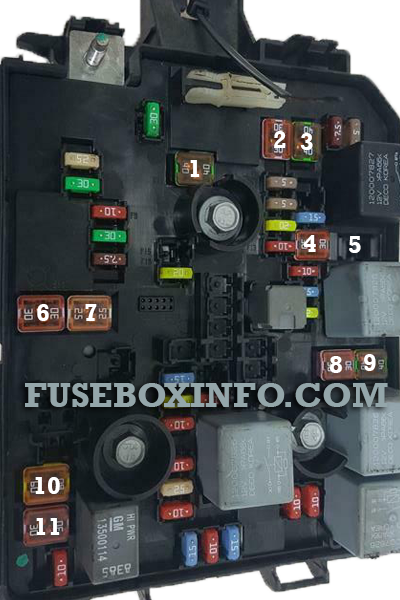

| Fuse N° | Functions |
| 1 | ABS pump |
| 2 | Front wiper |
| 3 | Blower |
| 4 | Instrument panel |
| 5 | - |
| 6 | Diesel fuel heater |
| 7 | Transmission |
| 8 | Cooling fan low |
| 9 | Cooling fan high |
| 10 | Cooling fan |
| 11 | Starter |
