Peugeot 3008 2022 Fuse Box Info

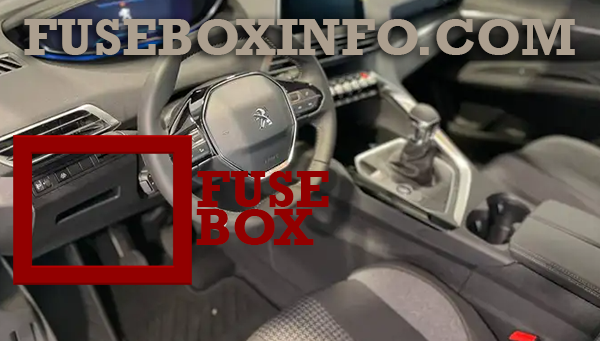

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

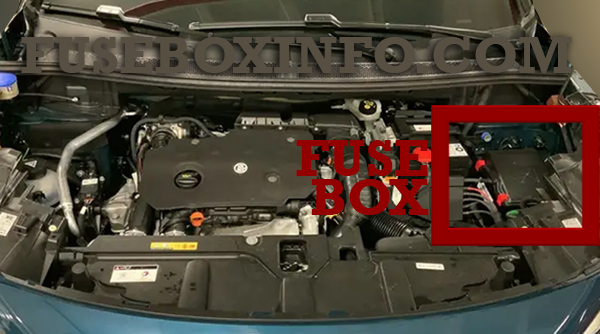

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Version 1 - Full):
| Fuse/Relay N° | Rating | Functions |
| Box 1 | ||
| 1 | 3A | Keyless Entry and Starting |
| 2 | 5A | Multifunction screen |
| 5 | 5A | Reversing camera, parking sensors |
| 7 | 10A | Hi-Fi amplifier |
| 8 | 20A | Rear wiper |
| 10 | 30A | Locks |
| 11 | 30A | Locks |
| 17 | 10A | Boot 12 V accessory socket |
| 18 | 5A | Emergency and assistance calls |
| 22 | 3A | Glove box lighting |
| 26 | 3A | Seat belts not fastened warning lamps display |
| 27 | 3A | Rain / sunshine sensor |
| 31 | 5A | Airbags |
| 33 | 15A | Front 12 V accessory socket |
| 35 | 5A | Instrument panel |
| 36 | 20A | Touch screen - Audio/navigation system |
| Box 2 | ||
| 17 | 10A | Memorising driving positions |
Passenger compartment fuse box (Version 2 - Eco):
| Fuse/Relay N° | Rating | Functions |
| 4 | 15A | Horn |
| 5 | 20A | Windscreen wash pump |
| 6 | 20A | Rear screenwash pump |
| 8 | 20A | Rear wiper |
| 10 | 30A | Locks |
| 11 | 30A | Locks |
| 14 | 5A | Alarm siren |
| 17 | 5A | Instrument panel |
| 22 | 3A | Rain / sunshine sensor |
| 24 | 5A | Reversing camera, parking sensors |
| 25 | 5A | Airbags |
| 27 | 5A | Alarm |
| 28 | 5A | Emergency and assistance calls |
| 29 | 20A | Touch screen - Audio/navigation system |
| 32 | 15A | Cigarette lighter |
| 36 | 5A | Glove box lighting |
Engine compartment fuse box (Version 1 - Full):
| Fuse/Relay N° | Rating | Functions |
| Box 1 | ||
| 14 | 15A | Screenwash pump |
| 15 | 5A | Power steering |
| 20 | 25A | Screenwash pump |
| 22 | 15A | Horn |
| 23 | 15A | Right-hand main beam headlamp |
| 24 | 15A | Left-hand main beam headlamp |
| Box 2 | ||
| 8 | 30A | Diesel emissions control system (AdBlue) |
| 12 | 15A | Automatic gearbox |
| 14 | 5A | Automatic gearbox |
Engine compartment fuse box (Version 2 - Eco):
| Fuse/Relay N° | Rating | Functions |
| 18 | 10A | Right-hand main beam headlamp |
| 19 | 10A | Left-hand main beam headlamp |
