Seat Ibiza 2006 Fuse Box Info

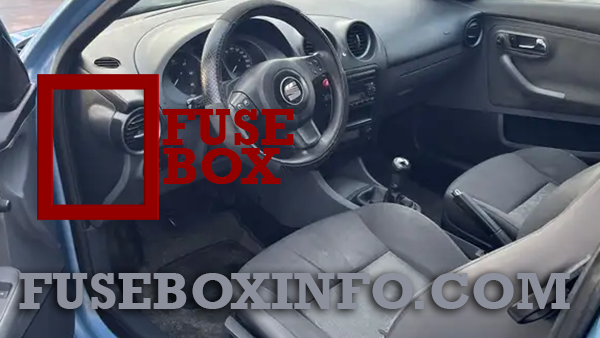

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

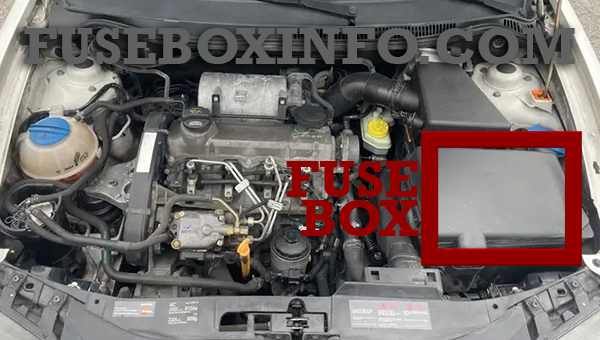

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Secondary water pump 1.8 20 VT (T16) |
| 2 | 10A | ABS/ESP |
| 3 | - | Vacant |
| 4 | 5A | Brake light, clutch switch, relay coils |
| 5 | 5A | Engine control unit (petrol) |
| 6 | 5A | Right side light |
| 7 | 5A | Left side light |
| 8 | 5A | Mirror heating unit |
| 9 | 10A | Lambda probe |
| 10 | 5A | Signal“S”. Radio unit |
| 11 | 5A | Electric mirror power supply |
| 12 | 5A | Headlamp height adjustment |
| 13 | 5A | Oil pressure/level sensor |
| 14 | 10A | Additional heating engine/fuel pump |
| 15 | 10A | Automatic gearbox unit |
| 16 | 15A | Heated seats |
| 17 | 5A | Engine control unit |
| 18 | 10A | Instrument panel /Heating and ventilation, Navigation, Headlamp height adjustment, Electric mirror |
| 19 | 10A | Reverse light |
| 20 | 10A | Windscreen washer pump |
| 21 | 10A | Main beam headlight, right |
| 22 | 10A | Main beam headlight, left |
| 23 | 5A | Number plate light/side light indicator |
| 24 | 10A | Rear windscreen wiper |
| 25 | 10A | Injectors(fuel) |
| 26 | 10A | Brake light switch /ESP (Turn sensor) |
| 27 | 5A | Instrument panel/Diagnosis |
| 28 | 10A | Unit: glovebox light, boot light, interior light |
| 29 | 5A | Climatronic |
| 30 | 5A | Power supply central locking unit |
| 31 | 25A | Left front window control |
| 32 | - | Vacant |
| 33 | 15A | Self powered alarm horn |
| 34 | 15A | Engine control unit |
| 35 | 20A | Sunroof |
| 36 | 25A | Engine ventilator heating /blower |
| 37 | 20A | Headlight washer pump |
| 38 | 15A | Front and rear fog lights |
| 39 | 15A | Engine control unit (petrol) |
| 40 | 30A | Engine control unit diesel + SDI Fuel pump |
| 41 | 15A | Fuel gauge |
| 42 | 15A | Ignition transformer+ Engine control unit T70 |
| 43 | 15A | Dipped headlight (right side) |
| 44 | 25A | Left rear window control |
| 45 | 25A | Front right window control |
| 46 | 20A | Windscreen wiper unit |
| 47 | 20A | Heated rear window unit |
| 48 | 15A | Indicator unit |
| 49 | 15A | Cigarette lighter |
| 50 | 15A | Locking unit |
| 51 | 20A | Radio/CD/GPS/Telephone |
| 52 | 20A | Horn |
| 53 | 15A | Dipped headlight (left side) |
| 54 | 25A | Right rear window control |
Fuses below steering wheel in relay holder:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | PTCs (Supplementary electrical heating using aiir) |
| 2 | 40A | PTCs (Supplementary electrical heating using air) |
| 3 | 40A | PTCs (Supplementary electrical heating using air) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 175A | Alternator/Starter motor |
| 2 | 110A | Power supply voltage distributor inside vehicle |
| 3 | 50A | Power assisted steering pump |
| 4 | 50A | Spark plug preheating (diesel) |
| 5 | 40A | Electric heater fan/air conditioning fan |
| 6 | 40A | ABS unit |
| 7 | 25A | ABS unit |
| 8 | 30A | Electric heater fan/air conditioning fan |
| 9 | 10A | ABS unit |
| 10 | 5A | Cable control unit |
| 11 | 5A | Clima fan |
| 12 | - | Vacant |
| 13 | 5A | Jatco unit for automatic gearbox |
| 14 | - | Vacant |
| 15 | - | Vacant |
| 16 | - | Vacant |
