Škoda Enyaq iV 2020 Fuse Box Info
Passenger compartment fuse box location:

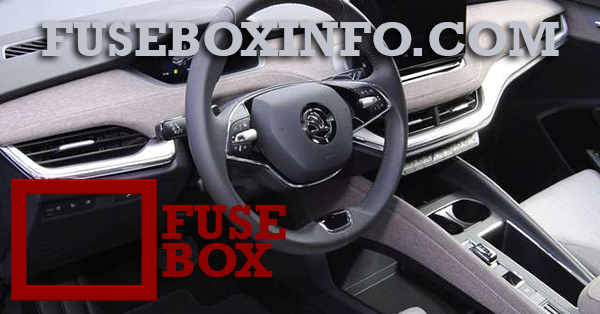

The fuse box is located under the instrument panel behind the coin tray on the driver’s side.

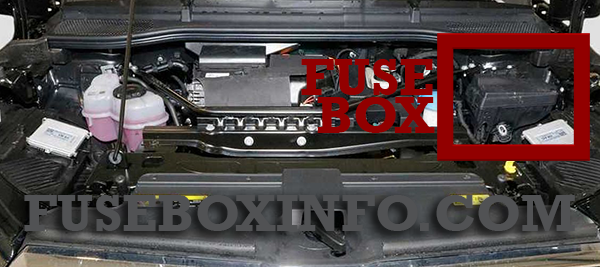

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Functions |
| 1 | 230 volt socket |
| 2 | Airbags |
| 3 | Tow hitch |
| 4 | Front camera for assistance systems |
| 5 | Vehicle exterior lighting |
| 6 | Interior lighting |
| 7 | Heating of the front seats |
| 8 | Sliding/tilting roof |
| 9 | Window lifter (left vehicle side), central locking (left front door), left exterior mirror (heater, folding function, mirror surface adjustment) |
| 10 | Not used |
| 11 | Tow hitch |
| 12 | Not used |
| 13 | Central locking (rear doors and boot lid flap), windscreen washer system, headlight cleaning system |
| 14 | Music amplifier |
| 15 | Not used |
| 16 | Not used |
| 17 | Rear radar sensors |
| 18 | Steering column lock, KESSY (keyless locking system), contactless operation of the electric luggage compartment lid |
| 19 | Instrument cluster, emergency call, online services |
| 20 | Phonebox, USB-connections at the front |
| 21 | Rear view camera, Top View |
| 22 | Engine control system |
| 23 | Communication system |
| 24 | Not used |
| 25 | Driver belt tensioners |
| 26 | Window lifter – right vehicle side, central locking (right front door), right exterior mirror (heater, folding function, mirror surface adjustment) |
| 27 | Passenger belt tensioners |
| 28 |
High-voltage battery control system - safe shutdown of the high-voltage system The fuse can only be changed by a specialist company! |
| 29 | Tow hitch |
| 30 | Infotainment |
| 31 | Tow hitch |
| 32 | Vehicle exterior lighting |
| 33 | Not used |
| 34 | Air conditioning |
| 35 | Seat heating - rear |
| 36 | Fan for heating/air conditioning |
| 37 | Electric boot lid |
| 38 | Seat ventilation |
| 39 | Heated steering wheel |
| 40 | Alarm horn |
| 41 | Databus |
| 42 | Transmission operation, transmission mode display |
| 43 | Front air conditioning, rear air conditioning, rear window heating |
| 44 | Front interior lighting, parking brake, rain light sensor, operation of the light function, alarm system, diagnostic connection, button bar in the control panel |
| 45 | Control lever under the steering wheel |
| 46 | Infotainment screen, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 48 | Rear USB |
| 49 | Not used |
| 50 | Not used |
| 51 | Not used |
| 52 | 12 volt socket in the luggage compartment |
| 53 | Not used |
| 54 | Not used |
| 55 | Not used |
| 56 | Not used |
| 57 | Not used |
| 58 | Parking aid (Park Assist) |
| 59 | Air conditioning + heating, interior mirror with automatic dimming, USB at the rear |
| 60 | Diagnostic connection |
| 61 | Drive system |
| 62 | Not used |
| 63 | Not used |
| 64 | Not used |
| 65 | Not used |
| 66 | Rear window wiper |
| 67 | Heated rear window |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Not used |
| 2 | Assistance system ESC, BDM control system, coil of the main relay |
| 3 | Charger for the high-voltage battery, electric drive |
| 4 | Left headlight |
| 5 | Right headlight |
| 6 | Radar sensor in the front |
| 7 | Not used |
| 8 | Not used |
| 9 | Horn |
| 10 | Windscreen wiper |
| 11 | Air conditioning |
| 12 | Engine sound generator |
| 13 | Assistance system ESC |
| 14 | Not used |
| 15 | Assistance system ESC |
| 16 | Radiator fan |
| 17 | Heated windscreen |
| 18 | Not used |
| 19 | Not used |
| 20 | Not used |
| 21 | Not used |
| 22 | Not used |
| 23 | Engine control system |
| 24 | Radiator fan |
| 25 | Coolant pump, electric heating |
| 26 | Coolant pump, radiator shutter |
| 27 | Not used |
| 28 | Not used |
| 29 | Not used |
| 30 | Not used |
| 31 | Not used |
| 32 | Brake servo |
