Volvo V60 Twin Engine 2019 Fuse Box

Volvo Hits: 3588

Volvo V60 Twin Engine 2019 Fuse Box Info



Passenger compartment fuse box location:

The fuse box in the passenger compartment is located behind the floor mat/side panel, under the glove box.

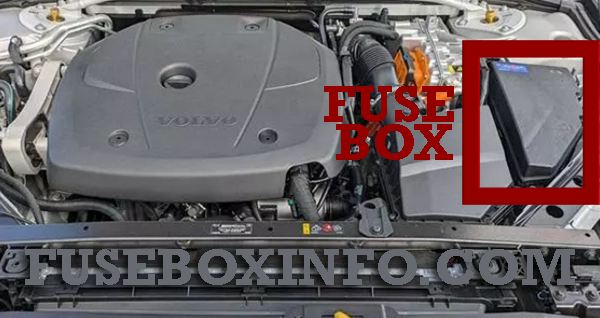

Engine compartment fuse box location:

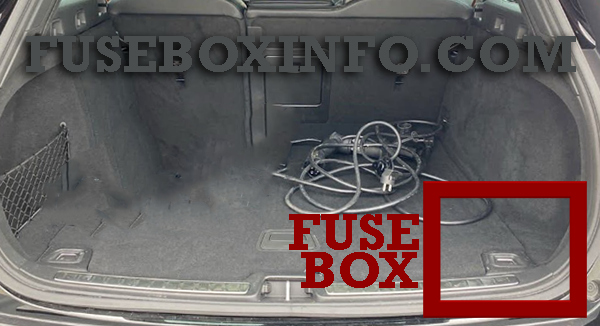

Luggage compartment fuse box location:

The fuse box is located on the right-hand side.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 - -
3 - -
4 5A Movement detector*
5 5A Media player
6 5A Driver display
7 5A Keypad in centre console
8 5A Sun sensor
9 - -
10 - -
11 5A Steering wheel module
12 5A Module for start knob and for parking brake control
13 15A Steering wheel module for heated steering wheel*
14 - -
15 - -
16 - -
17 - -
18 10A Control module for climate control system
19 7.5A Steering lock
20 10A Diagnostic socket OBDII
21 5A Centre display
22 40A Fan module for climate control system, front
23 5A USB hub
24 7.5A

Controls lighting; Interior lighting; Dimming of interior rearview mirror*; Rain and light sensor*; Keypad in tunnel console, by legroom for second seat row; Power front seats*, Control panels in rear doors; Fan module for climate control left/right
25 5A Control module for driver support functions
26 20A Panorama roof with sun blind*
27 5A Head-up display*
28 5A Passenger compartment lighting
29 - -
30 5A Display in roof console (Seatbelt reminder/Indicator for airbag on the front passenger seat)
31 - -
32 - -
33 - -
34 10A Fuses in cargo area
35 5A Control module for online car; Control module for telematics
36 - -
37 40A Audio control module (amplifier)
38 - -
39 5A Module for multi-band antenna
40 5A Modules for seat comfort (massage) front*
41 5A Alcohol lock*
42 15A Rear window wiper
43 15A Control module for fuel pump
44 5A Relay coils in central electrical unit in engine compartment; relay coil for transmission fluid pump
45 - -
46 15A Seat heating, driver's side front
47 15A Seat heating, passenger side front
48 10A Coolant pump
49 - -
50 20A Power driver's seat*
51 20A Control module for suspension (active chassis)*
52 - -
53 10A Sensus control module
54 - -
55 - -
56 20A Electrically operated front passenger seat
57 - -
58 5A TV* (certain markets)
59 15A Primary fuse for fuses 52, 53, 57 and 58

* Option/accessory



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 - -
3 - -
4 5A Control module for actuator for engagement/change of automatic gearbox gear positions
5 5A Control module for the high-voltage heater of the internal combustion engine's coolant
6 5A Control module for air conditioning; Shut-off valve for heat exchanger; Shut-off valve for coolant that passes through the climate control system
7 5A Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500 V-12 V
8 - -
9 10A Converter for control of the supply to the rear axle's electric motor
10 10A Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500 V-12 V
11 5A Charging unit
12 10A Shut-off valve for the hybrid battery's coolant; Coolant pump 1 for hybrid battery
13 10A Coolant pump for electric drive system
14 25A Cooling fan for hybrid components
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 - -
24 15A 12 V socket in tunnel console, front
25 15A 12 V socket in tunnel console, by legroom for second seat row
26 15A 12 V socket in cargo area*, USB ports for iPad holder*
27 - -
28 - -
29 - -
30 - -
31 Shunt Heated windscreen* left-hand side
32 40A Heated windscreen* left-hand side
33 25A Headlamp washers*
34 25A Windscreen washers
35 - -
36 20A Horn
37 5A Siren*
38 40A Control module for brake system (valves, parking brake)
39 30A Windscreen wipers
40 25A Rear window washer
41 40A Heated windscreen* right-hand side
42 20A Parking heater*
43 40A Control unit for brake system (ABS pump)
44 - -
45 Shunt Heated windscreen*, right side
46 5A Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module
47 5A Exterior car noise (certain markets)
48

7.5A

15A

Right-hand headlamp

Right-hand headlamp, certain variants of LED*
49 5A Alcohol lock*
50 - -
51 - -
52 5A Airbags
53

7.5A

15A

Left-hand headlamp

Left-hand headlamp, certain variants of LED*
54 5A Accelerator pedal sensor
55 15A Transmission control module; Control module for gear selector
56 5A Engine Control Module (ECM)
57 - -
58 - -
59 - -
60 - -
61 20A Engine control module; Actuator; Throttle unit; Valve for turbocharger
62 10A Solenoids; Valve; Thermostat for engine cooling system
63 7.5A Vacuum regulators; Valve
64 5A Control module, spoiler roller cover; Control module, radiator roller cover
65 - -
66 15A Lambda-sond, front; Lambda-sond, rear
67 15A Solenoid for engine oil pump; Solenoid clutch A/C; Lambda sond, centre
68 - -
69 20A Engine Control Module (ECM)
70 15A Ignition coils; Spark plugs
71 - -
72 - -
73 30A Control module for transmission fluid pump
74 40A Control module for vacuum pump
75 25A Actuator for transmission
76 - -
77 - -
78 - -

* Option/accessory



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Rear window defroster
2 40A Central electronic module
3 40A Compressor for air suspension*
4 15A Lock motor for backrest on rear right-hand side
5 - -
6 15A Lock motor for backrest on rear left-hand side
7 20A Electrically operated front passenger seat*, Door module right-hand side rear
8 30A Control module for reduction of nitrous oxides (diesel)
9 25A Power operated tailgate*
10 20A Electrically operated front passenger seat*, Door module right-hand side front
11 40A Towbar control module*
12 40A Seatbelt pretensioner module, right-hand side
13 5A Internal relay coils
14 20A Door module left-hand side rear
15 5A Module for detecting foot movement* (for opening the power operated tailgate)
16 5A Alcohol lock*, USB hub/accessory port
17 - -
18

25A

40A

Towbar control module*

Accessory module
19 20A Door module left-hand side front
20 40A Seatbelt pretensioner module, left-hand side
21 5A Parking camera*
22 - -
23 - -
24 - -
25 10A Supply when the ignition is switched on
26 5A Control module for airbags and seatbelt tensioners
27 - -
28 15A Seat heating left-hand side rear*
29 - -
30 5A Blind Spot Information (BLIS)*: control module, exterior reversing sound
31 - -
32 5A Seatbelt pretensioner modules
33 5A Actuator for exhaust gases (petrol, certain engine variants)
34 - -
35 - -
36 15A Seat heating right-hand side rear*
37 - -

* Option/accessory
