Volvo V60 Plug-in Hybrid 2014 Fuse Box

Volvo Hits: 2557

Volvo V60 Plug-in Hybrid 2014 Fuse Box Info

Passenger compartment fuse box location:

The fuse boxes in the passenger compartment are located under the glove box.

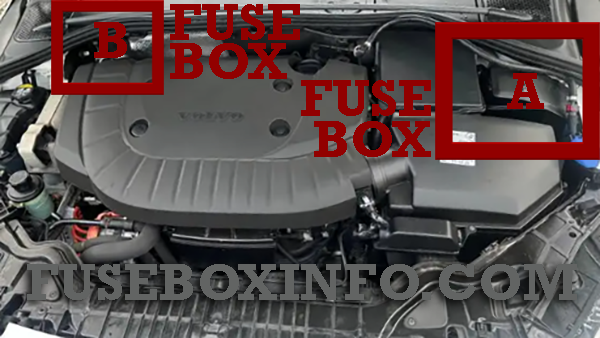

Engine compartment fuse box location:

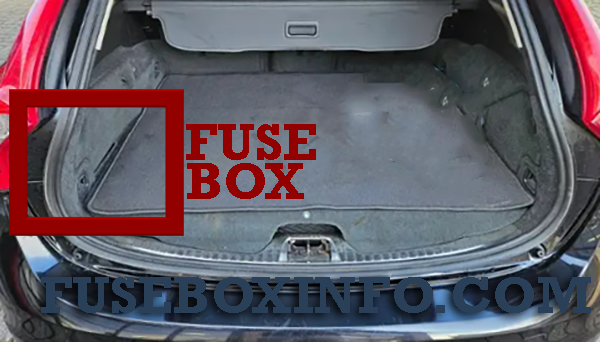

Luggage compartment fuse box location:

The fuse boxes are located behind the upholstery on the left-hand side.

Fuse Box Diagram | Layout

Passenger compartment fuse box A:

Fuse/Relay N°	Rating	Functions
1	40A	Primary fuse for audio control module*; Primary fuse for fuses 16-20: Infotainment
2	25A	Windscreen washers; Rear window washer
3	-	-
4	-	-
5	-	-
6	5A	Door handle (Keyless*)
7	-	-
8	20A	Control panel, driver's door
9	20A	Control panel, front passenger door
10	20A	Control panel, rear passenger door, right
11	20A	Control panel, rear passenger door, left
12	7.5A	Keyless*
13	20A	Power seat driver's side*
14	20A	Power seat passenger side*
15	-	-
16	5A	Infotainment control module; Screen*
17	10A	Audio control unit (amplifier); Digital radio; TV*
18	15A	Audio or Control Module Sensus*
19	5A	Telematics; Bluetooth
20	-	-
21	5A	Sunroof; Interior lighting roof; Climate sensor; Damper motors, air intake
22	15A	12 V socket, tunnel console
23	15A	Seat heating, rear right*
24	15A	Seat heating, rear left*
25	5A	Electrically-driven heater
26	15A	Seat heating (passenger side)
27	15A	Seat heating (driver's side)
28	5A	Parking assistance; Parking camera; Towbar control module, BLIS*
29	-	-
30	-	-

* Option/accessory

Passenger compartment fuse box B:

Fuse/Relay N°	Rating	Functions
1	15A	Rear window wiper
2	-	-
3	7.5A	Interior lighting; Driver's door control panel, power windows; Remote controlled garage door opener; Power seats, front
4	5A	Combined instrument panel
5	10A	Adaptive cruise control, ACC; collision warning system
6	7.5A	Interior lighting; Rain sensor
7	7.5A	Steering wheel module
8	10A	Central locking system, fuel filler flap
9	15A	Heated steering wheel*
10	15A	Heated windscreen*
11	10A	Unlocking, tailgate
12	10A	Folding head restraint*
13	20A	Fuel pump
14	5A	Movement detector alarm*; Climate panel
15	15A	Steering lock
16	5A	Siren*; Data link connector OBDII
17	-	-
18	10A	Airbags
19	5A	Collision warning system*
20	7.5A	Accelerator pedal sensor; Dimming interior rearview mirror; Seat heating, rear
21	15A	Infotainment control module (Performance); Audio (Performance)
22	5A	Brake light
23	20A	Sunroof*
24	5A	Immobiliser

* Option/accessory

Engine compartment fuse box A:

Fuse/Relay N°	Rating	Functions
1	-	-
2	50A	Primary fuse for the central electronic module (CEM) under the glovebox
3	-	-
4	60A	Primary fuse for relay/fuse box under the glovebox
5	-	-
6	-	-
7	-	-
8	-	-
9	30A	Windscreen wipers
10	25A	Parking heater*
11	-	-
12	-	-
13	40A	ABS pump
14	20A	ABS valves
15	20A	Headlamp washers*
16	10A	Headlamp levelling; Active Xenon headlamps - ABL
17	20A	Primary fuse for the central electronic module (CEM) under the glovebox
18	5A	ABS
19	5A	Adjustable steering force*
20	10A	Engine control module; Transmission control module; Airbags
21	10A	Heated washer nozzles*
22	-	-
23	5A	Headlamp control
24	-	-
25	-	-
26	-	-
27	5A	Relay coils
28	20A	Auxiliary lamps*
29	15A	Horn
30	10A	Relay coil in main relay for engine management system; Engine control module
31	15A	Transmission control module
32	-	-
33	5A	Relay coils in central electrical unit in engine compartment cold zone
34	30A	Start relay
35	10A	Glow control module
36	15A	Engine Control Module (ECM)
37	15A	Mass air flow sensor; Control valves
38	10A	Valves; Oil level sensor
39	10A	Lambda-sond; Control module, radiator roller cover
40	20A	Diesel filter heater
41	5A	Crankcase ventilation heater
42	70A	Glow plugs
43	80A	Cooling fan
44	100A	Power steering

* Option/accessory

Engine compartment fuse box B:

Fuse/Relay N°	Rating	Functions
1	5A	Monitoring of vacuum pump for brake system

Luggage compartment fuse box A:

Fuse/Relay N°	Rating	Functions
1	30A	Electric parking brake, left
2	30A	Electric parking brake, right
3	30A	Rear window defroster
4	15A	Trailer socket 2*
5	-	-
6	15A	12 V socket, cargo area
7	-	-
8	-	-
9	-	-
10	-	-
11	40A	Trailer socket 1*
12	-	-

* Option/accessory

Luggage compartment fuse box B:

Fuse/Relay N°	Rating	Functions
1	10A	Coolant pump 1 for hybrid battery; Valve for coolant pumps 1 and 2
2	10A	Coolant pump 2 for hybrid battery
3	5A	Charging unit; Voltage converter 400 V-12 V; Control module for hybrid battery
4	15A	Coolant pump for the cooling system's low temperature circuit
5	10A	Charging unit; Voltage converter 400 V-12 V; Control module for hybrid battery
6	10A	Relay coils; high voltage converter for electric motor and integrated starter generator
7	15A	Disengaging the electric motor from the rear axle
8	-	-
9	10A	High voltage converter for electric motor and integrated starter generator; control module for hybrid battery
10	10A	Coolant valves for the cooling system's low temperature circuit; Electric A/C compressor; Valve for heat exchanger; Valve for climate control system
11	-	-
12	-	-

* Option/accessory
