Volvo S60 2006 Fuse Box Diagram
Fuse box location:
1. Fuses in the passenger compartment at dashboard end on driver’s side.
2. Fuses in the passenger compartment within the sound barrier on the driver’s side.

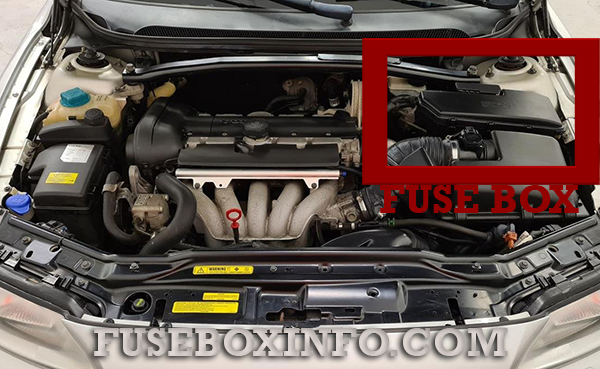

Engine compartment fusebox:
This fuse box contains 24 fuse positions.

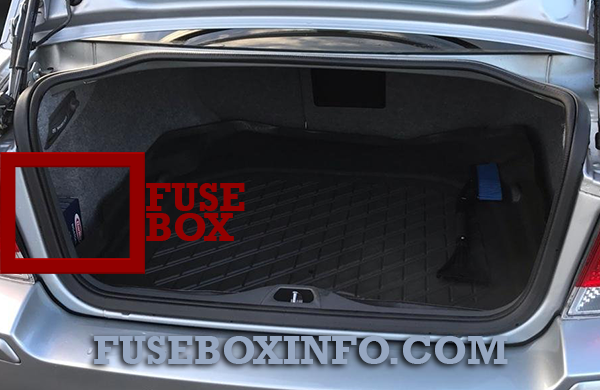

Cargo compartment fusebox:
This fuse box contains 18 fuse positions.
Fuse Box Diagram | Layout

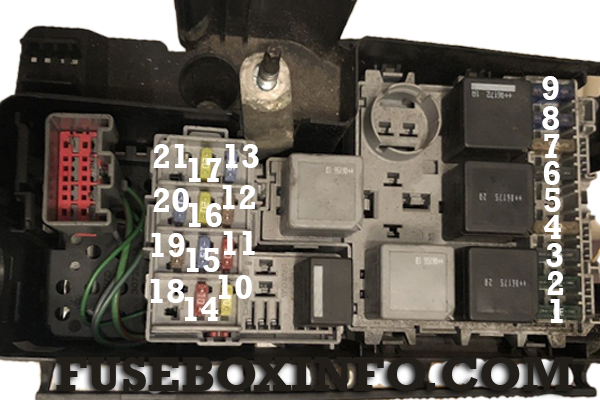

Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 30 A | ABS |
| 2 | 30 A | ABS |
| 3 | 35 A | High-pressure washer, headlamps |
| 4 | 25 A | Parking heater (option) |
| 5 | 20 A | Auxiliary lamps (option) |
| 6 | 35 A |
Starter motor relay |
| 7 | 25 A | Windscreen wipers |
| 8 | 15 A | Transmission control module (TCM), diesel, R-models |
| 9 | 15 A | Fuel pump |
| 10 | 20 A | Ignition coils (petrol), engine control module (ECM), injection valves (diesel) |
| 11 | 10 A | Ignition coils (petrol), engine control module (ECM), injection valves (diesel) |
| 12 |
15 A 5 A |
Engine control module (ECM) (petrol) injection valves (petrol), mass air flow sensor (petrol) mass air flow sensor (diesel) |
| 13 |
10 A 15 A |
Electronic throttle module (ETM), (petrol) Electronic throttle module (ETM), air mixing valve, fuel pressure regulator, solenoid valve, (diesel) |
| 14 |
20 A 10 A |
Lambda-sond (petrol) Lambda-sond (diesel) |
| 15 |
10 A 15 A |
Crankcase ventilation heater, solenoid valves (petrol) solenoid valves, glow plugs (diesel) |
| 16 | 20 A | Dipped beam, left |
| 17 | 20 A | Dipped beam, right |
| 18 | - | - |
| 19 | 5 A | Engine control module (ECM) supply, engine relay |
| 20 | 15 A | Position lamps |
| 21 | - | - |
Passenger compartment fusebox

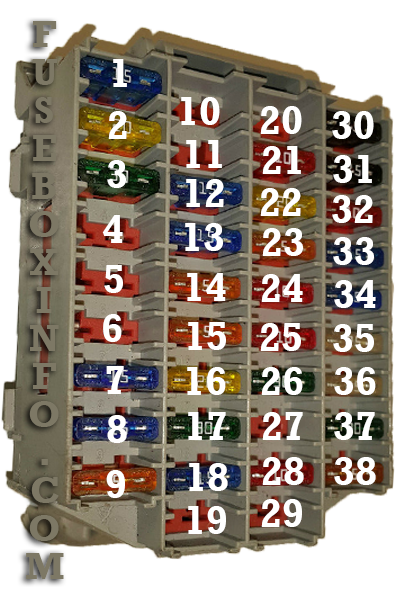

Fuses in the passenger compartment at dashboard end on driver’s side:
| Fuse N° | Rating | Functions |
| 1 | 25 A | Power driver’s seat |
| 2 | 25 A | Power passenger seat |
| 3 | 30 A | Climate control system fan |
| 4 | 25 A | Control module, right front door |
| 5 | 25 A | Control module, left front door |
| 6 | 10 A | General lighting, ceiling (RCM), Upper Electronic Module (UEM) |
| 7 | 15 A | Sunroof |
| 8 | 7.5 A | Ignition switch, SRS system, engine control module (ECM) SRS deactivation passenger side (PACOS), electronic immobiliser (IMMO), transmission control module (TCM), diesel, R-models |
| 9 | 5 A | OBDII, light switch (LSM), Steering Angle Sensor (SAS), Steering Wheel Module (SWM) |
| 10 | 20 A | Audio |
| 11 | 30 A | Amplifier |
| 12 | 10 A | RTI display |
| 13 | 5 A | Telephone |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
Fuses in the passenger compartment within the sound barrier on the driver’s side:
| Fuse N° | Rating | Functions |
| 1 | 15 A | Seat heating, right side |
| 2 | 15 A | Seat heating, left side |
| 3 | 15 A | Horn |
| 4 | - | - |
| 5 | - | - |
| 6 | - | Reserve |
| 7 | - | Reserve |
| 8 | 5 A | Siren |
| 9 | 5 A | Brake lamp switch feed |
| 10 | 10 A | Combined instrument panel (DIM), climate control (CCM), parking heater, power driver’s seat |
| 11 | 15 A | Front and rear seat socket |
| 12 | - | - |
| 13 | - | Reserve |
| 14 | 15 A | Headlamp wipers (S60 R) |
| 15 | 5 A | ABS, STC/DSTC |
| 16 | 10 A | Bi-fuel, Electronically Controlled Power Steering (ECPS), Bi-Xenon, headlamp levelling |
| 17 | 7.5 A | Fog lamp, front left |
| 18 | 7.5 A | Fog lamp, front right |
| 19 | - | Reserve |
| 20 | - | Reserve |
| 21 | 10 A | Transmission Control Module (TCM), reverse gear inhibitor (M66 |
| 22 | 10 A | Main beam, left |
| 23 | 10 A | Main beam, right |
| 24 | - | - |
| 25 | - | - |
| 26 | - | Reserve |
| 27 | - | Reserve |
| 28 | 5 A | Power passenger seat, audio |
| 29 | - | Reserve |
| 30 | 5 A | BLIS |
| 31 | - | Reserve |
| 32 | - | Reserve |
| 33 | 20 A | Vacuum pump |
| 34 | 15 A | Washer pump, headlamp wipers (S60 R) |
| 35 | - | - |
| 36 | - | - |

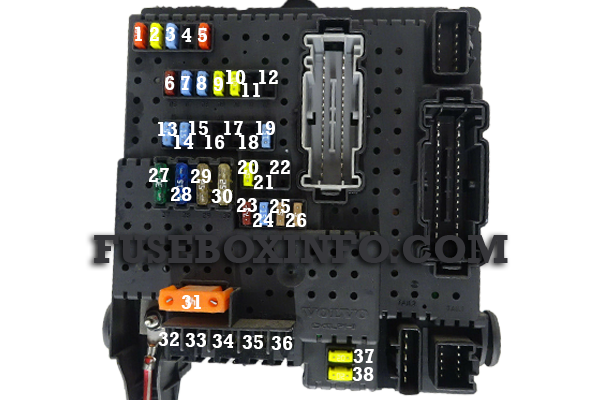

Cargo compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 10 A | Reversing lamp |
| 2 | 15 A | Position lamps, fog lamps, cargo area lighting, number plate lighting, LEDs in brake lighting |
| 3 | 20 A | Accessories (AEM |
| 4 | - | Reserve |
| 5 | 10 A | REM electronics |
| 6 | 7.5 A | CD changer, TV, RTI |
| 7 | 15 A | Towing bracket wiring (30-feed) |
| 8 | 15 A | Cargo area socket |
| 9 | 20 A | Rear right door: power window, power window lock |
| 10 | 20 A | Rear left door: power window, power window lock |
| 11 | - | Reserve |
| 12 | - | Reserve |
| 13 | 15 A | Diesel filter heater |
| 14 | - | - |
| 15 | - | Reserve |
| 16 | - | Reserve |
| 17 | 5 A | Audio accessories |
| 18 | - | Reserve |
| 19 | 15 A | Foldable head restraint |
| 20 | 20 A | Towing bracket wiring (15-feed) |
| 21 | - | Reserve |
| 22 | - | - |
| 23 | 7.5 A | AWD |
| 24 | 15 A | Four-C SUM |
| 25 | - | - |
| 26 | 5 A | Parking assistance |
| 27 | 30 A | Main fuse: towing bracket wiring, Four-C, parking assistance AWD |
| 28 | 15 A | Central locking system (PCL) |
| 29 | 25 A | Trailer lighting, left: parking lamp, direction indicator |
| 30 | 25 A | Trailer lighting, right: brake lamp, rear fog lamp, direction indicator |
| 31 | 40 A | Main fuse: Fuse 37, 38 |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | 20 A | Heated rear window |
| 38 | 20 A | Heated rear window |
