Toyota Tundra 2000 Fuse Box Info

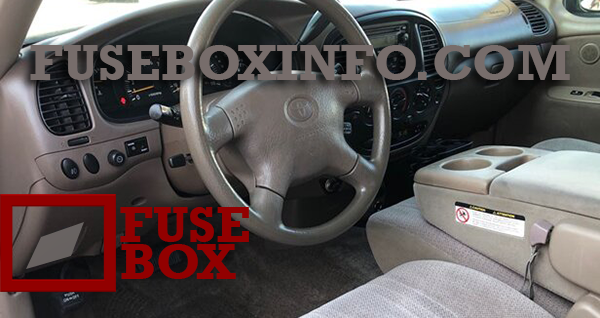

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side.

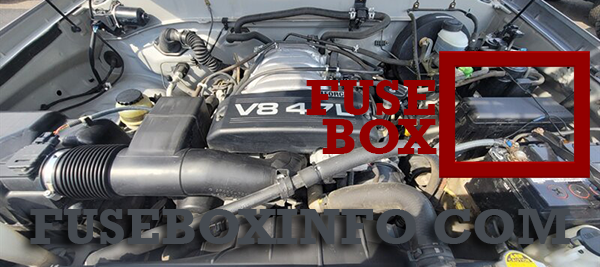

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 18. WIP | 20A | Windshield wipers and washer |
| 19. TURN | 5A | Turn signal lights |
| 20. ECU−IG | 5A | Anti−lock brake system and cruise control system |
| 21. 4WD | 20A | Four−wheel drive control system and A.D.D. control system |
| 22. ACC | 15A | Cigarette lighter, audio system, SRS airbag system and power rear view mirrors |
| 23. GAUGE | 10A | Gauges and meters, back−up lights, starting system, daytime running light system and air conditioning system |
| 24. IGN | 5A | SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, discharge system and ignition system |
| 25. CARGO LP | 5A | Cargo lamp |
| 26. TAIL | 15A | Tail lights, license plate lights, instrument panel lights, parking lights and glove box light |
| 27. ECU−B | 5A | SRS warning light |
| 28. HORN·HAZ | 20A | Emergency flashers and horns |
| 29. ST | 5A | Starting system |
| 30. STOP | 15A | Stoplights and high mounted stoplight |
| 37. PWR | 30A | Power door lock system, power windows and power seat |
Engine compartment fuse box (2UZ−FE engine):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. EFI NO.1 | 15A | Multiport fuel injection system/sequential multiport fuel injection system, emission control system, fuel pump and all components in "EFI NO.2" fuse |
| 2. ETCS | 15A | Multiport fuel injection system/sequential multiport fuel injection system and electronic throttle control system |
| 3. DOME | 15A | Interior light, personal lights, vanity light and courtesy lights |
| 4. OBD | 7.5A | On−board diagnosis system |
| 5. PWR OUTLET 1 | 15A | Power outlet (upper) |
| 6. PWR OUTLET 2 | 15A | Power outlet (lower) |
| 7. FR FOG | 20A | Front fog lights |
| 8. ALT−S | 15A | Charging system |
| 9. HEAD (RH) | 10A | Right−hand headlight |
| 10. HEAD (LH) | 10A | Left−hand headlight |
| 11. EFI NO.2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system and emission control system |
| 12. A/C | 10A | Air conditioning system |
| 13. DRL | 7.5A | Daytime running light system |
| 14. HEAD (LO RH) | 10A | Right−hand headlight (low beam) |
| 15. HEAD (LO LH) | 10A | Left−hand headlight (low beam) |
| 31. ABS 1 | 40A | Anti−lock brake system |
| 32. ABS 2 | 40A | Anti−lock brake system |
| 33. J/B | 50A | All components in "PWR", "HORN·HAZ", "TAIL", "CARGO LP", "STOP" and "ECU−B" fuses |
| 34. AM2 | 30A | Ignition system |
| 35. AM1 | 40A | Starting system |
| 36. HTR | 50A | Air conditioning system |
| 39. ALT | 120A | All components in "AM1", "ALT−S", "HTR", "FR FOG", "PWR OUTLET 1" and "PWR OUTLET 2" fuses |
| Engine compartment with towing kit | ||
| 38. FL | 30A | Trailer lights |
Engine compartment fuse box (5VZ−FE engine):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. EFI NO.1 | 15A | Multiport fuel injection system/sequential multiport fuel injection system, emission control system, fuel pump and all components in "EFI NO.2" fuse |
| 3. DOME | 15A | Interior light, personal lights, vanity light and courtesy lights |
| 4. OBD | 7.5A | On−board diagnosis system |
| 5. PWR OUTLET 1 | 15A | Power outlet (upper) |
| 6. PWR OUTLET 2 | 15A | Power outlet (lower) |
| 7. FR FOG | 20A | Front fog lights |
| 8. ALT−S | 15A | Charging system |
| 12. A/C | 10A | Air conditioning system |
| 13. DRL | 7.5A | Daytime running light system |
| 14. HEAD (LO RH) | 10A | Right−hand headlight (low beam) |
| 15. HEAD (LO LH) | 10A | Left−hand headlight (low beam) |
| 16. HEAD (HI RH) | 10A | Right−hand headlight (high beam) |
| 17. HEAD (HI LH) | 10A | Left−hand headlight (high beam) |
| 31. ABS 1 | 40A | Anti−lock brake system |
| 32. ABS 2 | 40A | Anti−lock brake system |
| 33. J/B | 50A | All components in "PWR", "HORN·HAZ", "TAIL", "CARGO LP", "STOP" and "ECU−B" fuses |
| 34. AM2 | 30A | Ignition system |
| 35. AM1 | 40A | Starting system |
| 36. HTR | 50A | Air conditioning system |
| 39. ALT | 120A | All components in "AM1", "ALT−S", "HTR", "FR FOG", "PWR OUTLET 1" and "PWR OUTLET 2" fuses |
| Engine compartment with towing kit | ||
| 38. FL | 30A | Trailer lights |
