Toyota RAV4 2011 Fuse Box Info
Fuse box location:
The fuse box is under the instrument panel.
Engine compartment fuse box:
The fuse box type A (passenger’s side), and type B (driver’s side).
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. TAIL | 10A | Parking lights, tail lights, license plate light, front fog lights, rear side marker lights |
| 2. PANEL | 7.5A | Clock, instrument panel lights, audio system |
| 3. GAUGE 1 | 10A | Back-up lights, charging system |
| 4. D FR DOOR | 20A | Power windows (front doors) |
| 5. RL DOOR | 20A | Power windows |
| 6. RR DOOR | 20A | Power windows |
| 7. S/ROOF | 25A | Electric moon roof |
| 8. CIG | 15A | Power outlet |
| 9. ACC | 7.5A | Audio system, power outlets, power rear view mirror control, automatic transmission shift lock system, main body ECU, clock, smart key system |
| 10. MIR HTR | 10A | Outside rear view mirror defoggers |
| 11. PWR OUTLET | 15A | Power outlet |
| 12. RR FOG | 10A | No circuit |
| 13. IGN | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, steering lock system, front passenger occupant classification system, smart key system, SRS airbag system |
| 14. GAUGE 2 | 7.5A | Gauges and meters |
| 15. S-HTR | 15A | Seat heaters |
| 16. FR WIP | 25A | Windshield wipers |
| 17. RR WIP | 15A | Rear window wiper |
| 18. WSH | 15A | Windshield washer, rear window washer |
| 19. ECU IG 1 | 10A | Electric cooling fan, ABS, TRAC, VSC, AUTO LSD function, downhill assist control system, hill-start assist control system, Active Torque Control 4WD system, automatic transmission shift lock system, air conditioning system, main body ECU, electric moon roof, stop/tail lights, electric power steering system, clock, AC inverter, auto anti-glare inside rear view mirror |
| 20. ECU IG 2 | 10A | Air conditioning system, rear window defogger, emergency flashers |
| 21. OBD | 7.5A | On-board diagnosis system |
| 22. STOP | 10A | Stop/tail lights, high mounted stoplight, automatic transmission shift lock system, multiport fuel injection system/sequential multiport fuel injection system, ABS, TRAC, VSC, AUTO LSD system, downhill assist control system, hill-start assist control system |
| 23. DOOR | 25A | Main body ECU, power door lock system |
| 24. ACC-B | 25A | ACC, CIG, fuses |
| 25. 4WD | 7.5A | Active torque control 4WD system |
| 26. FR FOG | 15A | Front fog lights |
| 27. AM1* | 7.5A | Starting system |
| 28. DEF | 30A | Rear window defogger, MIR HTR fuse |
| 29. P/SEAT | 30A | Power seat |
| 30. POWER | 30A | Power windows |
*: Vehicles without smart key system

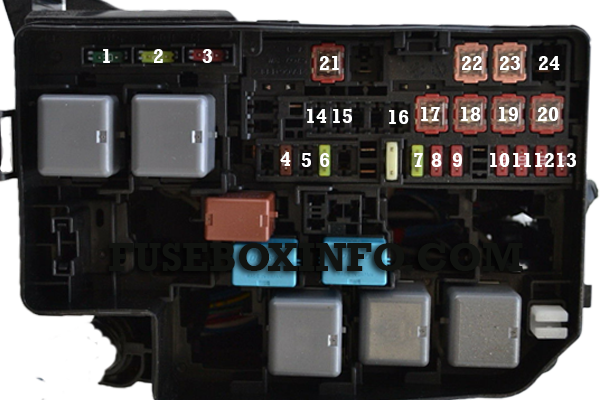

Engine compartment fuse box type A (passenger’s side):
| Fuse | Rating | Functions |
| 1. SPARE | 30A | Spare fuse |
| 2. SPARE | 20A | Spare fuse |
| 3. SPARE | 10A | Spare fuse |
| 4. ECU−B2 | 7.5A | Air conditioning system, power windows, smart key system |
| 5. ALT-S | 7.5A | Charging system |
| 6. STR LOCK | 20A | Smart key system |
| 7. RAD NO.1 | 20A | Audio system |
| 8. ECU−B | 10A | Gauges and meters, clock, main body ECU, wireless remote control, smart key system, audio system, front passenger occupant classification system, ABS, TRAC, VSC, AUTO LSD, downhill assist control system, hill-start assist control system, Active Torque Control 4WD system |
| 9. DOME | 10A | Vanity lights, personal/interior lights, interior light, luggage compartment light, engine switch light, foot lights |
| 10. H-LP LH | 10A | Left−hand headlight (high beam) |
| 11. H-LP RH | 10A | Right−hand headlight (high beam) |
| 12. H-LP LL | 10A | Left−hand headlight (low beam |
| 13. H-LP RL | 10A | Right−hand headlight (low beam) |
| 14. AC INV | 15A | AC inverter |
| 15. TOWING*1 | 30A | No circuit |
| 16. DEICER | 20A | Windshield wiper deicer |
| 17. HTR | 50A | Air conditioning system |
| 18. PTC NO.3 | 50A | No circuit |
| 19. PTC NO.2 | 50A | No circuit |
| 20. PTC NO.1 | 50A | No circuit |
| 21. HEAD MAIN | 50A | H-LP LH, H-LP RH, H-LP LL, H-LP RL fuses |
|
22. RDI*2 22. FAN 2*1 |
30A 50A |
Electric cooling fan |
|
23. CDS*2 23. FAN 1*3 |
30A 50A |
Electric cooling fan |
| 24. H-LP CLN | 30A | No circuit |
* 1: Vehicles with towing package
* 2: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
* 3: Vehicles with 3.5 L V6 (2GR-FE) engine

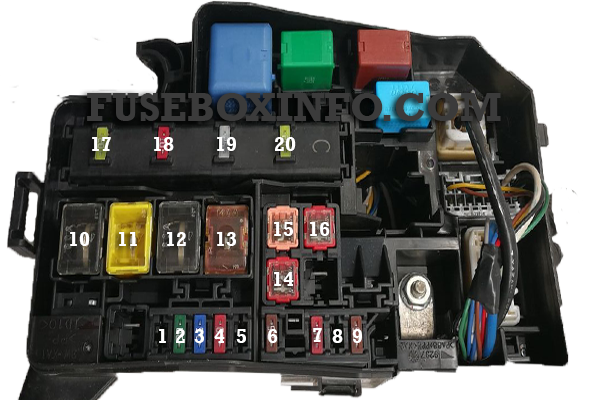

Engine compartment fuse box type B (driver’s side):
| Fuse | Rating | Functions |
| 1. AMP | 30A | Audio system |
| 2. AM2 | 30A | Starting system |
| 3. IG2 | 15A | Starting system, multiport fuel injection system/sequential multiport fuel injection system |
| 4. HAZ | 10A | Emergency flashers |
| 5. ETCS | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 6. AM2−2 | 7.5A | Starting system |
| 7. EFI NO.1 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 8. EFI NO.2 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 9. EFI NO.3 | 7.5A | No circuit |
| 10. GROW | 80A | No circuit |
| 11. EPMS | 60A | Electric power steering system |
| 12. MAIN | 80A | HEAD MAIN, ECU-B2, ALT-S, STR LOCK, DOME, ECU-B, RAD NO.1 fuses |
| 13. ALT |
120 A*1 140 A*2 |
ABS 1, ABS 2, RDI*3, CDS*3, FAN 1*4, AC INV, TOWING, HTR, DEICER fuses ABS 1, ABS 2, FAN 1, FAN 2, AC INV, TOWING, HTR, DEICER fuses |
| 14. P/I | 50A | EFI MAIN, HORN, A/F, fuses |
| 15. ABS2 | 30A | ABS, TRAC, VSC, AUTO LSD function, downhill assist control system, hill-start assist control system |
| 16. ABS1 | 50A | ABS, TRAC, VSC, AUTO LSD function, downhill assist control system, hill-start assist control system |
| 17. EFI MAIN | 20A | Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.1, EFI NO.2, fuses |
| 18. HORN | 10A | Horn |
| 19. EDU | 25A | No circuit |
| 20. A/F | 20A | A/F sensor, fuel pump*3 |
* 1: Vehicles without towing package
* 2: Vehicles with towing package
* 3: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
* 4: Vehicles with 3.5 L V6 (2GR-FE) engine
