Toyota Prius 2005 Fuse Box

Toyota Hits: 3212

Toyota Prius 2005 Fuse Box Info

Passenger compartment fuse box location:

The instrument panel fuse box is located under the instrument panel on the driver’s side, under the cover.

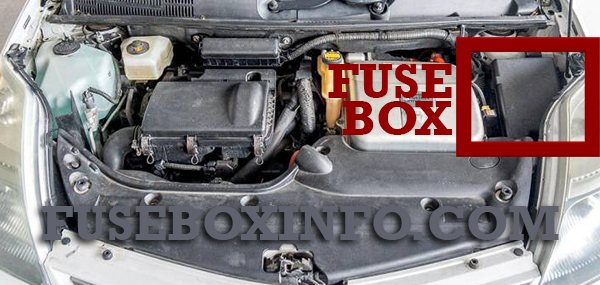

Engine compartment fuse box location:

Luggage compartment fuse box location:

Fuse Box Diagram | Layout

Passenger compartment fuse box:

Fuse/Relay N° and Name	Rating	Functions
1. PWR	30A	Power windows
2. DEF	40A	Rear window defogger
3. M/HTR	15A	Outside rear view mirror heater
4. WIP	30A	Windshield wiper
5. RR WIP	15A	Rear wiper
6. WSH	20A	Washer
7. ECU−IG	7.5A	Smart entry and start system, power windows, multi−information display, electric power steering, theft deterrent system
8. GAUGE	10A	Gauge and meter, back−up lights, emergency flasher, power windows
9. OBD	7.5A	On−board diagnosis system
10. STOP	7.5A	Stop lights
11. DOOR	25A	Power door lock system
12. ACC−B	25A	“POWER OUTLET”, “ACC” fuses
13. ECU−B	15A	Multi−information display, power windows, air conditioning system
14. AM1	7.5A	Hybrid system
15. TAIL	10A	Tail lights, license plates light, parking lights
16. PANEL	7.5A	Multi−information display, clock, audio system, instrument panel lights
17. A/C (HTR)	10A	Air conditioning system
18. FR DOOR	20A	Power windows
19. PWR OUTLET	15A	Power outlet
20. ACC	7.5A	Audio system, multi−information display, clock
21. PWR OUTLET FR	15A	Power outlet
22. IGN	7.5A	Hybrid system, hybrid vehicle immobilizer system, SRS airbags

Engine compartment fuse box:

Fuse/Relay N° and Name	Rating	Functions
23. SPARE	30A	Spare
24. SPARE	15A	Spare
25. DRL	7.5A	Daytime running light system
26. H−LP LO RH	15A (Vehicles with discharged headlight) or 10A (Vehicles with halogen headlight)	Right −hand headlight (low beam)
27. H−LP LO LH	15A (Vehicles with discharged headlight) or 10A (Vehicles with halogen headlight)	Left −hand headlight (low beam)
28. H−LP HI RH	10A	Right −hand headlight (high beam)
29. H−LP HI LH	10A	Left −hand headlight (high beam)
30. EFI	15A	Multiport fuel injection system/sequential multiport fuel injection system
31. AM2	15A	“IGN” fuse, ignition system
32. HORN	10A	Horn
33. HEV	20A	Hybrid system
34. P CON MAIN	7.5A	Parking control system, hybrid vehicle immobilizer system
35. ABS−1	25A	Anti−lock brake system
36. ETCS	10A	Electronic throttle control system
37. BATT FAN	10A	Battery cooling fan
38. HAZ	10A	Turn signal lights, emergency flasher
39. DOME	15A	Audio system, interior lights, smart entry and start system, gauge and meter, turn signal lights, luggage room light, clock
40. ABS MAIN3	15A	Anti −lock brake system
41. ABS MAIN2	10A	Anti −lock brake system
42. ABS MAIN1	10A	Anti −lock brake system
43. FR FOG	15A	Fog lights
44. CHS W/P	10A	CHS W/P
45. AMP	30A	Audio system
46. PTC HTR2	30A	PTC heater
47. PTC HTR1	30A	PTC heater
48. CDS FAN	30A	Electric cooling fan

Luggage compartment fuse box:
