Holden Colorado 2014 Fuse Box Info

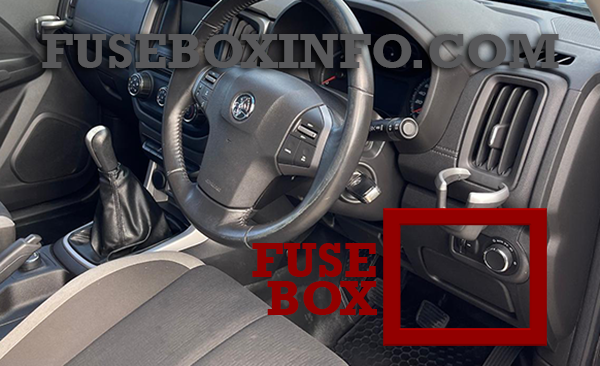

Passenger compartment fuse box location:
The fuse box is behind the instrument panel cap.

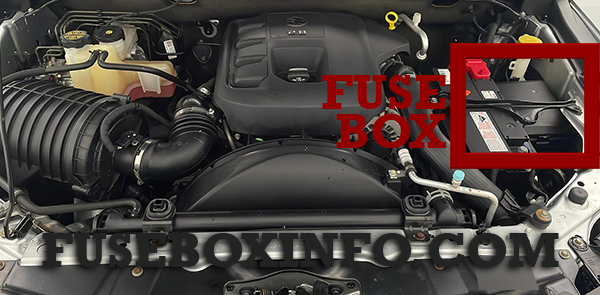

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | HVAC AUTO |
| 2 | 15A | BODY CONTROL MODULE (6) |
| 3 | 15A | BODY CONTROL MODULE (5) |
| 4 | 20A | CIGAR LIGHT AND POWER OUTLET |
| 5 | 2A | CLOCK SPRING |
| 6 | 30A | POWER WINDOW |
| 7 | 20A | POWER OUTLET |
| 8 | 15A | BODY CONTROL MODULE (2) |
| 9 | 15A | BODY CONTROL MODULE (4) |
| 10 | 30A | BODY CONTROL MODULE (8) |
| 11 | 40A | RAP & ACCESSORY 12V |
| 12 | - | - |
| 13 | - | - |
| 14 | 7.5A | DATA LINK CONNECTOR (DLC) |
| 15 | 10A | SENSING AND DIAGNOSTIC MODULE (SDM) |
| 16 | 10A | INSTRUMENT PANEL CLUSTER (IPC) |
| 17 | 20A | RADIO |
| 18 | 30A | HVAC BLOWER |
| 19 | 5A | OUTSIDE REARVIEW MIRRORS |
| 20 | - | - |
| 21 | 10A | HVAC CONTROL HEAD |
| 22 | 2A | IGNITION SWITCH |
| 23 | 15A | BODY CONTROL MODULE (5) |
| 24 | 15A | BODY CONTROL MODULE (3) |
| 25 | 20A | POWER WINDOW SWITCH |
| 26 | 30A | POWER SEAT |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | COMPRESSOR A/C CLUTCH |
| 2 | 15A | BCM BATT 6 |
| 3 | 15A | SPARE |
| 4 | 10A | REAR LATCH |
| 5 | 15A | HORN |
| 6 | 15A | FRONT FOG LAMP |
| 7 | 10A | HIGH BEAM LH |
| 8 | 10A | HIGH BEAM RH |
| 9 | 10A | SPARE |
| 10 | 15A | ENGINE_3 |
| 11 | 20A | ENGINE CONTROL MODULE1 |
| 12 | 10A | ENGINE_1 |
| 13 | 10A | ENGINE_2 |
| 14 | 15A | ENGINE_4 |
| 15 | 15A | PWT |
| 16 | 15A | TCM |
| 17 | 10A | TRANSFER CASE MODULE AND LAMP LEVELLING |
| 18 | 10A | CLUSTER - A/C - SDM |
| 19 | 20A | FUEL PUMP |
| 20 | 5A | SPARE |
| 21 | 30A | REAR WINDOW HEATER |
| 22 | 15A | OUTSIDE REARVIEW MIRROR |
| 23 | 15A | VISCOUS HEATER |
| 24 | 20A | REAR WIPER |
| 25 | 10A | FRT WASHER |
| 26 | 10A | REAR PARK ASSIST |
| 27 | 5A | BODY CONTROL MODULE RVC |
| 28 | 7.5A | DRL/COLD START |
| 29 | 30A | ABS MODULE ESC1 |
| 30 | 10A | CONTENT THEFT RELAY |
| 31 | 15A | BODY CONTROL MODULE BATT7 |
| 32 | 15A | ENGINE CONTROL MODULE |
| 33 | 10A | COMMON ENABLE |
| SB01 | 50A | ABS MODULE PUMP |
| SB02 | 30A | TRANSFER CASE CONTROL MODULE (4X4) |
| SB03 | 60A | GLOW PLUG MODULE (DIESEL) |
| SB04 | 20A | SPARE |
| SB05 | 30A | STARTER MOTOR SOLENOID |
| SB06 | 30A | FRONT WIPER |
| SB07 | 30A | FUEL HEATER |
| SB08 | - | - |
| SB09 | 30A | SPARE |
