Holden Caprice 2015 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

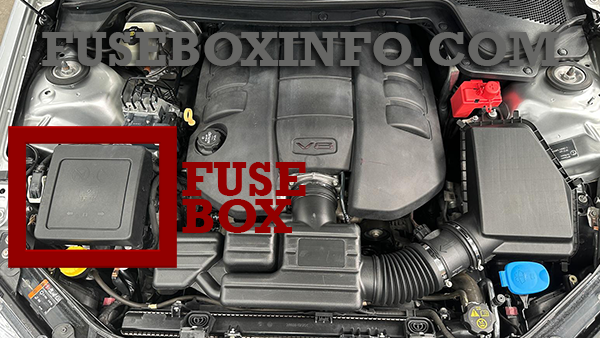

Engine compartment fuse box location:

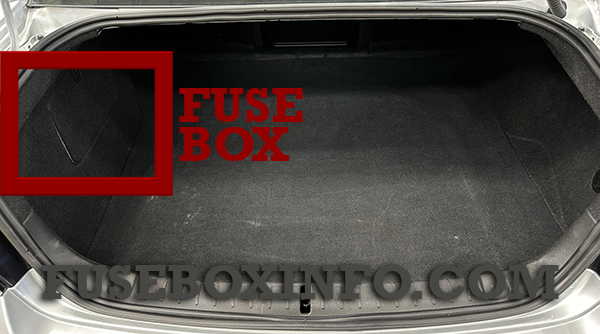

Luggage compartment fuse box location:
The rear fuse box is located on the left hand side of the boot, above the battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | BODY CONTROL MODULE 1 |
| 2 | 10A | DIAGNOSTIC LINK CONNECTOR |
| 3 | 30A | LPG SHUT-OFF SOLENOID |
| 4 | 15A | BODY CONTROL MODULE 2 |
| 5 | 2A | IGNITION SWITCH |
| 6 | 15A | ELECTRIC STEERING CONTROL LOCK |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 30A | SHUNT 1 |
| 12 | 10A | AIRBAG / AOS |
| 13 | 15A | INSTRUMENT CLUSTER |
| 14 | 15A | HVAC CONTROL MODULE |
| 15 | 10A | RAIN SENSOR |
| 16 | 15A | BODY CONTROL MODULE 3 |
| 17 | 15A | LPG SHUT-OFF SOLENOID |
| 18 | - | - |
| 19 | 2A | SWC BACKLIGHT |
| 20 | - | - |
| 21 | - | - |
| 22 | 30A | SHUNT 2 |
| 23 | 15A | BODY CONTROL MODULE 4 |
| 24 | 15A | BODY CONTROL MODULE 5 |
| 25 | 10A | BODY CONTROL MODULE 6 |
| 26 | - | - |
| 27 | 30A | BODY CONTROL MODULE 8 |
| 28 | 40A | BLOWER FAN |
| 29 | 15A | ACCESSORIES |
| 30 | 15A | BODY CONTROL MODULE 7 |
| Relays | ||
| 1 | - | LOGISTICS MODE |
| 2 | - | LPG SHUT-OFF SOLENOID 1 |
| 3 | - | LPG SHUT-OFF SOLENOID 2 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 10A | HEATED MIRRORS |
| 2 | - | - |
| 3 | 30A | REAR DEMISTER |
| 4 | - | - |
| 5 | 15A | SPOT LAMP RH |
| 6 | 30A | DRIVER POWER SEAT |
| 7 | 20A | WASHER PUMP |
| 8 | 30A | PASSENGER POWER SEAT |
| 9 | 15A | EMER / VEH / FT/ LP |
| 10 | - | - |
| 11 | 20A | DRIVING LAMPS |
| 12 | 25A | HEADLAMP WASHER |
| 13 | 15A | SPOT LAMP LH |
| 14 | 60A | ABS PUMP |
| 15 | 30A | ABS VALVES |
| 16 | - | - |
| 17 | - | - |
| 18 | 15A | HEATED FRONT SEATS |
| 19 | - | - |
| 20 | - | - |
| 21 | 7.5A | FRONT PASSENGER WINDOW SWITCH |
| 22 | 20A | REAR WIPER |
| 23 | 20A | SUNROOF |
| 24 | 30A | FRONT WIPERS |
| 25 | 5A | AOS IGN / IPC IGN |
| 26 | 20A | LRBEC IGN |
| 27 | - | - |
| 28 | 20A | IGN / INJ EVEN - V8 |
| 29 | 15A | ECM-V8, IGN ODD-V6 / EMIS 1 |
| 30 | - | - |
| 31 | - | - |
| 32 | 15A | FOG LAMPS |
| 33 | 10A | IGNITION-IP / BODY |
| 34 | 10A | FUEL SYSTEM CONTROL MODULE |
| 35 | - | - |
| 36 | 15A | ESCL |
| 37 | 15A | EMIS 2 / IGN EVEN-V6 |
| 38 | 20A | ECM-V6, INJ ODD-V8 |
| 39 | 10A | INCLR PUMP |
| 40 | - | - |
| 41 | 15A | TRANSMISSION CONTROL MODULE / ELECTRIC POWER STEERING |
| 42 | 30A | STARTER MOTOR |
| 43 | - | - |
| 44 | 15A | LH HID HEADLAMP |
| 45 | 15A | RH HID HEADLAMP |
| 46 | 10A | LH & RH HI BEAM HEADLAMP |
| 47 | 15A | HORN |
| 48 | 60A | ENGINE COOLING FAN |
| 49 | 10A | AUTOMATIC HEADLAMP LEVELLING |
| 50 | 15A | TRANSMISSION CONTROL MODULE IGN |
| 51 | 15A | ENGINE CONTROL MODULE IGN |
| 52 | 30A | BRAKE VACUUM PUMP |
| 53 | 10A | AIR CONDITIONING COMPRESSOR CLUTCH |
| 54 | 10A | VAPORISER CONTROL MODULE |
| Relays | ||
| 1 | - | DRIVING LAMPS |
| 2 | - | HEADLAMP WASHER |
| 3 | - | REAR WASHER PUMP |
| 4 | - | FRONT WASHER PUMP |
| 5 | - | REAR DEMISTER |
| 6 | - | FRONT WIPER CONTROL |
| 7 | - | WIPER SPEED |
| 8 | - | ENGINE CONTROL MODULE |
| 9 | - | - |
| 10 | - | INCLR PUMP |
| 11 | - | - |
| 12 | - | REAR WIPER CONTROL |
| 13 | - | FOG LAMPS |
| 14 | - | LOW BEAM HEADLAMPS |
| 15 | - | HIGH BEAM HEADLAMPS |
| 16 | - | STARTER |
| 17 | - | RUN / CRANK |
| 18 | - | BRAKE VACUUM PUMP |
| 19 | - | AIR-CONDITIONING CONTROL |
| 20 | - | HORN |
Engine compartment fuse box (LPG Fuse box) - Next to the main fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 40A | VAPORISER HEATER 1 |
| 2 | 40A | VAPORISER HEATER 2 |
| 3 | - | SPARE |
| 4 | 40A | VAPORISER HEATER 3 |
| Relays | ||
| 1 | - | VAPORISER HEATER 1 RELAY |
| 2 | - | VAPORISER HEATER 2 RELAY |
| 3 | - | SPARE |
| 4 | - | VAPORISER HEATER 3 RELAY |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 30A | DRIVER FRONT / LH REAR WINDOW |
| 2 | 10A | EMER / VEH / ACCY |
| 3 | 15A | TRUNK RELEASE |
| 4 | 30A | PASSIVE ENTRY PASSIVE START-BATT 2 |
| 5 | 15A | RADIO |
| 6 | - | - |
| 7 | - | - |
| 8 | 20A | FUEL SYSTEM CONTROL MODULE |
| 9 | 30A | MRTD |
| 10 | 20A | DECKLID FLASHING LAMPS / EDI MODULE |
| 11 | 10A | AUXILIARY BATTERY |
| 12 | - | - |
| 13 | - | - |
| 14 | 10A | REAR SEAT ENTERTAINMENT |
| 15 | 15A | AUTOMATIC HEADLAMP LEVELLING |
| 16 | - | - |
| 17 | 20A | EXHAUST VALVE |
| 18 | 10A | ONSTAR |
| 19 | 5A | MIRROR / WINDOW MODULE |
| 20 | 10A | CANISTER VENT SOLENOID |
| 21 | 5A | PASSIVE ENTRY PASSIVE START-BATT 1 |
| 22 | 10A | MEMORY SEAT MODULE |
| 23 | 30A | AMPLIFIER |
| 24 | 30A | PASSENGER FRONT / RH REAR WINDOW |
| 25 | 30A | ELECTRIC PARK BRAKE |
| 26 | 10A | TAILGATE MODULE |
| 27 | 10A | CAMERA IGN |
| 28 | 15A | FRT VENT SEAT IGN |
| 29 | 10A | TRAILER MODULE IGN |
| 30 | 15A | ADVANCED PARK ASSIST / SIDE BLIND ZONE ALERT |
| 31 | 10A | ENGINE CONTROL MODULE |
| 32 | 10A | AUXILIARY GAUGES |
| 33 | 10A | RETAINED ACCESSORY POWER |
| 34 | 5A | BATTERY VOLTAGE SENSING |
| 35 | 30A | TAILGATE MOTOR |
| 36 | 20A | REAR ACCESSORY POWER OUTLET |
| 37 | 20A | INTERIOR ACCESSORY POWER OUTLET |
| 38 | 20A | FRT / LTR |
| 39 | - | - |
| 40 | 40A | TRAILER MODULE |
| Relays | ||
| 1 | - | BOOT RELEASE |
| 2 | - | ACCESSORY |
| 3 | - | - |
| 4 | - | RUN |
| 5 | - | - |
| 6 | - | RETAINED ACCESSORY POWER |
| 7 | - | LOGISTICS MODE |
| 8 | - | - |
| 9 | - | - |
| 10 | - | EXHAUST VALVE |
| 11 | - | - |
