Holden Epica 2007 Fuse Box Info

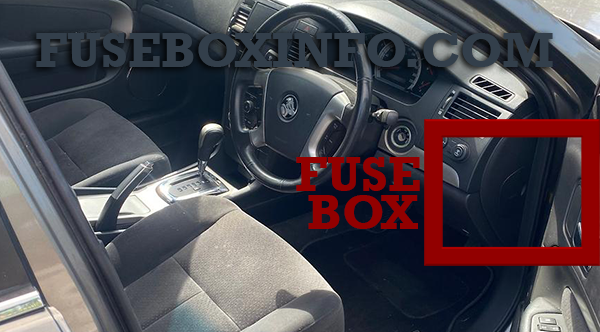

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

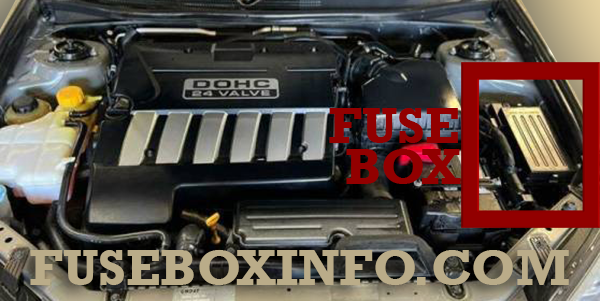

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | B/UP LP |
| 2 | 15A | U/H J/B |
| 3 | 10A | ISU |
| 4 | 10A | OSRVM |
| 5 | 15A | A/D CONVERTER |
| 6 | 15A | SSPS |
| 7 | 15A | ALDL |
| 8 | 30A | ESP |
| 9 | 10A | SDM |
| 10 | 10A | AIR BAG |
| 11 | - | SPARE |
| 12 | 10A | LCM |
| 13 | 20A | CIGAR |
| 14 | 20A | SUB WOOFER |
| 15 | 10A | CLUSTER 2 |
| 16 | 25A | WIPER |
| 17 | 15A | ECU |
| 18 | 10A | HVAC |
| 19 | 10A | CLOCK |
| 20 | 10A | RADIO |
| 21 | 20A | HEATING MAT |
| 22 | 20A | AUDIO |
| 23 | 10A | CLUSTER 1 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | 30A | PWR SEAT |
| 3 | 30A | LCM |
| 4 | 20A | DRIVER’S PWR WIDW |
| 5 | 20A | PASSENGER’S PWR WIDW |
| 6 | 30A | HVAC BLWR |
| 7 | 120A | ALTERNATOR |
| 8 | 20A | IGN COIL |
| 9 | 20A | FUEL |
| 10 | 25A | IP FUSE |
| 11 | 10A | PWR MIRROR |
| 12 | 10A | A/C CMPRSR |
| 13 | 15A | FRT FOG |
| 14 | 20A | S/ROOF |
| 15 | 20A | COOL FAN HI |
| 16 | 60A | BCM BATT |
| 17 | 15A | HORN |
| 18 | 20A | STOP LAMPS |
| 19 | 15A | ABS |
| 20 | 10A | ABS WARNING |
| 21 | 20A | SPARE |
| 22 | 10A | SPARE |
| 23 | 15A | SPARE |
| 24 | 10A | LOW BEAM RT |
| 25 | 10A | LOW BEAM LT |
| 26 | 15A | ENG1 |
| 27 | 20A | ENG3 |
| 28 | 15A | ENG2 |
| 29 | 10A | ILLUM LT |
| 30 | 10A | ILLUM RT |
| 31 | 15A | HI BEAM |
| 32 | 25A | SPARE |
| 33 | 20A | COOL FAN LOW |
| 34 | 60A | ABS |
| 35 | 20A | PWR AMP |
| 36 | 30A | SPARE |
| 37 | 30A | ST/IG2 |
| 38 | 30A | IGN 1 |
| Relays | ||
| 1 | - | COOL FAN CNTRL RELAY |
| 2 | - | COOL FAN HI RELAY |
| 3 | - | FUEL PUMP RELAY |
| 4 | - | PWR WNDW RELAY |
| 5 | - | HORN RELAY |
| 6 | - | A/C CMPRSR RELAY |
| 7 | - | FRT FOG RELAY |
| 8 | - | HEAD LAMP LO RELAY |
| 9 | - | COOL FAN LOW RELAY |
| 10 | - | ENG MAIN RELAY |
| 11 | - | STARTER RELAY |
| 12 | - | ILLUM LAMPS RELAY |
| 13 | - | HEAD LAMP HI RELAY |
