Mercury Sable 2004 Fuse Box Info

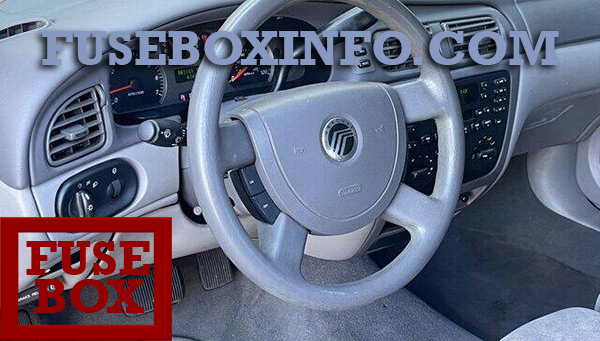

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

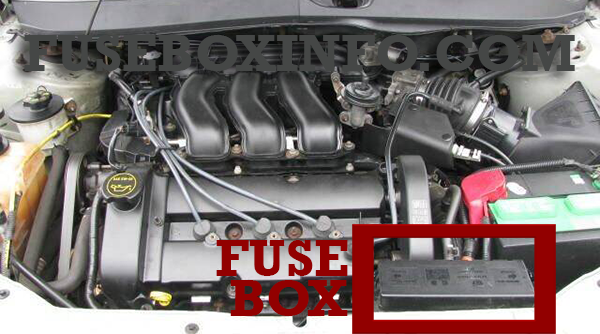

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Accessory Delay Relay |
| 2 | - | Driver One Touch Down Relay |
| 3 | - | Blower Motor Relay |
| 4 | - | Flasher Relay |
| 5 | - | Not Used |
| 6 | - | Not Used |
| 7 | 40A | Rear defrost grid feed (wagon only)/Rear defrost relay coil feed (sedan only) |
| 8 | 40A | Blower Motor |
| 9 | - | Rear Defrost Relay |
| 10 | 30A | Power seats, Delayed accessory, Adjustable pedals |
| 11 | 10A | Right headlamp |
| 12 | 15A | Highbeam headlamps |
| 13 | - | Not used |
| 14 | - | Not Used |
| 15 | 10A | Left headlamp |
| 16 | 10A | Foglamps |
| 17 | 15A | Stop Lamp, Speed Control Deactivating Switch |
| 18 | 15A | Parklamps, PWM (backlighting), Autolamps |
| 19 | 10A | Heated mirrors, Rear defrost switch indicator |
| 20 | 10A | Restraints (air bag module/OCS module) |
| 21 | 15A | Transmission range sensor (transmission position switch) |
| 22 | 15A | Front washer pump, Electrochromatic mirror, Compass, Cluster (RUN/ACC), Integrated Control Panel (ICP) logic, Rear wiper (wagon only), Rear washer (wagon only) |
| 23 | 30A | Front wiper motor |
| 24 | - | Not used |
| 25 | 20A | Power point |
| 26 | 20A | Power locks, Liftgate (wagon)/Trunk (sedan) release |
| 27 | 10A | Anti-lock Brake System (ABS), Speed control, Traction control, Brake-shift interlock, A/C function switch (manual A/C only), Temperature blend door (manual A/C only), Defrost coil |
| 28 | 15A | Turn signals, Back-up lamps |
| 29 | 20A | Cigar lighter |
| 30 | 10A | Courtesy lighting, Battery saver, Power mirrors, Decklid lamp, Power antenna (wagon only), Pulse stretching module (wagon only) |
| 31 | 10A | Blower motor relay coil, Puddle lamp relay coil, Electronic Automatic Temperature Control (EATC) logic |
| 32 | 10A | Cluster, Flex fuel module, ICP logic, Passive anti-theft module (GEM power) |
| 33 | 15A | Hazard flasher, Cluster power, ICP power, EATC |
| 34 | 5A | GEM logic |
| 35 | 10A | Backlighting |
| 36 | 2A | Powertrain Control Module (PCM) relay, Fuel pump relay, A/C clutch |
| 37 | 25A | Autolamp, Daytime Running Lamps (DRL), Flash-to-pass, Headlamp switch |
| 38 | 15A | Horn, Diagnostic connector (OBD II) |
| 39 | - | Not Used |
| 40 | - | Not Used |
| 41 | - | Not Used |
| 42 | - | Not Used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | Fuse Junction Panel |
| 2 | 30A | Powertrain Control Module (PCM) relay |
| 3 | 60A | Fuse Junction Panel |
| 4 | 10A | Low speed cooling fan (Not used in GCC) |
| 5 | 40A | Cooling fan |
| 6 | - | Not used |
| 7 | 40A | Starter Relay, Ignition Switch |
| 8 | - | Not used |
| 9 |
20A 50A in GCC |
Cooling fan (passenger side)
|
| 10 | 20A | Cooling fan (driver side) (not used in GCC) |
| 11 | 50A | Rear defrost (sedan only) |
| 12 | - | Not Used |
| 13 | 40A | Anti-lock Brake System (ABS) module pump feed |
| 14 | - | Not used |
| 15 | 20A | ABS module valve solenoid |
| 16 | 20A | Fuel Pump Relay |
| 17 | 20A | CD |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | - | Not Used |
| 21 | - | Not used |
| 22 | 10A | A/C Clutch Relay, PCM Keep Alive Power |
| 23 | - | Starter Motor Relay |
| 24 | - | Fan relay |
| 25 | - | Wiper Speed Relay |
| 26 | 10A | Alternator |
| 27 | 5A | Rear Control Unit, Antenna |
| 28 | 15A | HEGO sensor, Transmission shift solenoid, Canister vent, A/C clutch relay |
| 29 | - | Wiper Park Relay |
| 30 | - | Fuel Pump Relay |
| 31 | - | PCM Power Relay |
| 32 | - | Fan Relay |
| 33 | - | A/C Clutch Relay |
