Oldsmobile Achieva 1995 Fuse Box Info

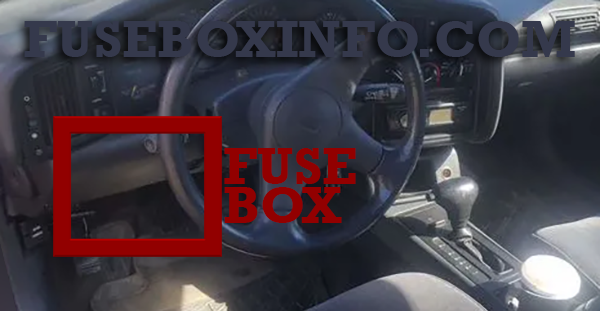

Passenger compartment fuse box location:
The instrument panel fuse box is located to the left of the steering wheel under the instrument panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| PRNDL | Electronic PRNDL display (automatic transaxle) |
| F/P INJ | Fuel Pump, Fuel Injectors |
| STOP HAZ | Hazard/Stop Lights |
| CTSY | Power Door Locks, Power Mirrors, Cigar Lighter |
| AIR BAG | Supplemental Inflatable Restraint |
| INST. LPS | Interior Lights Dimming |
| GAUGES | Rear Window Defogger, Gauges, Warning Lights |
| HORN | Horn, Fog Lamps |
| ALARM | Chime, Interior Lights, Automatic Door Locks, Remote Lock Control |
| HTR-A/C | Heater, Air Conditioning, Anti-Lock Brakes (ABS), Daytime Running Lights (DRL) (Canada) |
| RDO | Radio |
| TURN | Turn Signals |
| DR LK | Automatic Door Locks |
| TAIL LPS | Fog Light, Tail Lights, Marker Lights, License Light |
| WDO | Power Windows, Sunroof (Circuit Breaker) |
| WIPER | Windshield Wipers/Washer |
| ERLS | Engine Controls, Back-up Lights |
| DR UNLK | Automatic Door Unlock (Remove to Disable) |
| FTP | Flash-to-Pass (U.S.) |
| ACC | Rear Window Antenna, Power Seats, Rear Window Defogger, Power Sunroof (Circuit Breaker) |
| AIR BAG | Supplemental Inflatable Restraint |
| PCM | Powertrain Control Module, Ignition System |
| CRUISE | Cruise Control |
| HDLP | Headlights (Circuit Breaker) |
