Oldsmobile Eighty Eight 1994 Fuse Box Info

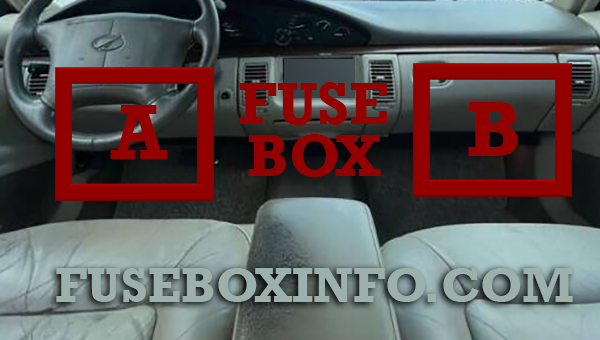

Passenger compartment fuse box location:
The instrument panel fuse box A is located to the left of the steering wheel, under the instrument panel. The instrument panel fuse box A is located in the relay center on the far right side, below the instrument panel.

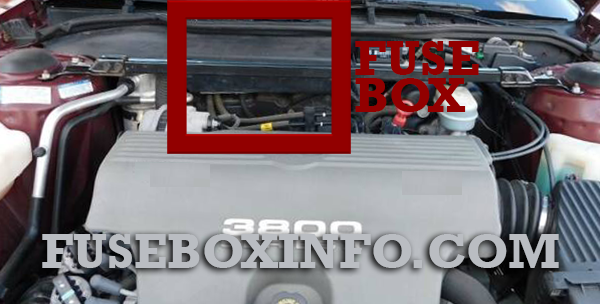

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A (Driver’s side):
| Fuse/Relay N° | Rating | Functions |
| A | 30A | Circuit Breaker-Power Window |
| B | - | Not Used |
| C | 25A | Power Seats |
| D | - | Not Used |
| E | - | Not Used |
| 1A | 10A | Start-up Signal - Air Bag |
| 2A | 10A | Spare |
| 3A | - | Not Used |
| 4A | 10A | Interior Lamps |
| 5A | 10A | Ignition (Run), Automatic A/C Control |
| 6A | 15A | Courtesy Lights, Power Mirrors |
| 7A | - | Not Used |
| 8A | - | Not Used |
| 9A | 15A | Cigar Lighter |
| 1B | 20A | Turn Signal, Back-up Lights, Cornering Lights, Brake Transaxle Shift Interlock |
| 2B | 15A | Spare |
| 3B | - | Not Used |
| 4B | - | Not Used |
| 5B | 10A | Anti-Lock Brake System |
| 6B | 20A | Brake and Hazard Lamps |
| 7B | - | Not Used |
| 8B | - | Not Used |
| 9B | - | Not Used |
| 1C | 10A | Air Bag |
| 2C | 20A | Spare |
| 3C | - | Not Used |
| 4C | - | Not Used |
| 5C | 10A | Cooling Fans, Transaxle |
| 6C | 15A | Parking Lamps |
| 7C | - | Not Used |
| 8C | - | Not Used |
| 9C | 10A | (Battery) Chime, Radio, Cluster |
| 1D | 15A | Ignition (Run/Crank), Chime, Cluster |
| 2D | 25A | Spare |
| 3D | - | Not Used |
| 4D | - | Not Used |
| 5D | 25A | Base A/C |
| 6D | - | Not Used |
| 7D | - | Not Used |
| 8D | 10A | Radio |
| 9D | - | Not Used |
| 1E | 20A | Auxiliary Outlet(s) |
| 2E | - | Not Used |
| 3E | 10A | Ignition (Off/Unlock) |
| 4E | - | Not Used |
| 5E | - | Not Used |
| 6E | - | Not Used |
| 7E | - | Not Used |
| 8E | 25A | Wipers, Washer |
| 9E | 30A | Rear Defog |
Passenger compartment fuse box B (Passenger’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Door Locks |
| 2 | 15A | Cruise Control, Misc. Engine Controls |
| 3 | - | Not Used |
| 4 | 15A | Power Antenna, Lock Switch |
| 5 | 20A | Fuel Pump |
| 6 | - | Not Used |
| 7 | 15A | Horns |
| 8 | 10A | Injectors |
| 9 | 10A | A/C Programmer |
| 10 | - | Not Used |
| 11 | 10A | Powertrain Control Module, PASS-Key II |
| 12 | - | Not Used |
