Scion xD 2013 Fuse Box Info

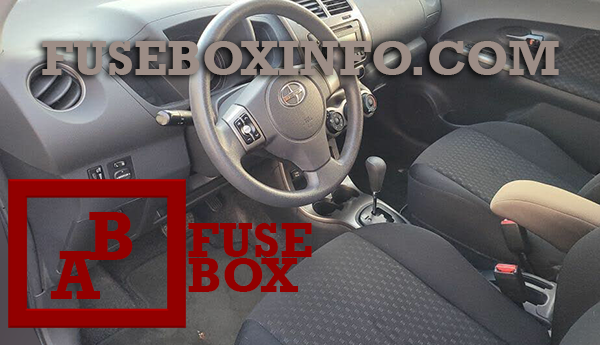

Passenger compartment fuse box location:
The fuse box A is located at the left side of the steering column, under the dashboard. The fuse box B is located at the left side of the steering column, behind the auxiliary box.

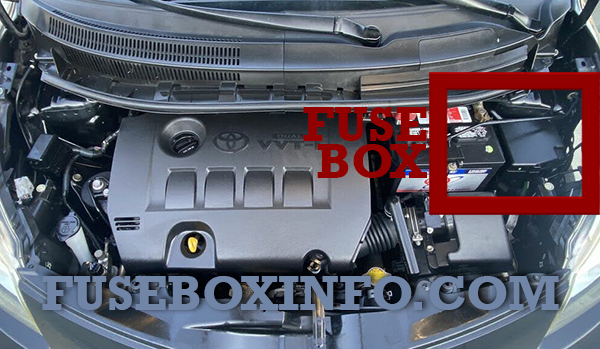

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° and Name | Rating | Functions |
| 1 TAIL | 10A | Tail lights, parking lights, license plate lights |
| 2 PANEL1 | 7.5A | Switch illuminations, instrument cluster lights, steering switches, gauges and meters |
| 3 A/C | 7.5A | Air conditioning system, rear window defogger |
| 4 D DOOR | 20A | Power windows |
| 5 RL DOOR | 20A | Power windows (rear left) |
| 6 RR DOOR | 20A | Power windows (rear right) |
| 7 CIG | 15A | Power outlet |
| 8 ACC | 7.5A | Outside rear view mirrors, clock |
| 9 ID/UP / MIR HTR* |
10A | Outside rear view mirror defoggers |
| 10 IGN | 7.5A | Multi-port fuel injection system/sequential multi-port fuel injection system |
| 11 MET | 7.5A | Gauges and meters |
| 12 WIP | 20A | Windshield wipers |
| 13 RR WIP | 15A | Rear window wiper |
| 14 WSH | 15A | Windshield washers, rear window washer |
| 15 ECU-IG | 10A | ABS, electric cooling fan, EPS |
| 16 GAUGE | 10A | Charging system, back-up lights, air conditioning system, gauges and meters |
| 17 OBD2 | 7.5A | On-board diagnosis system |
| 18 STOP | 10A | Stop lights, high mounted stoplight, multi-port fuel injection system/sequential multi-port fuel injection system, ABS, VSC, shift lock system |
| 19 D/L | 25A | Power door lock system |
| 20 FR FOG | 15A | No circuit |
| 21 AM1 | 25A | “ACC”, “CIG” fuses |
* Vehicles sold in Canada
Passenger compartment fuse box B:
| Fuse/Relay N° and Name | Rating | Functions |
| 1 ACC2 | 7.5A | No circuit |
| 2 DEF | 30A | Rear window defogger |
| 3 PWR | 30A | Power windows |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1 AM2 | 15A | Starting system, multi-port fuel injection system/sequential multiport fuel injection system |
| 2 HORN | 10A | Horn |
| 3 EFI | 20A | Multi-port fuel injection system/sequential multi-port fuel injection system |
| 4 SPARE | 30A | Spare fuse |
| 5 SPARE | 15A | Spare fuse |
| 6 SPARE | 10A | Spare fuse |
| 7 HTR SUB2 | 40A | Air conditioning system |
| 8 EPS | 50A | Electric power steering |
| 9 ABS1/VSC1 | 50A | ABS, VSC |
| 10 HTR | 40A | Air conditioning system |
| 11 RDI | 30A | Electric cooling fan |
| 12 HTR SUB1 | 30A | Air conditioning system |
| 13 H-LP CLN/PWR HTR |
30A | Air conditioning system |
| 14 FR DEF | 20A | No circuit |
| 15 ABS2/VSC2 | 30A | ABS, VSC |
| 16 H-LP MAIN | 30A | No circuit |
| 17 ST | 30A | Starting system |
| 18 S-LOCK | 20A | No circuit |
| 19 DOME | 15A | Interior light, personal lights, luggage compartment light |
| 20 ECU-B | 7.5A | SRS airbag system, power windows, gauges and meters, air conditioning system |
| 21 ALT-S | 7.5A | Charging system |
| 22 ETCS | 10A | Multi-port fuel injection system/sequential multi-port fuel injection system |
| 23 HAZ | 10A | Turn signal lights, emergency flashers |
| 24 AMT | 50A | No circuit |
| 25 H-LP RH/H-LP LO RH |
10A | Right-hand headlight |
| 26 H-LP LH/H-LP LO LH |
10A | Left-hand headlight |
| 27 EFI2 | 10A | Multi-port fuel injection system/sequential multi-port fuel injection system |
