Genesis G80 2025 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

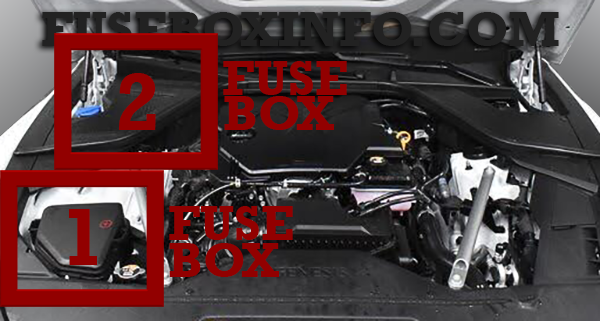

Engine compartment fuse box location:

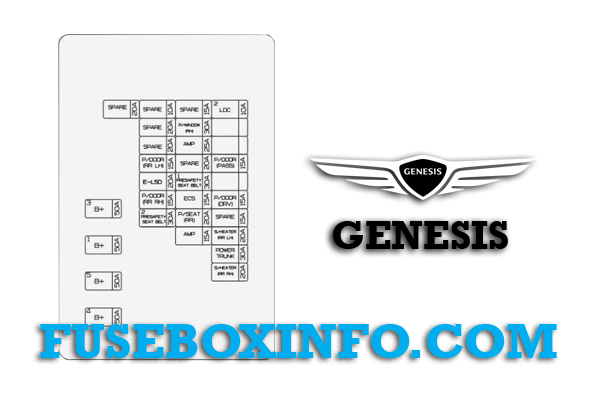

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| CURTAIN | 10A | BDC |
| ACTIVE AIR FLAP |
15A | Active Air Flap Module |
| A/C | 7.5A | E/R Sub Junction Block (LHD : RLY4 / RHD : RLY2), Incar Temperature Sensor, Front A/C Controller, A/C Control Module, Rear A/C Controller |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, BDC |
| MEMORY | 10A | BDC, Electro Chromic Mirror, Rear A/C Controller, Security Indicator, A/C Control Module, Mood Lamp Module, A/V Navigation Keyboard, Front A/C Controller, Console Mood Lamp LH/RH, Head-Up Display, Crash Pad Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp Unit, Rear Door Mood Lamp Unit LH/RH, Rear Console USB & AUX Jack Assembly [W/O ISG] Front Smart Phone Wireless Charger, ADAS Unit (Parking), Rear Corner Radar LH/RH |
| A/BAG IND | 7.5A | Over Head Console |
| PRESAFETY SEAT BELT 3 |
10A | Pre-Active Seat Belt Unit |
| MODULE 8 | 10A | Data Link Connector, Rain Sensor, Multifunction Switch, ICC Unit, Steering Tilt & Telescopic Unit |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Lever Dial |
| CCU | 10A | CCU |
| MEMORY 2 | 7.5A | Not Used |
| BDC 1 | 7.5A | BDC |
| MODULE 2 | 10A | CCU, Stop Lamp Switch |
| POWER HANDLE |
15A | Steering Tilt & Telescopic Unit |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTI MEDIA 1 | 25A | [With ISG] Low DC-DC Converter [W/O ISG] CCIC Head Unit |
| MODULE 4 | 10A | AMP, Driver/Passenger Power Seat Module, Rear Seat Console Remote Control Switch, ICC Unit, Front/Rear Smart Phone Wireless Charger, Armrest Heater Unit, UVC Lamp Unit, Data Link Connector, Low DC-DC Converter, Front/Rear A/C Controller, A/C Control Module, CCIC Head Unit A/V & Navigation Keyboard, Electro Chromic Mirror |
| CLUSTER | 7.5A | Front Monitor, Head-Up Display |
| SUNROOF | 20A | Sunroof Control Unit (Master/Slave) |
| MODULE 7 | 7.5A | 12 V Lithium Auxiliary Battery, Head Lamp LH/RH |
| POWER TRUNK |
10A | Trunk Open Relay |
| MODULE 5 | 10A | Driver Door Module, Multifunction Switch |
| E-SHIFTER 1 | 7.5A | Electronic ATM Shift Lever Dial |
| MODULE 1 | 10A | Armrest Lamp, Electronic ATM Shift Level Dial, DCU, CCU, BDC, Front Monitor, AMP, ADAS Unit (Parking), Rear Console USB Charger, Rear Seat Console Remote Control Switch [W/O ISG] CCIC Head Unit, Front Console Keyboard [With ISG] Low DC-DC Converter |
| POWER SEAT (PASS) |
25A | Passenger Power Seat Module |
| S/HEATER (DRV) |
25A | Driver Power Seat Module |
| WIPER | 10A | Multifunction Switch |
| AIR BAG 2 | 10A | SRS Control Module |
| BDC 2 | 10A | BDC, Bluetooth Unit #1/#2, UWB Antenna (Trunk), Driver/Passenger Door Outside Handle, Rear Door Outside Handle LH/RH, UWB Antenna (Front LH/RH), UWB Antenna (Rear LH/RH) |
| WIRELESS DCU |
10A | DCU |
| AIR BAG 1 | 10A | SRS Control Module, OCCUPANT_DETECTION SYSTEM |
| LDC | 10A | Front/Rear A/C Controller, Front Console Keyboard, Front/Rear Smart Phone Wireless Charger, Head-up Display, Front Corner Radar LH/RH, Rear Seat Console Remote Control Switch, Rear Console USB & AUX Jack Assembly |
| POWER SEAT (PASS 2) |
25A | Passenger Power Seat Module |
| S/HEATER (PASS) |
20A | Passenger Power Seat Module |
| MODULE 6 | 7.5A | BDC |
| ARMREST HTD |
15A | Armrest Heater Unit |
| MODULE 3 | 10A | Crash Pad Switch, ADAS Unit (Driving/Parking), LKAS Unit, Steering Tilt & Telescopic Unit, Front Console Switch, ECS Unit, RWS Module, ELSD Unit, Rear Corner Radar LH/RH |
| POWER SEAT (DRV) |
25A | Driver Power Seat Module |
| P/WINDOW LH |
30A | Rear Power Window Module LH [LHD] Driver Power Window Module [RHD] Passenger Power Window Module |
| MODULE 9 | 10A | Driver/Passenger Power Seat Switch, Driver/Passenger Power Seat Module, Driver Door Module, Driver/Passenger Power Outside Mirror, PTL Unit [LHD] E/R Sub Junction Block (RLY.2) [RHD] E/R Sub Junction Block (RLY.7) [CCS] Rear Seat LH/RH CCS Unit [Seat Heater] Rear Seat LH/RH Heater Unit [7 Cell] Driver/Passenger Lumbar Support Unit |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| POWER SEAT | 10A | [7 Cell] Driver/Passenger Lumbar Support Unit |
| POWER SEAT (DRV 2) |
25A | Driver Power Seat Module |
Engine compartment fuse box 1:
| Fuse/Relay Name | Rating | Functions |
| ALT | 225A | Alternator |
| MDPS1 | 125A | MDPS Unit |
| COOLING FAN |
100A | Cooling Fan Motor |
| REAR HEATED |
100A | Rear Heated Relay (RLY.5) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| IEB 3 | 50A | IEB Unit |
| OIL PUMP | 40A | Electronic Oil Pump |
| E-CVVT 1 | 40A | E-CVVT Relay (RLY.1) |
| AWD | 30A | AWD ECU |
| WIPER | 30A | Wiper Motor |
| HEAD LAMP LH |
40A | Head Lamp LH |
| START | 30A | Start Relay (RLY.2) |
| HEAD LAMP RH |
40A | Head Lamp RH |
| B+2 | 40A | PDC (IPS 11, IPS 12) |
| MODULE 1 | 10A | Not Used |
| FUEL PUMP | 20A | Fuel Pump Relay (RLY.4) |
| ECU 1 | 15A | ECM |
| TCU 1 | 20A | TCM |
| POWER OUTLET |
20A | Armrest Power Outlet |
| E-CVVT 2 | 20A | ECM |
| E-CVVT 3 | 20A | ECM |
| A/C | 15A | A/C Relay (RLY.3) |
| HORN | 15A | PCB Block (Horn Relay) |
| ACTIVE HOOD 2 |
10A | Not Used |
| EWP | 20A | Electronic Water Pump |
| ECU 2 | 10A | ECM |
| SENSOR 5 | 10A | Electronic Oil Pump |
| MODULE 2 | 10A | Front Corner Radar LH/RH, AWD ECU, Front Radar |
| IEB 4 | 10A | IEB Unit |
| MDPS 2 | 10A | MDPS Unit |
| TCU 2 | 15A | P/N Relay, TCM |
| ACTIVE HOOD 1 |
10A | Not Used |
| SENSOR 2 | 10A | [G4KR] E/R Junction Block (RLY.3), Oil Control Valve (Exhaust), Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Valve [G6DS] E/R Junction Block (RLY.3), RCV Control Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Pump Solenoid Valve, Oxygen Sensor #3/#4, Oil Control Valve #1~#4, Canister Close Valve |
| SENSOR 3 | 10A | [G4KR] Oxygen Sensor (Up/Down) [G6DS] Oxygen Sensor #1~#2 |
| IGN COIL | 15A | [G4KR] Ignition Coil #1~#4 [G6DS] Ignition Coil #1~#6 |
| SENSOR 1 | 10A | [G4KR] Injector #1~#4, E/R Junction Block (RLY.4) [G6DS] Injector #1~#6(MPI), E/R Junction Block (RLY.4) |
| ECU 4 | 20A | ECM |
| SENSOR 4 | 15A | Cooling Fan Motor |
| WASHER | 15A | Washer Relay |
| IG 1 | 30A | IG1 Relay |
| ECU 3 | 30A | Engine Control Relay |
| IG 2 | 30A | IG2 Relay |
| ACC | 30A | ACC Relay |
Engine compartment fuse box 2:
| Fuse/Relay Name | Rating | Functions |
| BLOWER 1 | 50A | Blower 1 Relay (RLY.2) |
| BLOWER 2 | 20A | Blower 2 Relay (RLY.5) |
Luggage compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| B+3 | 50A | PDC (Fuse - F1/F2/F9/F10/F17/F25/F33/F34/F43/F44/F51/F52/F59) |
| B+1 | 50A | IPS4, IPS5, IPS6, IPS7 |
| B+5 | 50A | PDC (Fuse - F36/F38/F49/F53/F56) |
| B+4 | 50A | PDC (Fuse - F4/F12/F20/F28/F37/F54), IPS13, Long Term Load Latch Relay |
| LDC 2 | 10A | Rear Corner Radar LH/RH, ADAS Unit (Parking) |
| P/WINDOW RH |
30A | Driver/Passenger Power Window Module, Rear Power Window Module RH |
| AMP | 25A | [W/O ISG] AMP [With ISG] Low DC-DC Converter |
| POWER DOOR (RR LH) |
15A | Rear Door Latch LH |
| POWER DOOR (PASS) |
15A | Passenger Door Latch |
| e-LSD | 20A | e-LSD Unit |
| PRESAFETY SEAT BELT 1 |
30A | Pre-Active Seat Belt Unit |
| POWER DOOR (RR RH) |
15A | Rear Door Latch RH |
| ECS | 15A | ECS Unit |
| POWER DOOR (DRV) |
15A | Driver Door Latch |
| PRESAFETY SEAT BELT 2 |
30A | Pre-Active Seat Belt Unit |
| POWER SEAT (RR) |
20A | Not Used |
| AMP | 15A | Not Used |
| SEAT HEATER (RR LH) |
20A | [CCS] Rear Seat LH CCS Unit [Seat Heater] Rear Seat LH Heater Unit |
| POWER TRUNK |
30A | PTL Unit (Power Trunk Lid) |
| SEAT HEATER (RR RH) |
20A | [CCS] Rear Seat RH CCS Unit [Seat Heater] Rear Seat RH Heater Unit |
Battery box fuse panel:
| Fuse/Relay Name | Rating | Functions |
| B+9 | 125A | E/R Junction Block (B+) |
| B+6 | 100A | Rear Junction Block (Fuse - SB3/F6/F9/F15/F18/F21/F23) |
| B+7 | 100A | Rear Junction Block (Fuse - SB4/F13/F19/F24/F25/F26) |
| B+8 | 100A | Rear Junction Block (Fuse - SB1/SB2/F11/F14/F17/F20) |
| AMS | 10A | Battery Sensor |
| AUX BATT | 50A | 12 V Lithium Auxiliary Battery |
| RWS | 100A | RWS Module |
