Genesis Electrified GV70 2026 Fuse Box Info

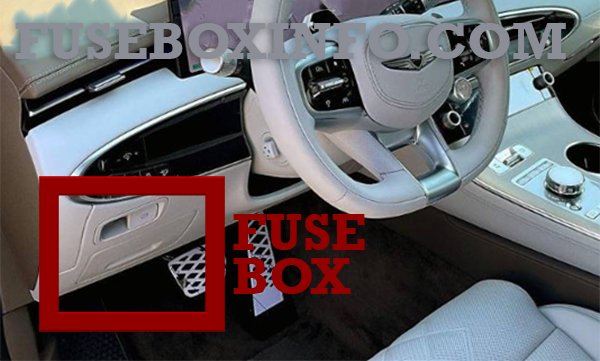

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

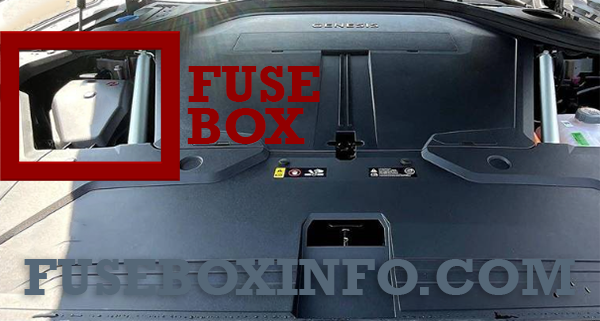

Under hood compartment fuse box location:

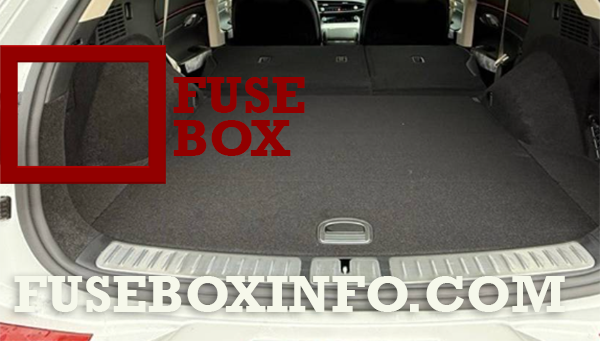

Luggage compartment fuse box location:
Fuse Box Diagram | Layout

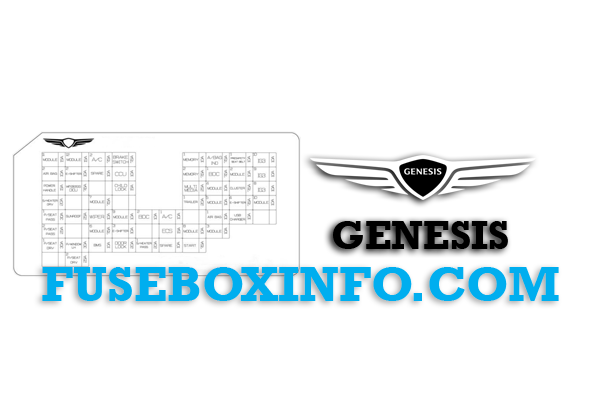

Passenger compartment fuse box:
| Fuse/Relay | Rating | Functions |
| MODULE11 | 15A | CDM Assembly |
| MODULE12 | 15A | Active Air Flap Module, VESS Unit |
| A/C2 | 7.5A | Front A/C Controller, A/C Control Module |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, BDC |
| MEMORY1 | 10A | BDC, Console Mood Lamp, Mood Lamp Unit (Master), CDCU, Driver/Passenger Mood Lamp, Front Monitor, Security Indicator, Smart Phone Wireless Charger, Driver/Passenger Door Mood Lamp #1/2, Rear Door Mood Lamp LH/RH #1/2, ADAS Unit (Parking) Rear Corner Radar LH/RH |
| A/BAG IND | 7.5A | Overhead Console Lamp |
| PRESAFETY SEAT BELT1 |
10A | Pre-Active Seat Belt Unit |
| IG3 10 | 10A | BMU, SCU, Inverter (Rear) |
| AIR BAG2 | 10A | SRS Control Module |
| E-SHIFTER2 | 10A | Electronic Atm Shift Lever Dial |
| SPARE (1G2) | 10A | Standby Power (IG2) |
| CCU | 10A | CCU |
| MEMORY2 | 7.5A | Front/Rear A/C Controller, Front Console Keyboard, A/C Control Module, Head-Up Display |
| BDC1 | 7.5A | BDC |
| MODULE2 | 10A | CCU, Stop Lamp Switch |
| IG3 9 | 10A | CCIC Head Unit, Front Monitor |
| POWER HANDLE |
15A | Steering Tilt & Telescopic Unit |
| wireless DCU | 7.5A | DCU |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTIMEDIA | 25A | CCIC Head Unit |
| MODULE4 | 10A | Smart Phone Wireless Charger, AMP, Data Link Connector, ICC Unit, CCIC Head Unit, Electro Chromic Mirror, Overhead Console Lamp, Front Console Switch, Driver/Passenger Power Seat Module, Inverter (Rear), CCIC Keyboard |
| CLUSTER | 7.5A | Head-Up Display, Front Monitor |
| IG3 8 | 10A | A/C Control Module, A/C PTC Heater (Sensor), Front/Rear A/C Controller, Incar Temperature Sensor |
| S/HEATER DRV | 20A | Driver Power Seat Module |
| MODULE7 | 7.5A | Head Lamp LH/RH |
| TRAILER1 | 20A | Electronic Brake Controller |
| MODULE5 | 10A | Driver Door Module, Multifunction Switch |
| E-SHIFTER4 | 7.5A | Electronic ATM Shift Lever Dial, SCU |
| MODULE10 | 10A | Front Monitor, CCU, DCU, Armrest Lamp, AMP, Electronic ATM Shift Lever Dial, CCIC Head Unit, BDC, Front Console Keyboard, ADAS Unit (Parking), P/R Junction Block (Power Outlet Relay) |
| P/SEAT PASS1 | 30A | Passenger Power Seat Switch/Module |
| SUNROOF | 25A | Sunroof Control Unit (Master) |
| WIPER | 10A | Multifunction Switch, Rear Junction Block (Rear Wiper Relay) |
| MODULE9 | 10A | Data Link Connector, Steering Tilt & Telescopic Unit, Driver/Passenger Power Outside Mirror, Driver/Passenger Power Seat Module, Driver/Passenger Power Seat Switch, Power Tailgate Module, Driver Door Module |
| BDC2 | 10A | BDC, Bluetooth Unit (Master/Slave), Driver/Passenger Door Outside Handle, Rear Door Outside Handle LH/RH, UWB ANtenna (Front LH/RH, Rear LH/RH) |
| A/C1 | 10A | A/C Control Module, P/R Junction Block (Blower Relay) |
| AIR BAG1 | 10A | SRS Control Module, Passenger Occupant Detection Sensor |
| USB CHARGER | 10A | Rear USB Charger |
| P/SEAT PASS2 | 25A | Passenger Power Seat Switch/Module |
| MODULE6 | 7.5A | BDC |
| E-SHIFTER3 | 10A | SCU |
| ECS | 15A | ECS Unit |
| MODULE8 | 10A | Multifunction Switch, Rain Sensor, ICC Unit |
| MODULE3 | 10A | LKAS Unit, CDCU, ECS Unit, Crash Pad Switch, Steering Tilt & Telescopic Unit, Rear Corner Radar LH/RH, ADAS Unit (Driving/Parking) |
| P/SEAT DRV1 | 30A | Driver Power Seat Module/Switch |
| P/WINDOW LH | 30A | Rear Power Window Module LH, Driver Power Window Module |
| BMS | 10A | BMU |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, Two Turn Unlock Relay |
| S/HEATER PASS1 | 20A | Passenger Power Seat Module |
| SPARE (B+) | 10A | Standby Power (B+) |
| START | 7.5A | BDC, VCU |
| P/SEAT DRV2 | 25A | Driver Power Seat Module/Switch |

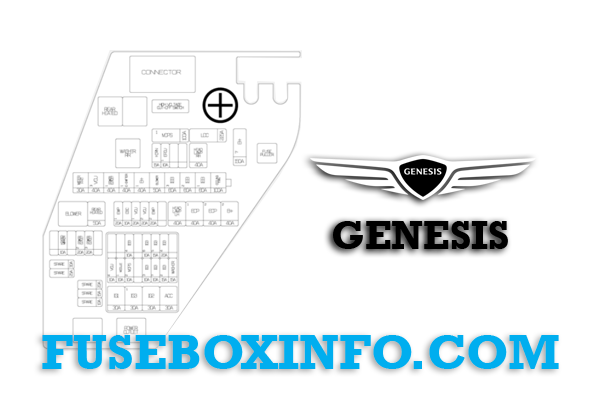

Under hood compartment fuse box:
| Fuse/Relay | Rating | Functions |
| MDPS1 | 100A | MDPS Unit |
| LDC | 255A | ICCU |
| B+7 | 150A | P/R Junction Block (Fuse - B+2, HEAD LAMP RH/LH, EOP1/2, HORN, EWP2, OBC, REAR HEATED, EPCU1, VCU1/2) |
| WIPER FRT | 30A | Front Wiper Motor |
| VCU3 | 40A | VCU |
| POWER OUTLET1 |
40A | Power Outlet Relay (RLY.6) |
| E-SHIFTER1 | 40A | SCU |
| B+1 | 40A | PDC (IPS4, IPS5, IPS6, IPS7) |
| BLOWER | 50A | Blower Relay (RLY.4) |
| IEB3 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| IEB1 | 60A | IEB Unit |
| COOLING FAN | 100A | Cooling Fan Motor |
| HEAD LAMP RH |
40A | Head Lamp RH |
| REAR HEATED | 50A | Rear Heated Relay (RLY.1) |
| HEAD LAMP LH |
40A | Head Lamp LH |
| EOP1 | 40A | Traction Motor Oil Pump (Front) |
| EOP2 | 40A | Traction Motor Oil Pump (Rear) |
| B+2 | 40A | PDC (IPS11, IPS12) |
| HORN | 15A | PCB Block (Horn Relay) |
| EPCU1 | 10A | Inverter (Front) |
| EWP1 | 20A | Electronic Water Pump (Reservoir) |
| OBC | 10A | ICCU, VCMS |
| VCU1 | 20A | VCU |
| VCU2 | 20A | VCU |
| EWP2 | 20A | Electronic Water Pump (BSA) |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror |
| POWER OUTLET2 |
20A | Luggage Power Outlet |
| POWER OUTLET3 |
20A | Front Power Outlet |
| IG1 | 30A | IG1 Relay |
| IG3 1 | 30A | IG3 Relay |
| IG2 | 30A | IG2 Relay |
| ACC | 30A | ACC Relay |
| VCU4 | 10A | VCU |
| MODULE1 | 10A | Front Radar, Inverter (Front), Front Corner Radar LH/RH |
| MDPS2 | 10A | MDPS Unit |
| IEB4 | 10A | IEB Unit |
| IG3 3 | 10A | ICCU, CDM Assembly, CCU, VCMS, V2L Unit |
| IG3 6 | 10A | Cooling Fan Motor, Coolant Valve, Electronic A/C Compressor, Coolant 3way Valve (BSA), Traction Motor Oil Pump (Front/Rear) |
| IG3 7 | 10A | VCU, Inverter (Front) |
| IG3 5 | 15A | Electronic Water Pump (PEM) |
| IG3 2 | 15A | Electronic Water Pump (Reservoir/BSA) |
| IG3 4 | 20A | PDC (Fuse - IG3 8/9/10) |
| WASHER | 15A | Washer Relay, P/R Junction Block (Rear Washer Relay - RLY.3) |

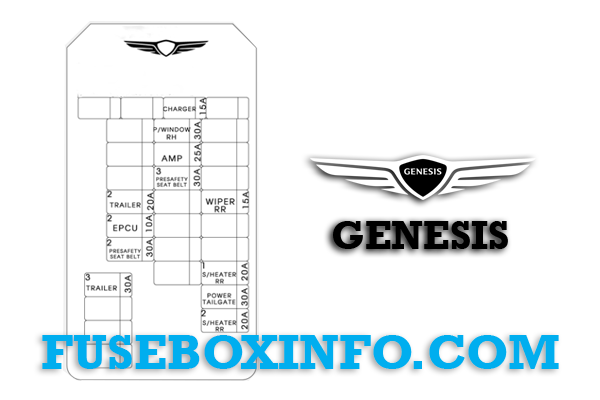

Luggage compartment fuse box::
| Fuse/Relay | Rating | Functions |
| TRAILER3 | 30A | Trailer Connector |
| CHARGER | 15A | Charging Connector Lock/Unlock Relay |
| POWER WINDOW RH |
30A | Rear Power Window Module RH Passenger Power Window Module |
| AMP | 25A | AMP |
| PRESAFETY SEAT BELT3 |
30A | Pre-Active Seat Belt Unit |
| TRAILER2 | 20A | Trailer Connector |
| WIPER RR | 15A | Rear Wiper Motor |
| EPCU2 | 10A | Inverter (Rear) |
| PRESAFETY SEAT BELT2 |
30A | Pre-Active Seat Belt Unit |
| S/HEATER RR1 | 20A | Rear Seat Warmer Control Module |
| POWER T/GATE | 30A | Power Tailgate Module |
| S/HEATER RR2 | 20A | Rear Seat Warmer Control Module |
Battery fuse box panel:
| Fuse/Relay | Rating | Functions |
| AUX BATT | 50A | |
| B+5 | 50A | PDC (Fuse - MODULE8, BMS, E-SHIFTER3, A/C1, MODULE9, TRAILER1, ESC, SPARE (B+)) |
| B+3 | 50A | PDC (Fuse - F1/F2/F9/F10/F17/F18/F25/F33/F34/F43/F51/F52/F59) |
| B+4 | 50A | PDC (IPS13, Long Term Load Latch Relay (Fuse - MEMORY2, MEMORY1, MULTI MEDIA) Fuse - CHILD LOCK, BRAKE SWITCH, CCU, DOOR LOCK, S/HEATER PASS1, BDC2 |
| AMS | 10A | 12V Battery Sensor |
| B+6 | 100A | Rear Junction Block (Fuse - R/WINDOW RH, PRESAFETY SEAT BELT2/3, AMP, POWER TAILGATE, TRAILER1/2) |
