Wacker Neuson Track Excavator 1404 Fuse Box Info

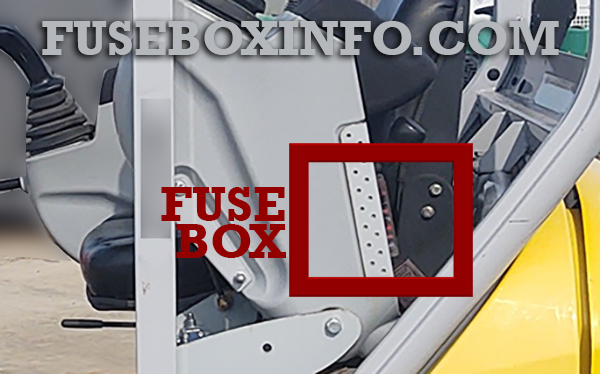

Cabin compartment fuse box location:
The cabin fuse box is located on left-hand control lever base.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F2 | 10A | Fuse: relay, indicator, cutoff solenoid |
| F3 | 10A | Boom working light fuse |
| F4 | 15A | Cab working light fuse |
| F5 | 10A | Fuse: valves, horn, travel alarm (option) |
| F6 | 15A | Heating fuse |
| F7 | 10A | Wiper and interior light fuse |
| F8 | 10A | Rotating beacon, radio and travel interlock fuse |
| F9 | 15A | Socket and 12V power outlet fuse |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F1 | 40A | Main fuse: air-pressure sensor/power adaptation (Yanmar 3TNV80F-SSNS1) |
| K6 | - | Preheating time lag relay |
| K7 | - | Start switching relay |
| K8 | - | Cutoff solenoid time lag relay 1s |
| K9 | - | Cutoff solenoid switching relay |
