KTM 200 Duke 2024 Fuse Box Info
Fuse box location:

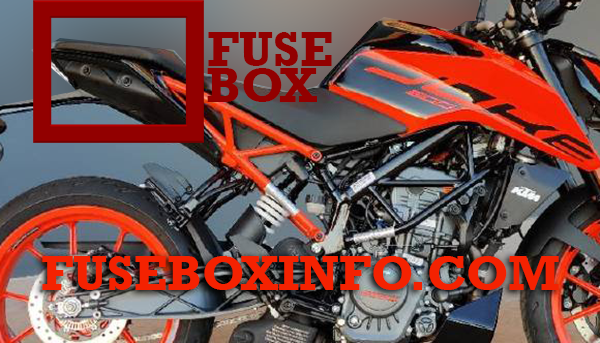

The fuse box is located under the passenger seat.
Fuse Box Diagram | Layout - (Duke with ABS):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not assigned |
| 2 | 10A | Combination instrument |
| 3 | 10A | Power relay |
| 4 | 15A | Ignition coil, fuel pump relay, starter relay, horn |
| 5 | 10A | Radiator fan |
| 6 | 15A | Brake light, turn signal, high beam, low beam, position light, tail light, license plate lamp |
| 7 | 10A | ABS control unit, CAN bus, combination instrument |
| 8 | 10A | Emergency OFF switch |
| 9 | 10A | ACC1 |
| 10 | 10A | ACC2 |
| SPARE | 10/15/30A | Spare fuses |
Main fuse is located in its own fuse box near the fuse box.
Two fuses for the ABS are located under the passenger seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Fuse Box Diagram | Layout - (Duke without ABS):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not assigned |
| 2 | 15A | Combination instrument |
| 3 | 15A | Power relay, Fuel pump |
| 4 | 15A | Ignition coil, Alarm system (OPTIONAL) |
| 5 | 10A | Radiator fan |
| 6 | 15A | Horn, brake light, turn signal, high beam, low beam, position light, tail light, license plate lamp, diagnostics connector |
| 7 | - | Not assigned |
| 8 | 10A | EFI control unit |
| 9 | 10A | Ignition positive for auxiliary equipment (ACC2 front) |
| SPARE | 10/15/30A | Spare fuses |
Main fuse (30A) is located in its own fuse box near the fuse box.
