Yamaha FJR 1300 A 2004 Fuse Box Info
Fuse box location:

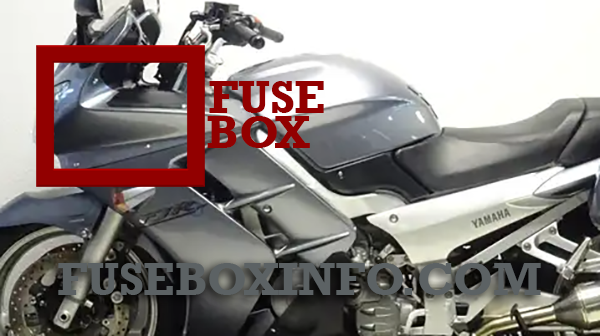

The fuse box is located under the panel, on the left side.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Headlight fuse |
| 2 | 15A | Signaling system fuse |
| 3 | 10A | Ignition fuse |
| 4 | 2A | Windshield motor fuse |
| 5 | 15A | Radiator fan fuse |
| 6 | 10A | Odometer and clock fuse (backup fuse) |
| 7 | - | Spare fuse |
| 8 | 7.5A | Hazard fuse |
| 9 | 7.5A | ABS control unit fuse |
| 10 | 10A | Tail/position light fuse |
Main fuse (50A) and Electronic fuel injection fuse (15A) are located under panel on the right side, beside the battery.
