Yamaha Road Star Midnight 2007 Fuse Box Info

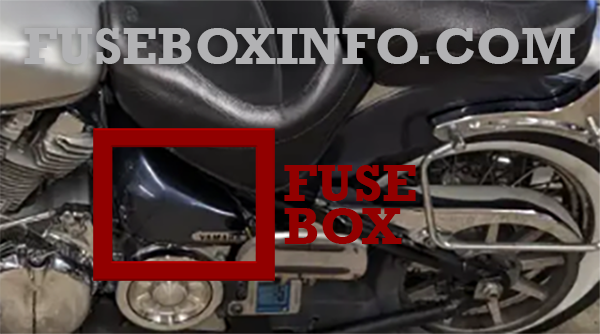

Fuse box location:
The fuse box is located behind panel.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Signaling system fuse |
| 2 | 15A | Ignition fuse |
| 3 | Headlight fuse: | |
| 20A | XV17AMW | |
| 20A | XV17AMWC | |
| 20A | XV17ATMW | |
| 20A | XV17ATMWC | |
| 20A | XV17ATW | |
| 20A | XV17ATWC | |
| 15A | XV17AWW | |
| 15A | XV17AWWC | |
| 4 | 10A | Carburetor heater fuse |
| 5 | Backup fuse (for odometer and clock): | |
| 10A | XV17AMW | |
| 10A | XV17AMWC | |
| 10A | XV17ATMW | |
| 10A | XV17ATMWC | |
| 10A | XV17ATW | |
| 10A | XV17ATWC | |
| 5A | XV17AWW | |
| 5A | XV17AWWC | |
| 6 | - | Spare fuse |
The main fuse (30A) and spare main fuse are located near to the fuse box.
